Summary of Contents for Vanderbilt WPIR-EXT

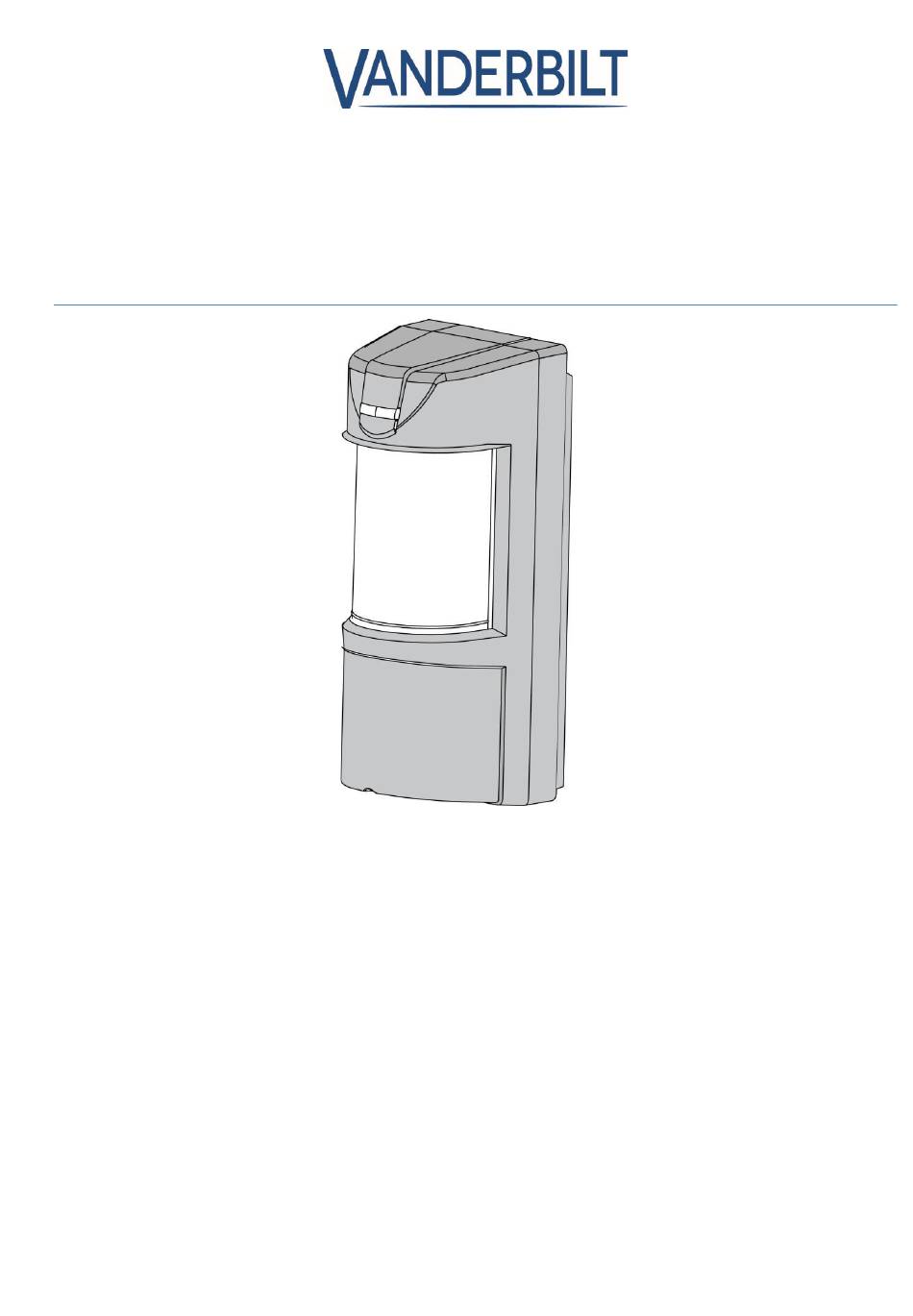

- Page 1 WPIR-EXT Two Way Wireless Outdoor Double PIR Detector with Anti-masking INSTALLATION INSTRUCTIONS & USER MANUAL Edition Date: 01.11.2021 Doc ID: I-200478...
- Page 2 Installation Instructions/User Manual Data and design subject to change without notice. / Supply subject to availability. © 2021 Copyright by Vanderbilt We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges...
-
Page 3: Table Of Contents
WPIR-EXT Installation Instructions/User Manual TABLE OF CONTENTS Contents Introduction ................................3 Features ..................................3 Operation ................................... 4 Assembly Description ..............................5 Installation and Discovery & Enrollment Process ......................7 Select Mounting Location ..............................7 Detector Installation..............................8 Discovery & Enrollment Process..........................9 Settings &... -
Page 4: Introduction
The WPIR-EXT is designed to protect large areas and can easily be installed on walls to provide a solid protection of the area while rejecting interference from birds and small animals due to “PET MASK” optics. -
Page 5: Operation
WPIR-EXT Installation Instructions/User Manual 3. Operation This WPIR-EXT detector transmits the following events data: • SUPERVISION– A periodical transmission (configurable) indicating detector’s presence. • ALARM – Alarm transmission triggered by the device indicating Motion detection. The Red LED will blink once. -
Page 6: Assembly Description
Installation Instructions/User Manual 4. Assembly Description The WPIR-EXT is a robust detector which includes indication LED prism that can be easily observed from long distance. Having a back metal bracket, the WPIR-EXT can be easily mounted to walls and poles using mounting screws (supplied) or Jubilee clips/metal bands (supplied). - Page 7 WPIR-EXT Installation Instructions/User Manual Front view Back view with battery LED Detector Battery Cover Upper PIR Element Back Tamper Switch (Removal) Anti-Mask Sensor Lower PIR Element Dip Switches Front Tamper Switch (Opening) Edition Date: 26.07.2021 Doc ID: I-200478...
-
Page 8: Installation And Discovery & Enrollment Process
5. Installation and Discovery & Enrollment Process Select Mounting Location The installation of the WPIR-EXT requires a flat and secure mounting surface for the detector to perform correctly. The protected area must be free from obstacles like walls, fences, trees, ditches, and other microwave detectors, as well as systems of anti-intrusion surveillance. -
Page 9: Detector Installation
WPIR-EXT Installation Instructions/User Manual 6. Detector Installation Important! Before installing the WPIR-EXT, read “Select mounting location” section carefully. 1. The detector must be installed in such manner The detector must be installed at height of 0.8m that the intruder is most likely to cross the to 1.5m... -
Page 10: Discovery & Enrollment Process
2. Unscrew the detector unit from the back metal bracket and remove the detector from the bracket by tilting it. 3. Remove the battery cover 4. Discover the WPIR-EXT detector from the SPC control panel or from the keypad. To discover the WPIR detector from the SPC control panel: In the SPC browser, select Configuration>Wireless... - Page 11 WPIR-EXT Installation Instructions/User Manual 5. Close the battery cover *DISCOVERY FAILED Remove the batteries, wait for around 10 seconds, and repeat the process. Edition Date: 26.07.2021 Doc ID: I-200478...
-
Page 12: Settings & Adjustments
In order to change the detection beam direction, rotate the internal detection element housing to the desired direction. Detection range setting The WPIR-EXT detection range may vary between 3m and 12m, while installed on 1.2m height above the ground surface. -
Page 13: Dip Switch Functions
WPIR-EXT Installation Instructions/User Manual Dip Switch Functions There are 5 DIP switches on the WPIR-EXT board that enable settings of following functions: ON = ENABLE Factory default positions PIR Sensitivity LED Indication Anti-Mask Activation Buzzer Audio OFF = DISABLE Switches 1 & 2 – PIR ELEMENTS SENSITIVITY SETTING Use the following combinations for setting PIR upper and lower element sensitivity control according to the environment. -
Page 14: Test Procedure
WPIR-EXT Installation Instructions/User Manual 9. Test procedure Walk Test Procedure: Allow 3 minutes of warm up time. Make sure that the protected area is cleared of all people. Initialize the "Walk test" mode on your control panel. Start walking across the detection zone. -
Page 15: Specifications
10. Specifications Specifications are subject to change without prior notice. Article number V54538-F124-A100 Short Description WPIR-EXT AM Wrls. Ext PIR c/w pet Detection Method Double PIR Elements with optional Anti-masking feature 90⁰ with 30 zones detection WA Detection Pattern Data Protocol...
