Preparing the Cabinet for Use
Parts List
(2) Shelves plus (1) Floor rack-per door.
■
Shelf Clips.
■
Suggested Tools
#2 Phillips Screwdriver.
■
10" Crescent Wrench.
■
9 " allen Wrench.
■ /
16
5 " and 3 " hex Socket.
/ /
■
16 8
Power Drill or Driver.
■

Plumbing

Condensate from the cooling coil is automatically
evaporated through a condensate pan located in the
condensing unit housing. each unit is also equipped
with a floor drain located in the right rear corner
of the cabinet. the drain can be plumbed to an
external floor drain by connecting to the
thread out the side or the 1" nPS thread out the
bottom. both drains ports come plugged from the
factory and can be removed if needed.

Electrical

the cabinet must be connected to a separately
fused power source (see electrical specification
plate) and grounded in accordance with national
and Local electrical Codes. Caution: Do not
attempt to operate the equipment on any other
power source than that listed on the electrical
Specification plate.
Uncrating and Inspecting
remove all crating material before operating.
Carefully inspect cabinet for hidden damage. if
damage is discovered, file your claim immediately
with the transportation company. Perlick is
not responsible for damage in transit.

Installing Casters or Legs

attach four casters to the cabinet bottom; rigid cast-
ers at the rear and swivel casters on the front. Use
the supplied 1 "- 20 x 3
/
4
machine screws.
Perlick is committed to continuous improvement. therefore, we reserve the right to change specifications without prior notice.
3
⁄ " nPt
4
(Optional)
" hex head self-tapping
/
4
Placing the Cabinet
Position the cabinet into place using rollers when
necessary. Important: Proper air flow around the
condensing unit is necessary for efficient operation.
never obstruct the air flow in and out of the
condensing unit.

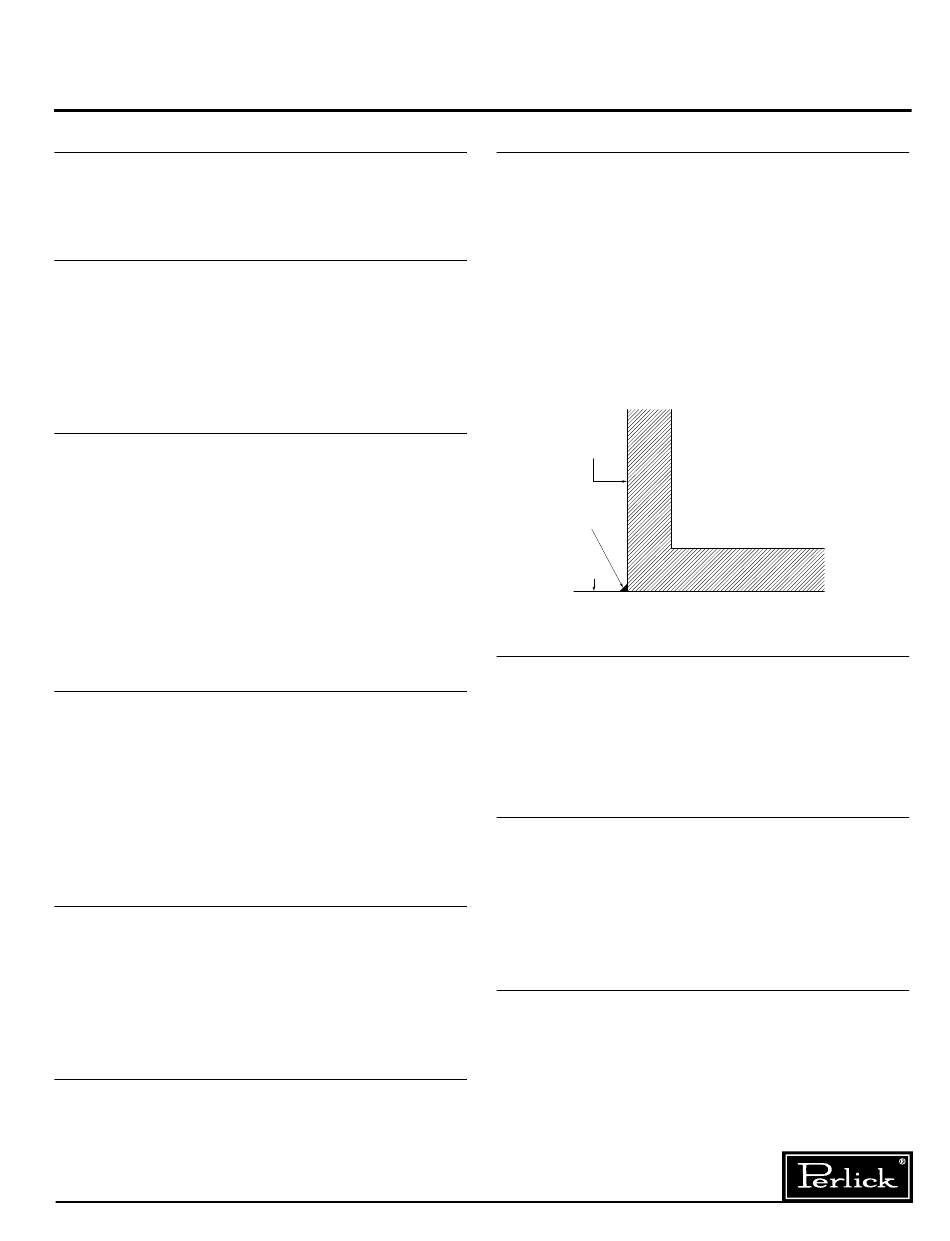

For sanitation purposes, it may be necessary to
seal the base of the cabinet to the floor. this can be
accomplished by laying a bead of silicone sealant
between the base of the cabinet and the floor as
shown by the figure at below.
Cabinet
beaD SiLiCOn
SeaLer (rtV)
FLOOr
Leveling the Cabinet
When the cabinet is in place, check installation with
carpenter's level. When level front to back and left
to right, accumulated water will drain out of cabinet
evaporator drain.
Installing base Plate
attach brackets to cabinet bottom in holes pro-
vided. attach base plate to brackets. (See separate
instructions, provided with kit). When returning
cabinet to upright position, be careful not to bend
brackets.
WARNING!
To avoid compressor damage,after returning
cabinet to an upright position, let unit stand for
24 hours before plugging it in and running the unit.
3
(Optional)
Form no. Z2281
rev. 04.23.10
