JessEm Rout-R-Fence II Quick Start Manual page 7

Adjusting the Fence Faces and Bit Guard
To optimize work piece support and to maximize safety,
the fence faces will have to be adjusted before using the
fence.
1. With your fence located where you intend to use
it, loosen the four knobs shown in figure 3.
2. Slide the fence faces until they create a small gap
around your bit and retighten the four knobs.
3. To ensure safe operation and to prevent damage
to your fence faces, ensure the fence faces clear
the diameter of the router bit before starting the
motor.
Once the fence faces are set, it is important to set the bit
guard height. This is done by loosening the bit guard
height adjustment knobs and sliding it up or down before
retightening.
Squaring Fence Face to Table
This fence will arrive pre-squared from the factory;
however, several factors can cause it to go out of square.
It is relatively easy to adjust the fence back to square if
needed following the steps below:
1. Loosen all six of the ¼"-20 jam nuts
2. Using a square, determine where the fence has to
be adjusted and use the ¼"-20 set screws to
adjust it one way or the other
3. Holding the set screw in place with a hex key,
retighten the jam nut to lock the set screw
position in place.
4. Repeat along the length of the fence until all six
set screws are locked in position and the fence is
square to the table top.
JessEm.com

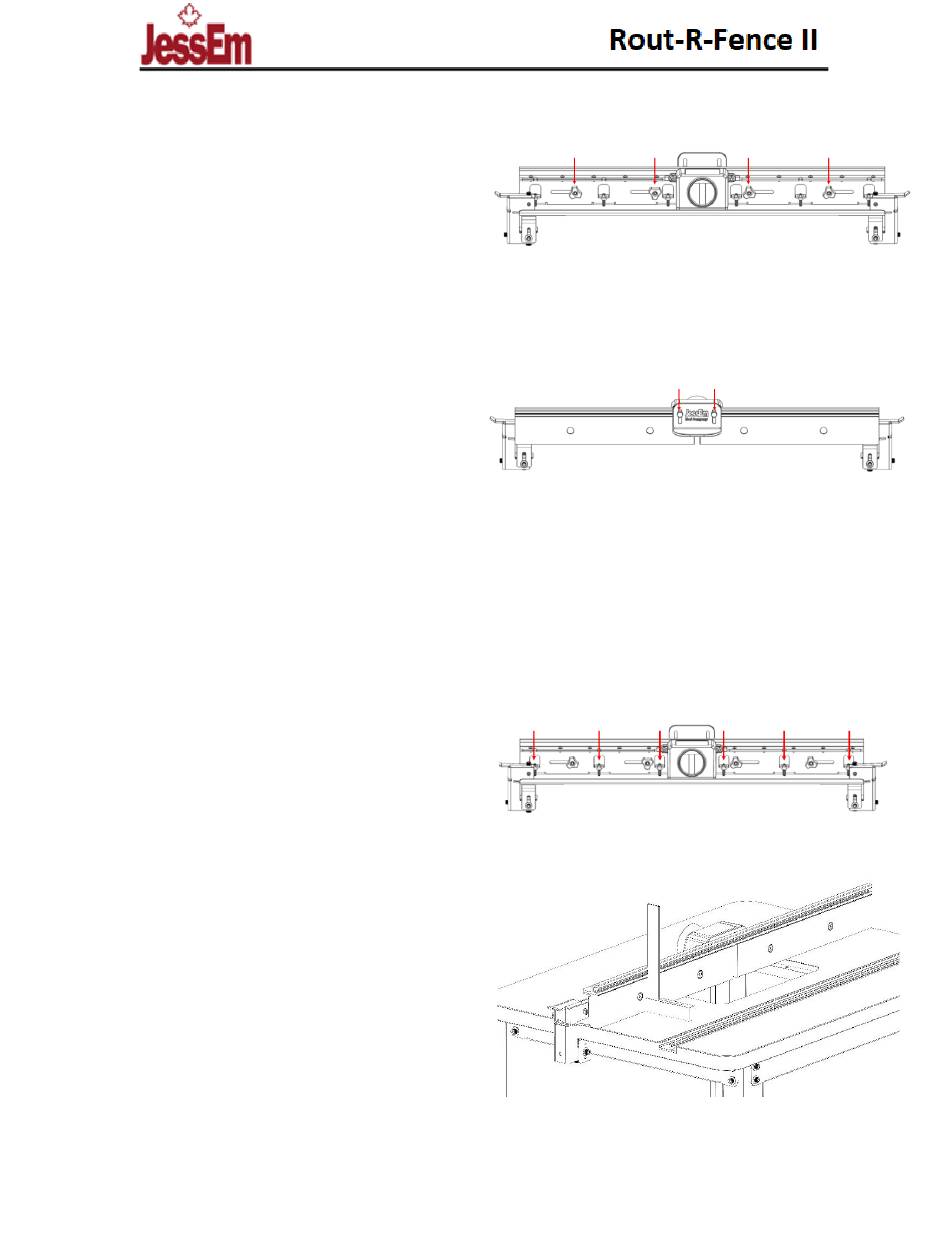

Figure 3 – Knobs to adjust fence faces
Figure 4 – Bit guard adjustment knobs
Figure 5 – Set screw locations for squaring fence
Figure 6 – Checking Fence Faces
FOR TECHNICAL SUPPORT CALL 1-800-436-6799
