Summary of Contents for Cembre B15MA

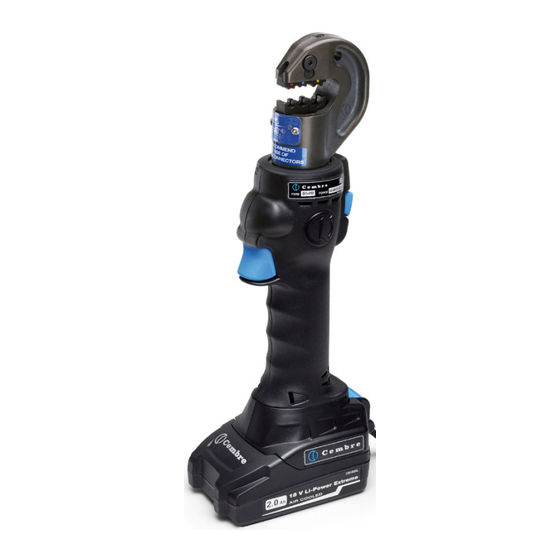

- Page 1 15 M 037 U ENGLISH Certified Quality Certified Environmental Certified Occupational Management System Management System Health & Safety Management System BATTERY OPERATED HYDRAULIC CRIMPING TOOL B15MA OPERATION AND MAINTENANCE MANUAL...
- Page 2 WARNING LABELS - ETIQUETTES SIGNALETIQUES - WARNSCHILDER - ETIQUETAS DE ATENCION - ETICHETTE D'AVVERTENZA Tool - Outil - Werkzeug - Herramienta - Utensile – Before using the tool, carefully read the instructions in this manual. 48x13 mm – When operating the tool, keep hands away from the danger zone. –...
- Page 3 FIG. 1 62 - 65 DIE RELEASE BUTTON HEAD ROTATES 340° PRESSURE RELEASE BUTTON OPERATING BUTTON BATTERY RESIDUAL BATTERY ENERGY DISPLAY...
-
Page 4: General Characteristics
BATTERY OPERATED HYDRAULIC CRIMPING TOOL 1. GENERAL CHARACTERISTICS B15MA TOOL TYPE: Application range: suitable for installing electrical compression connectors for conductors up to 16 mm (6 AWG) Crimping force kN (sh ton): 15 (1.7) Rated operating pressure bar (inches): 340 (4,900) - Page 5 2. INSTRUCTIONS FOR USE WHEN INTRODUCING OR CHANGING DIES, THE BATTERY MUST FIRST BE REMOVED FROM THE TOOL 2.1) Preparation (Ref. to Figs. 1, 2) With the tool in the rest position and without battery, proceed as follows: Select the appropriate die set for the connector (see Table page 24). Locate the dies in the head, always inserting the lower one first (with the slot): 1 Press the button (62) and insert the lower die into its seat, then release the button to lock it in position.
- Page 6 – The motor will continue to operate after the maximum pressure relief valve has activated. No further crimping force is applied, the oil is bypassed and returned to the reservoir. 2.4) Release of dies Press the pressure release button (9), the ram will retract and open the dies. 2.5) Head rotation For ease of operation the tool head can rotate through 340°, allowing the operator to work in the most comfortable position.
-
Page 7: Maintenance
Centre; if pos- sible, attach a copy of the Test Certificate supplied by Cembre together with the tool or, if no other references are available, indicate the approximate purchase date and the tool serial number. -
Page 8: Crimping Dies
TABLE 1 CRIMPING DIES Conductor size Connector type DIE SET (AWG) 0,25 ÷ 16 22 ÷ 6 A... ; L...-M ; L...-P ; S... ; RN... ; BN... ; GN... MA03/3-15 1,5 ÷ 10 16 ÷ 8 A... ; L...-M ; L...-P ME03/2-15 10 ÷... -
Page 9: Spare Parts List
SPARE PARTS LIST Cembre The guarantee is void if parts used are not original spares. When ordering spare parts always specify the following: - code number of item - name of item - type of tool - serial number of tool... - Page 10 See TABLE 2 TABLE 1...
- Page 12 TABLE 2 (ITEM 11) DESCRIPTION Item Code N° 6000566 RING 6000199 ACTUATING MECHANICAL GROUP 6000357 200 1 HOUSING 6000358 200 4 GEAR 6760004 200 8 PIN D. 2x8 6900008 200 9 SCREW M3x6 6000849 200 10 WASHER D. 3 SCHNORR 6740020 200 11 BALL 1/4"...
- Page 13 DESCRIPTION Item Code N° 6740120 300 66 BALL 7/32" 3041735 300 67 6640205 300 68 WASHER ø4 SCHNORR 6900052 300 69 SCREW M4x6 6000602 300 70 SPRING 6900054 300 71 SCREW M4x6 6360022 300 72 O-RING 6360125 300 75 O-RING 6641020 300 77 WASHER D6 CU...
- Page 14 TIGHTENING TORQUE 8 Nm (5.9 lbf ft)
- Page 15 TABLE 2...
- Page 16 CS 92014 – 91423 Morangis Cédex E-mail: sales@cembre.com E-mail: sales@cembre.co.uk E-mail: info@cembre.fr www.cembre.it www.cembre.co.uk www.cembre.fr Cembre España S.L. Cembre GmbH Cembre Inc. Calle Verano, 6 y 8 - P.I. Las Monjas Heidemannstraße 166 Raritan Center Business Park 28850 Torrejón de Ardoz - Madrid (España) 80939 München (Deutschland)
