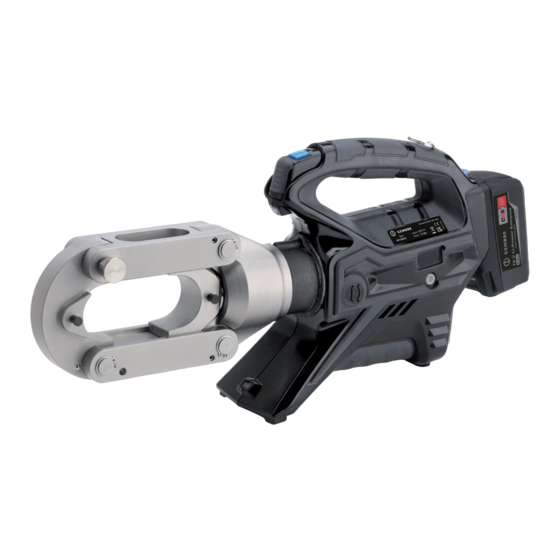

- Page 1 BATTERY OPERATED HYDRAULIC CRIMPING TOOL BATTERY OPERATED HYDRAULIC CRIMPING TOOL B1500 B1500A B1500E B1500YA OPERATION AND MAINTENANCE MANUAL ENGLISH ENGLISH (Translation of the original instructions)
- Page 2 Die set FIG. 1 FIG. 2 Battery FIG. 3 FIG. 4 "P" dies AU150-C adapter "15600" series dies semi-circular slotted "U" dies FIG. 5 (B1500YA)
- Page 3 FIG. 6 OPERATING BUTTON PRESSURE RELEASE BUTTON LED WORKLIGHT OPENING HEAD PIN OPENING HEAD HANDLE TOUCH BUTTON FOR MENU SELECTION RING FOR SHOULDER STRAP DISPLAY BATTERY BATTERY RELEASE HANDLE...
-
Page 4: Warning Symbols
WARNING SYMBOLS Tool: Before using the Do not operate when When operating the tool, carefully read dies are not in place. tool, keep hands away t h e i n s t r u c t i o n s from the danger zone. -
Page 5: General Characteristics
“15600” series dies (U-dies) common to most 12 ton dies commonly tools and 14,6 ton Cembre tools. used in industry Rated crimping force kN (US sh. ton) 136 (15.3) Minimum crimping force kN (US sh. - Page 6 WARNING Do not use the tool for purposes other than those intended by CEMBRE. The operator should concentrate on the work being performed and be careful to maintain a balanced working position. Before starting work on electrical equipment, please ensure that either there are no live parts in the immediate working area or that precautions are taken for working near live parts in accordance with EN50110-1.
- Page 7 To replace the battery, grip the tool as illustrated in Figure 1; press the release button (11) and push the battery downward unlocking it. Insert a charged battery from the bottom by sliding it into the guides until it locks. The display shows the operational parameters of the tool;...
- Page 8 = 10037 psi -29000 the end of the cycle. Pp = 7575 psi The LED Worklights can be disabled by following the procedure described in § 4.2. B1500 3 SEC. NR 14AZ541 BATTERY 2.6) Head rotation For ease of operation, the tool head can rotate through 180°, allowing the operator to work in the 1000 most comfortable position.
- Page 9 SW:S1J41AH when used with adapter AU150-C (optional accessory) will accept semi-circular slotted dies (U- 1000 dies) common to most 12 ton tools and 14,6 ton Cembre tools. Depending on the dies to be used, -29000 please proceed as follows: 3.1) Use of “P” dies (Ref.
-
Page 10: Information Screens
Pp = 7575 psi Pp: Peak pressure reached, expressed in in psi. 3 SEC. Battery charge level. BATTERY 1000 No. of cycles performed. -29000 No. of cycles before scheduled recommended maintenance. B1500 Cembre logo, tool model. Tool serial no NR 14AZ541... - Page 11 30001 the tool continues to work however, it is recommended that it is sent to CEMBRE for a complete overhaul (see § 7). NOTE: this message, together with a beep, will reappear when the tool has ...
-
Page 12: Maintenance
Output voltage of the pressure trans- Repeat the work cycle; if the error mitter is out of the pre-set range. occurs frequently, contact CEMBRE. Failure to reach the set pressure within Repeat the work cycle;... -
Page 13: Return To Cembre For Overhaul
Centre; if possible, attach a copy of the Test Certificate supplied by CEMBRE together with the tool or fill in and attach the form available in the “ASSISTANCE” section of the CEMBRE website. - Page 14 FIG. / BILD 7 525 (20.6) 102.5 (4) mm (inch) NOTE ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ____________________________________________________________________________________ ___________________________________________________________________________________...
-
Page 15: Declaration Of Conformity
DECLARATION DE CONFORMITE - KONFORMITÄTSERKLÄRUNG - DECLARACIÓN DE CONFORMIDAD - DICHIARAZIONE DI CONFORMITÁ We Nous Wir Nos Noi: CEMBRE S.p.A. Via Serenissima, 9 – 25135 Brescia (Italy) Declare under our sole responsibility that the product - Déclarons sous notre seule responsabilité que le produit - Erklären in alleiniger Verantwortung dass das Produkt - Declaramos bajo nuestr responsabilidad que el producto... - Page 16 CEMBRE S.p.A. CEMBRE Ltd. CEMBRE S.a.r.l. CEMBRE España S.L.U. CEMBRE GmbH CEMBRE GmbH CEMBRE Inc. 22 Avenue Ferdinand via Serenissima, 9 Dunton Park, Calle Verano 6 y 8 Geschäftsbereich Geschäftsbereich Raritan Center Business Park de Lesseps 25135 Brescia Kingsbury Road,...
