- Page 1 Stethoscopes Gebrauchsanweisung Diagnostische Instrumente Instructions Diagnostic Instruments Mode d’ emploi Instruments de diagnostiques Instrucciones para el uso Instrumentos diagnósticoss Istruzioni per I’ uso Presidi diagnostici Инструкция по эксплуатации Диагностические инструменты...
-
Page 2: Table Of Contents
IFU. Contact information for Riester sales and dsitribution partners can be pro- vided upon request. Please note all instruments described in these instructions for use may only be used by appropriately trained personnel. The safe functioning of this device is only guaranteed if Riester original parts and accessories are used. -
Page 3: Safety Symbols
Korotkov sounds to determine systolic and diastolic blood pressure. The Riester stethoscope product portfolio offers the full range of options for per- fect auscultation in adults, children, infants and newborns. -
Page 4: Indications
The sound amplification is achieved by a funnel embedded in the chestpiece. In the case of stethoscopes with a double-headed chestpiece, the chestpiece can be rotated by 180°. In addition to the diaphragm, there is a bell without a diaphragm. -
Page 5: First Use
The pH of the treatment solution used must be between 4.5 and 10. Never use stethoscopes without ear tips/diaphragms! The ear tips must not penetrate too far into the ear canal! All serious incidents related to the product must be reported to the manufacturer and the competent authority of the Member State in which the user and/or the patient is resident. - Page 6 duplex® No. 4001-01 black No. 4001-02 slate grey No. 4031-03 blue No. 4033-05 green Chromed brass chestpiece No. 4011-01 black No. 4011-02 slate grey No. 4011-03 blue No. 4011-05 green - User manual - 1 pair of spare ear tips - 1 spare diaphragm duplex®...
-
Page 7: Device Function

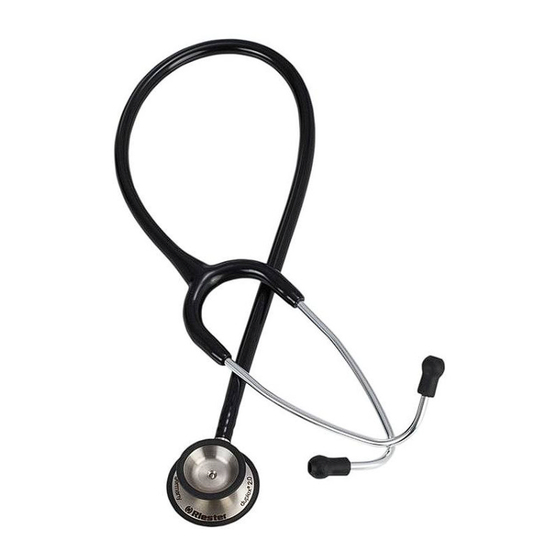

2.2 Device function All stethoscopes manufactured by Rudolf Riester have the same basic structure. The stethoscope consists of four elements: 1. Tubing 2. Binaural tubes 3. Ear tips 4. Chestpiece 3. Operation and function 3.1 Symbol identification cardiophon 2.0, duplex® 2.0, duplex® 2.0 baby, duplex® 2.0 neonatal: The opened diaphragm outlet can be recognized immediately by the marking on the tubing connection above. -
Page 8: Replacing Diaphragms
tips are particularly suitable for this. If the contact pressure of the Binaural tubes is too strong or too weak, proceed as follows: If the contact pressure is too weak, press the two Binaural tubes together, as shown in Fig. B. If the contact pressure is too strong, spread the two Binaural tubes apart, as shown in Fig.C. -
Page 9: Technical Specifications
Phenol-based disinfectants must not be used to clean and disinfect the stet- hoscopes. The pH of the treatment solution used must be between 4.5 and 10. Never use stethoscopes without ear tips/diaphragms! 5. Technical specifications Operating conditions: 10°C / 50°F to 40°C / 104°F with a relative humidity... - Page 10 Item no. 11068-02 Binaural tubes with Y-tubing, slate grey, tubing connector, tristar Item no. 11068-03 Binaural tubes with Y-tubing, blue, tubing connector, tristar Item no. 11070-01 Binaural tubes with double tubing, black, ri-rap 40 cm Item no. 11070-03 Binaural tubes with double tubing, blue, ri-rap 40 cm Item no.
-
Page 11: Maintenance/Accuracy Check/Calibration
You are also welcome to request a provisional cost estimate from us free of charge. In case of a warranty claim or repair, please return the Riester product with the completed Warranty Card to the following address: Rudolf Riester GmbH Dept. - Page 12 Rudolf Riester GmbH P.O. Box 35 | Bruckstrasse 31 | 72417Jungingen | Germany Tel.: (+49) 7477-9270-0 | Fax.: (+49) 7477-9270-70 E-Mail: info@riester.de | www.riester.de...
