  • Page 2 OPERATOR’S MANUAL Pulse Oximeter ri-fox N...
  • Page 3: General Description

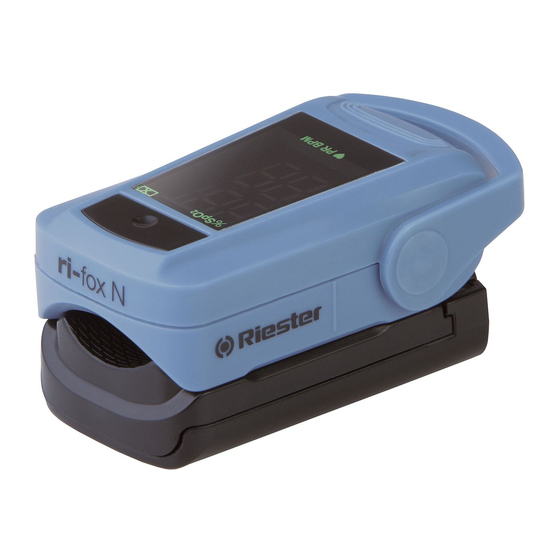

    Therefore, it is very important to know the oxygen saturation of a patient so that doctors can find problems in a timely manner. The fingertip pulse oximeter ri-fox N features small size, low power consumption, convenient operation and portability. It is only necessary for a patient to put one of his fingers into the fingertip photoelectric sensor for diagnosis, and a display screen will show oxygen saturation.
  • Page 4: Product Operation Scope

    ) and pulse rate of adult and pediatric patients at home and hospital (including clinical use in internal medicine/surgery, anesthesia, etc). The device is not intended for continuous monitoring. The ri-fox N requires no routine calibration or maintenance other than replacement of batteries. Technical Specifications 1.
  • Page 5 4. Power Requirements: Two AAA alkaline Batteries Power consumption: Less than 30mA Low power indication: Battery Life: Two AAA 1.5V, 800mAh alkaline batteries could be continuously operated as long as 30 hours. 5. Dimension: Length: 66mm Width: 39mm Height: 32mm Weight: 34g (without batteries) 6.
  • Page 6: Precautions For Use

    5. Check the pulse oximeter sensor application site frequently to determine the positioning of the sensor and circulation and skin sensitivity of the patient. 6. Before use, carefully read the manual. 7. ri-fox N has no SpO alarms; it is not for continuous monitoring, as indicated by the symbol.
  • Page 7 9. Inaccurate measurements may be caused by autoclaving, ethylene oxide sterilizing, or immersing the sensors in liquid may cause inaccurate readings. 10. SpO measurements may be adversely affected in the presence of high ambient light. Shield the sensor area if necessary. 11.
  • Page 8: Product Specifications

    Product specifications 1. Easy to use. 2. Small in volume, light in weight. 3. Low power consumption. 4. Low voltage warning will be indicated in visual window when battery voltage is low. 5. The product will automatically be powered off when no signal is registered for longer than 8 seconds.
  • Page 9: Brief Description Of Front Panel

    Brief Description of Front Panel Pulse low indicator Pulse Bar graph Oxygen Saturation Pulse Rate PR BPM The Pulse Bar graph displays the strength of the pulse rate signal. The height of the bar graph shows the patient’s pulse strength. Battery Installation Press the button down! 1.
  • Page 10: Maintenance And Storage

    1. Replace batteries in time when low voltage lamp is lighted. 2. Clean surface of the ri-fox N before it is used in diagnosis for patients. 3. Remove batteries inside the battery cassette if the oximeter will not be used for a long time.
  • Page 11 Guidance and manufacture’s declaration – electromagnetic emission The ri-fox N is intended for use in the electromagnetic environment specified below. The customer or the user of the ri-fox N should assure that it is used in such and environment. Emission test Compliance Electromagnetic environment –...
  • Page 12: Possible Problems And Resolutions

    Possible Problems and resolutions Problems Possible reason Solution 1. Retry by plugging the finger. 2. Try some more times, If you or PR 1.Finger is not plugged correctly can make sure about no problem can not be 2.Patient’s Oxyhemoglobin value is shown normally existing in the product.
  • Page 13: Symbol Definitions

    Symbol Definitions Symbol Definition Type BF applied part Attention, consult accompanying documents. %SpO Oxygen saturation Pulse rate (BPM) PR BPM Low power indication NOT for continuous monitoring Serial No. Note: The illustrations used in this manual may differ slightly from the appearance of the actual product.
  • Page 14: Warranty
