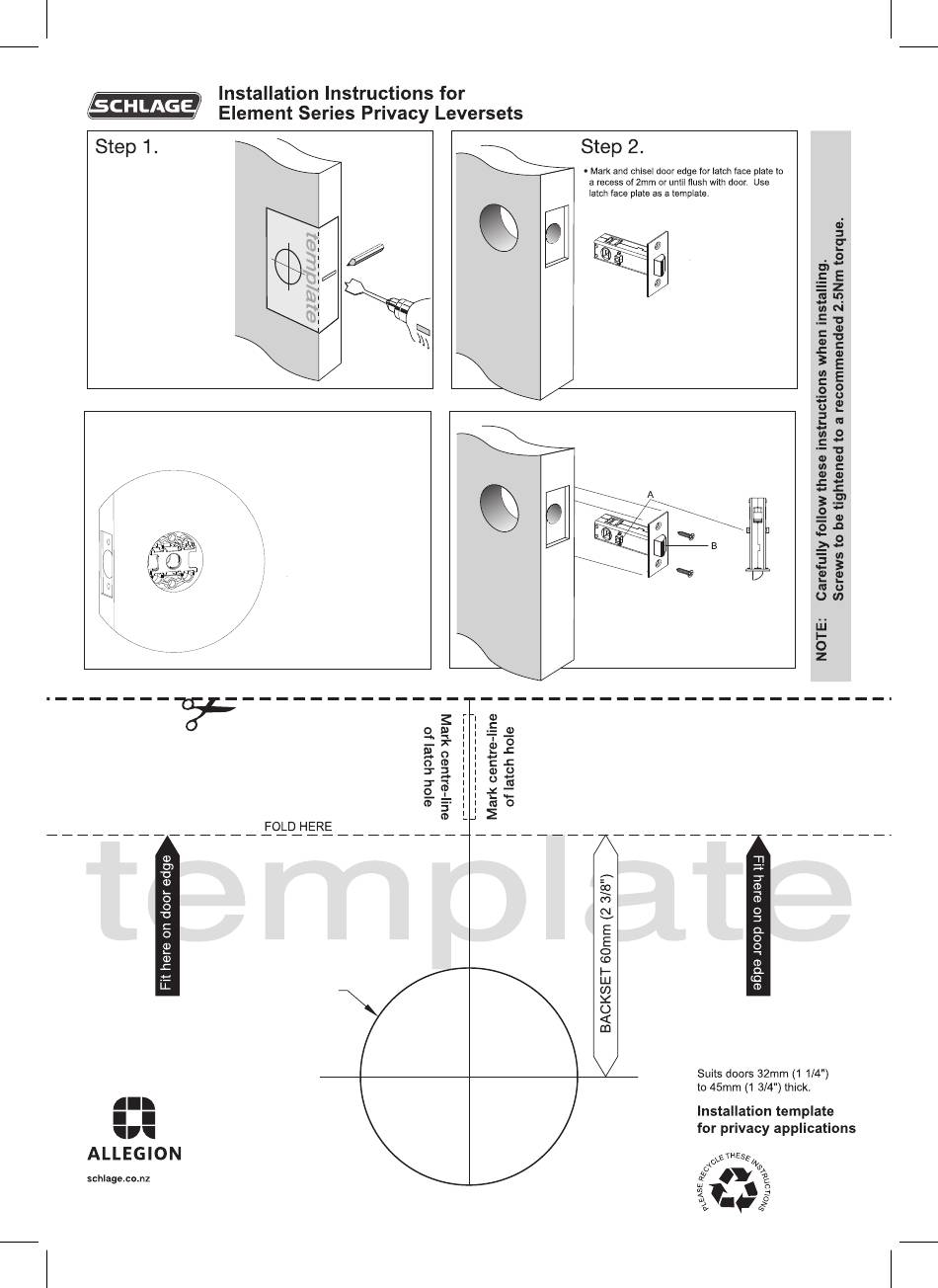

Allegion SCHLAGE Element Series Installation Instructions

• Fold template where
indicated.
• Position template on door
edge at desired latch height.
• Firmly hold template and mark
latch height and handle fixing
holes at required backset
(refer template).
• Measure door thickness and
mark centre.
• Drill 25mm (1") latch hole.
Note: it is important to drill this
hole squarely.
• Drill 54mm (2 1/8") hole
through door face at required
backset as marked on
template.
54mm (2 1/8") hole
– refer Step 1.
PDSC0024R1

Step 3.

• Insert latch support into hole as
shown (suitable and required for
54mm hole prep).
Note: If retrofitting to an existing
hole prep less than 54mm, the latch
support will not be required.

Step 4.

• Insert latch into door (through latch support if
used), ensuring that:
- The bevelled area of the latchbolt (B) is facing
the direction of door closure.
- The threaded drive bar (A) is sitting proud on b
both sides of the latch body
• Pre-drill screw holes with suitable drill size.
• Fasten with wood screws provided
