SUMAKE
Specification:
Blow Per Minute
Piston Stroke
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS

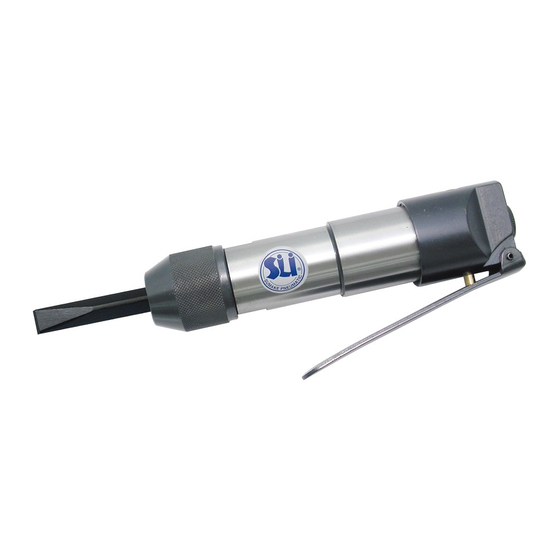

Air Flux Chipper
With 12mm Flat Chisel
ST-2558F
4,800 b.p.m.
32 mm
6 CFM (170 L/min)
9-1/4" (235 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.42 lbs (1.1 kg)
Noise and Vibration:
Vibration
EN ISO 28927-9
Sound Pressure Level
Load:
23.12 m/s²
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
Please always
Load: 92 dB(A)
environment
Sound power level
noise level >
Load: 103 dB(A)
80 dB(A) due
Uncertainty
K= 3dB
ST-2558F-S-2307G-JIF
Remark
wear ear
protector at
to risk of
impaired
hearing!
Advertisement
Table of Contents
Related Manuals for Sumake ST-2558F
Summary of Contents for Sumake ST-2558F
- Page 1 Air Hose (I.D.) 3/8” (10 mm) to risk of impaired Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! K= 1.5 m/s K= 3dB ² Net Weight 2.42 lbs (1.1 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-2558F-S-2307G-JIF...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： AIR FLUX CHIPPER Model/ Serial No.：ST-2558F to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
- Page 3 Low revolution rate Not enough air pressure Check air pressure Air leakage form the tool Check all connect points and repair efficiency Motor running abnormal or Not enough lubrication, cylinder, Lubricate or replace parts unusual noises occur piston damaged ST-2558F-I-2308D-JI...
- Page 4 ST-2558F AIR FLUX CHIPPER WITH 12MM FLAT CHISEL PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 2558F-01 Backhead 2558F-09 Rubber Cushion 2558F-02 O-Ring (P5) 2558F-10 Rear Valve Block 2558F-03 Throttle Valve 2558F-11A Piston 2558F-03-1 O-Ring (2.0x1.5) 2558F-12 Barrel Sleeve...
