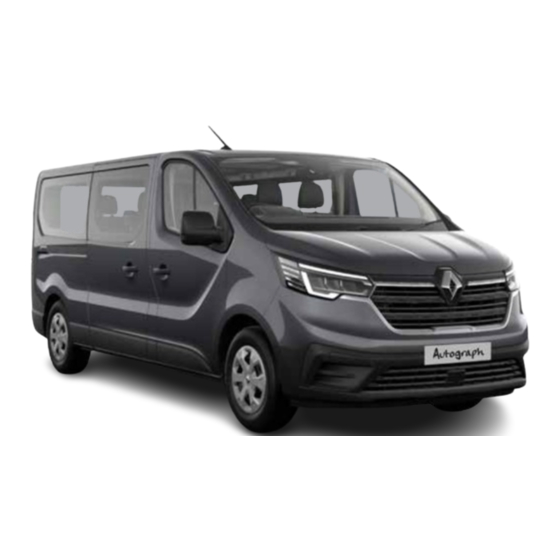

- Page 1 RENAULT RENAULT ™ ™ page 1 USER GUIDE USER GUIDE Freephone 0800 587 9656 www.alliedmobility.com...
-
Page 2: Table Of Contents
RENAULT ™ page 2 USER GUIDE Contents Page 3. EasyGo™ Ramp Operation Page 4. Entry and Front Wheelchair Restraints Page 5. Electric Assist Winch Page 6. Rear Wheelchair Restraints Page 7. Wheelchair Passenger Seat Belt Page 9. Getting Ready to Travel & On Arrival Page 10. -
Page 3: Easygo™ Ramp Operation
RENAULT ™ page 3 USER GUIDE EasyGo™ Ramp Operation The EasyGo™ ramp is a single action ramp. When not in use it is stored vertically at the rear of the vehicle. Deploying the ramp fig.1 To release the ramp pull the lever on the underside of the main ramp body fig.1... -
Page 4: Entry And Front Wheelchair Restraints
RENAULT ™ page 4 USER GUIDE Entry and Front Wheelchair Restraints A. Open the tailgate fully and deploy the ramp. B. Remove the rear wheelchair restraints from the floor anchors by lifting the toggle while sliding the fig.1 restraints off the anchors fig.1... -
Page 5: Electric Assist Winch
RENAULT ™ page 5 USER GUIDE Electric Assist Winch Note: The Electric winch system is designed to assist in pulling a wheelchair passenger up the ramp. If your vehicle has a winch included, it should be operated in addition to the wheelchair restraint system as follows: fig.1... -
Page 6: Rear Wheelchair Restraints
RENAULT ™ page 6 USER GUIDE Rear Wheelchair Restraints A. Retrieve the rear wheelchair restraints. The restraints attach to the anchors at the rear of the vehicle fig.1 To attach the restraints, lift the toggle then slide them onto the anchors on the floor . -
Page 7: Wheelchair Passenger Seat Belt
RENAULT ™ page 7 USER GUIDE Wheelchair Passenger Seat Belt A. Locate the seat belt hanging from the roof of the vehicle . It will be positioned behind the fig.1 wheelchair passenger and may be fitted on the right or the left. - Page 8 RENAULT ™ page 8 USER GUIDE Wheelchair Passenger Seat Belt C. The seat belt should rest on the passenger’s shoulder without rubbing against their neck fig.6 . If necessary, the shoulder belt height can be raised fig.7a lowered by feeding the belt through the fig.7b...
-
Page 9: Getting Ready To Travel & On Arrival
RENAULT ™ page 9 USER GUIDE Getting Ready to Travel With the wheelchair restraints and wheelchair passenger seat belt firmly secured, you’re almost ready to go. A. Stow the ramp following the relevant instructions on page 3. B. Finally, pull down the tailgate using the pull strap fig.1... -
Page 10: Seat Belts
The triple bench seats in the RS model are equipped with the original Renault seat belt apparatus. Should you require any instruction on the operation or maintenance of the seat belts, please refer to the base vehicle handbook. -
Page 11: Child Restraints
RENAULT ™ page 11 USER GUIDE Child Restraints Always comply with local or national regulations. In some countries, the use of child restraint systems is forbidden on certain seats. In accordance with European regulations, all children under the age of 12 or less than 150cm tall must travel in approved child seats suited to their weight, on seats fitted with a seat belt or ISOFIX anchors. -
Page 12: Fitting Universal Child Restraints & Fitting
Fitting ISOFIX Child Restraints The ISOFIX restraint system provides fast, reliable and safe fitting of child restraints. Instructions for fitting ISOFIX child restraints to the triple bench seats (RS) can be found in your Renault handbook. Freephone 0800 587 9656 www.alliedmobility.com... -
Page 13: Isofix Child Restraints
RENAULT ™ page 13 USER GUIDE Fitting ISOFIX Child Restraints IMPORTANT NOTE Strictly follow the fitting instructions provided with the child restraint and familiarise yourself with the location of the latch, top tether, and support leg indicators. Incorrect installation of a child restraint compromises the protection of the occupant during a crash. -
Page 14: Puncture Repair System: Tyre Inflator And Sealant
RENAULT ™ page 14 USER GUIDE Puncture Repair System: Tyre Inflator and Sealant Should you experience a flat tyre, a can of tyre inflator and sealant is provided. This may be located in either the glove box or the front passenger door pocket. - Page 15 RENAULT ™ page 15 USER GUIDE Allied Mobility Autograph WAV type: AWAV PAS 2012-1:2019 Compliant: Yes Base vehicle: Renault Trafic Passenger Model Autograph Maximum Seating Capacity Wheelchair Access Entrance Dimensions Maximum number of designated wheelchair travelling positions Width (mm) Maximum number of other passenger...
