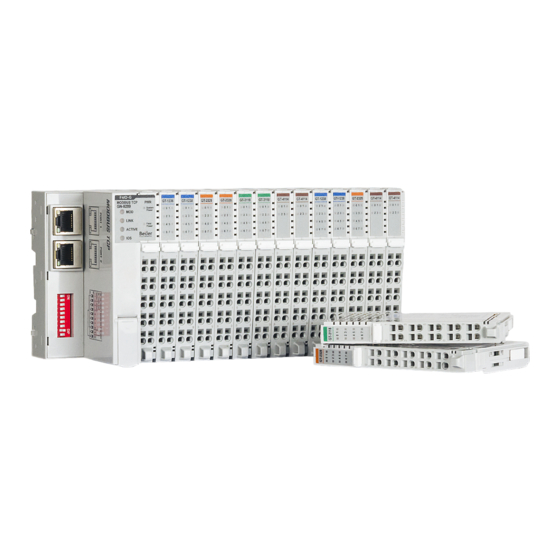

- Page 1 User Manual GT-5422 PWM Output Module 2 ch, 24 VDC, 2 A, source, cage clamp, 18 pt removable terminal Doc ID: 131321 2024-01...
- Page 2 The information in this document is subject to change without notice and is provided as available at the time of printing. Beijer Electronics AB reserves the right to change any information without updating this publication. Beijer Electronics AB assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
9.1. Space Requirements ................16 9.2. Mounting and Dismounting from DIN Rail ............ 17 9.3. Mounting and Dismounting an IO Module ............ 18 9.4. Dismounting a Removable Terminal Block ........... 19 9.5. Wiring ..................... 19 Beijer Electronics, Doc ID: 131321 2024-01... -
Page 5: About This Manual
About This Manual 1. About This Manual This manual contains information on the software and hardware features of the Beijer Electronics GT-5422 PWM Output Module. It provides in-depth specifications, guidance on installation, setup, and usage of the product. 1.1. Symbols Used in This Manual This publication includes Warning, Caution, Note and Important icons where appropriate, to point out safety-related, or other important information. -
Page 6: Safety
Before using this product, please read this manual and other relevant manuals carefully. Pay full attention to safety instructions! In no event will Beijer Electronics be responsible or liable for damages resulting from the use of this product. The images, examples and diagrams in this manual are included for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Beijer Electronics cannot take responsibility or liability for actual use based on the examples and diagrams. -
Page 7: About The G-Series System
IP, EtherCAT, PROFINET, CC-Link IE Field, PROFIBUS, CANopen, DeviceNet, CC-Link, MODBUS/Serial etc. • Expansion Module - Expansion module types: Digital I/O, Analog I/O, and Special modules. • Messaging - The system uses two types of messaging: Service messaging and I/O messaging. Beijer Electronics, Doc ID: 131321 2024-01... -
Page 8: I/O Process Data Mapping
Valid parameter data is based on the modules in use. For example, analog modules have settings of either 0-20 mA or 4-20 mA, and temperature modules have PT100, PT200, PT500 etc. The documentation for each module provides a description of the parameter data. 2024-01 Beijer Electronics, Doc ID: 131321... -
Page 9: Specifications
Voltage range: 15-30 VDC Power dissipation: Max. 15 mA @ 24 VDC except load Single wire I/O Cable Max. 0.823mm² (AWG18) Weight 63 g Module size 12 mm x 109 mm x 70 mm Beijer Electronics, Doc ID: 131321 2024-01... -
Page 10: Output Specifications
Pulse output duty 0.0 - 100.0 % ±1.0 % (0.1 % / 1 LSB), Ton > 1 us, Toff > 1 us Protection Short protection Common type 2 common (field power 0 V is common) 2024-01 Beijer Electronics, Doc ID: 131321... -
Page 11: Wiring Diagram
PWM output channel #0 Field Power 0 V, common Not connected Not connected Not connected Not connected Not connected Not connected PWM output channel #1 Field Power 0 V, common Not connected Not connected Not connected Beijer Electronics, Doc ID: 131321 2024-01... - Page 12 Wiring Diagram Pin no. Signal description Not connected Not connected Not connected Shield Shield 2024-01 Beijer Electronics, Doc ID: 131321...
-
Page 13: Led Indicator
6. LED Indicator LED no. LED function / description LED color PMW output channel #0 Green PMW output channel #1 Green Channel Status Status Indicates No signal No output signal On signal Green Normal operation Beijer Electronics, Doc ID: 131321 2024-01... -
Page 14: Mapping Data Into The Image Value
Duty CH#1, low byte Byte 7 Duty CH#1, high byte NOTE Range of each Duty is 0 (0.0 %) - 1000 (100.0%). Ex. If Duty value is 365, then duty rate is 36.5 %. 2024-01 Beijer Electronics, Doc ID: 131321... -
Page 15: Parameter Data
Parameter Data 8. Parameter Data Valid parameter length: 2 Bytes Bit no. Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Byte 0 Reserved Byte 1 Reserved Beijer Electronics, Doc ID: 131321 2024-01... -
Page 16: Hardware Setup
Installation position is valid vertical and horizontal. The drawings are illustrative and may be out of proportion. CAUTION NOT following the space requirements may result in damaging the product. 2024-01 Beijer Electronics, Doc ID: 131321... -
Page 17: Mounting And Dismounting From Din Rail
The module should be fixed onto the DIN rail with the locking lever. See the instructions below for mounting and dismounting a module from the DIN rail. Mounting on DIN rail Dismounting from DIN rail Beijer Electronics, Doc ID: 131321 2024-01... -
Page 18: Mounting And Dismounting An Io Module
9.3. Mounting and Dismounting an IO Module The module should be fixed onto the DIN rail with the locking lever. See the instructions below for mounting and dismounting an IO Module. Dismounting an IO module Locking lever 2024-01 Beijer Electronics, Doc ID: 131321... -
Page 19: Dismounting A Removable Terminal Block
The terminal block can be removed using the locking switch. See the instructions below for dismounting a removable terminal block. 9.5. Wiring See the instructions below for connecting and removing cables to the terminal block. WARNING Always use recommended supply voltage and frequency! Beijer Electronics, Doc ID: 131321 2024-01...
