7.
ALIGNMENT:
(continued)
I
I
I
I
I
i
i
I
i
I
I
I
I
I
i
i
i
4
I
I
I
I

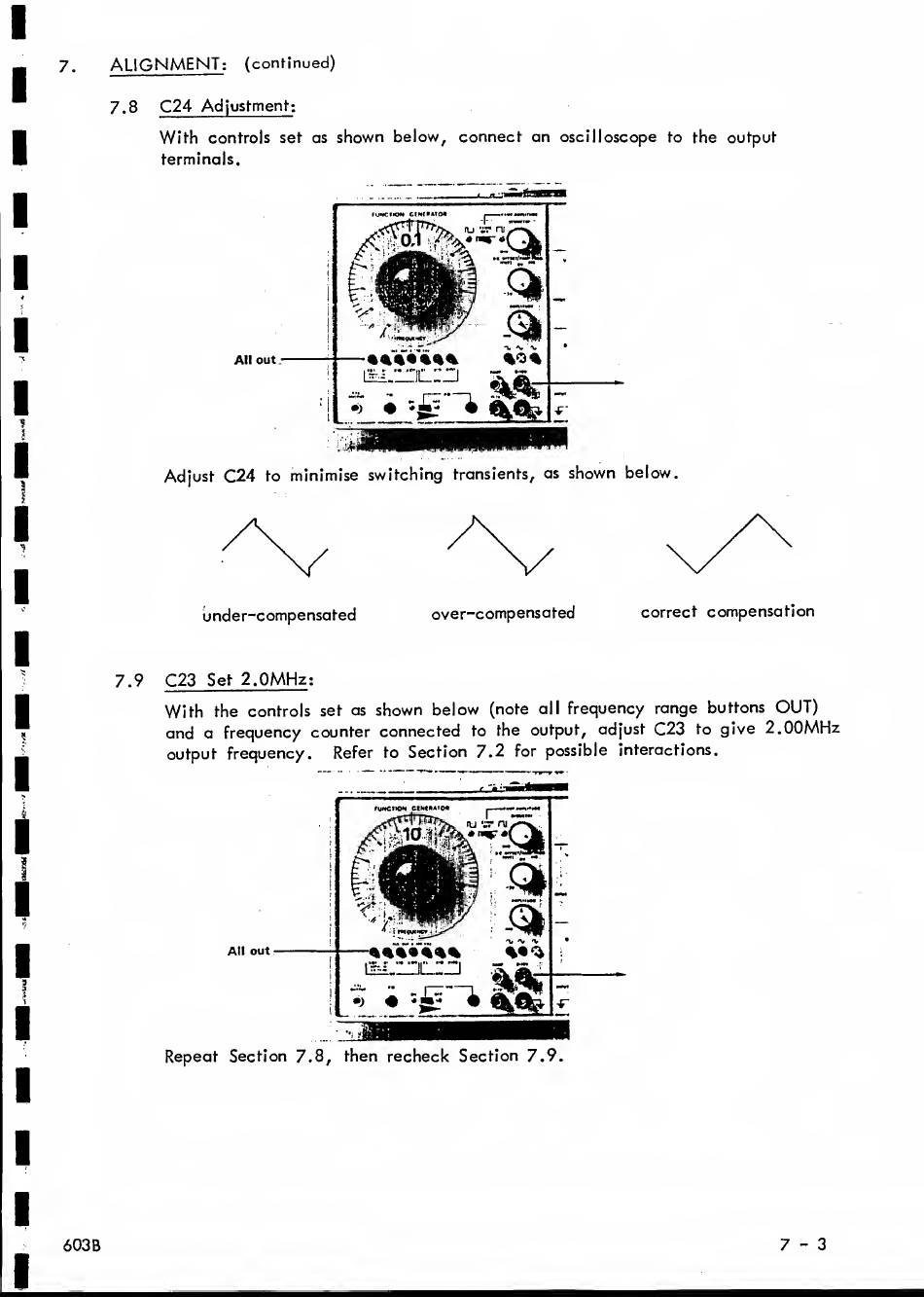

7.8
C24
Adjustment;
With
controls set
as
shown below, connect an
oscilloscope
to
the output
terminals.
Adjust
C24
to
minimise switching
transients, as
shown below.
under-compensated
over-compensated
correct
compensation
7.9
C23
Set
2.0MHz
;
With
the controls set as
shown below
(note
all
frequency range buttons
OUT)
and a frequency counter
connected
to
the
output, adjust
C23
to
give
2.00MHz
output frequency. Refer to
Section
7.2
for
possible interactions.
Repeat
Section 7.8, then
recheck Section 7.9.
603
B
7-3
