OPERATION
(continued)
Operation
of the
Function
Generator
(continued)
I
4
I
i
I
1
I
I
I
I603B
If
it
is
required
to
control the
frequency
with on
external voltage, the lead
from
the
RAMP
output can
be disconnected and
the external
voltage
fed
into
the
F.M.
input socket.
The
voltage/frequency
relationship
is
shown by
the
graph
on
the opposite
page,
but
no upper
limit
indication
is
available.

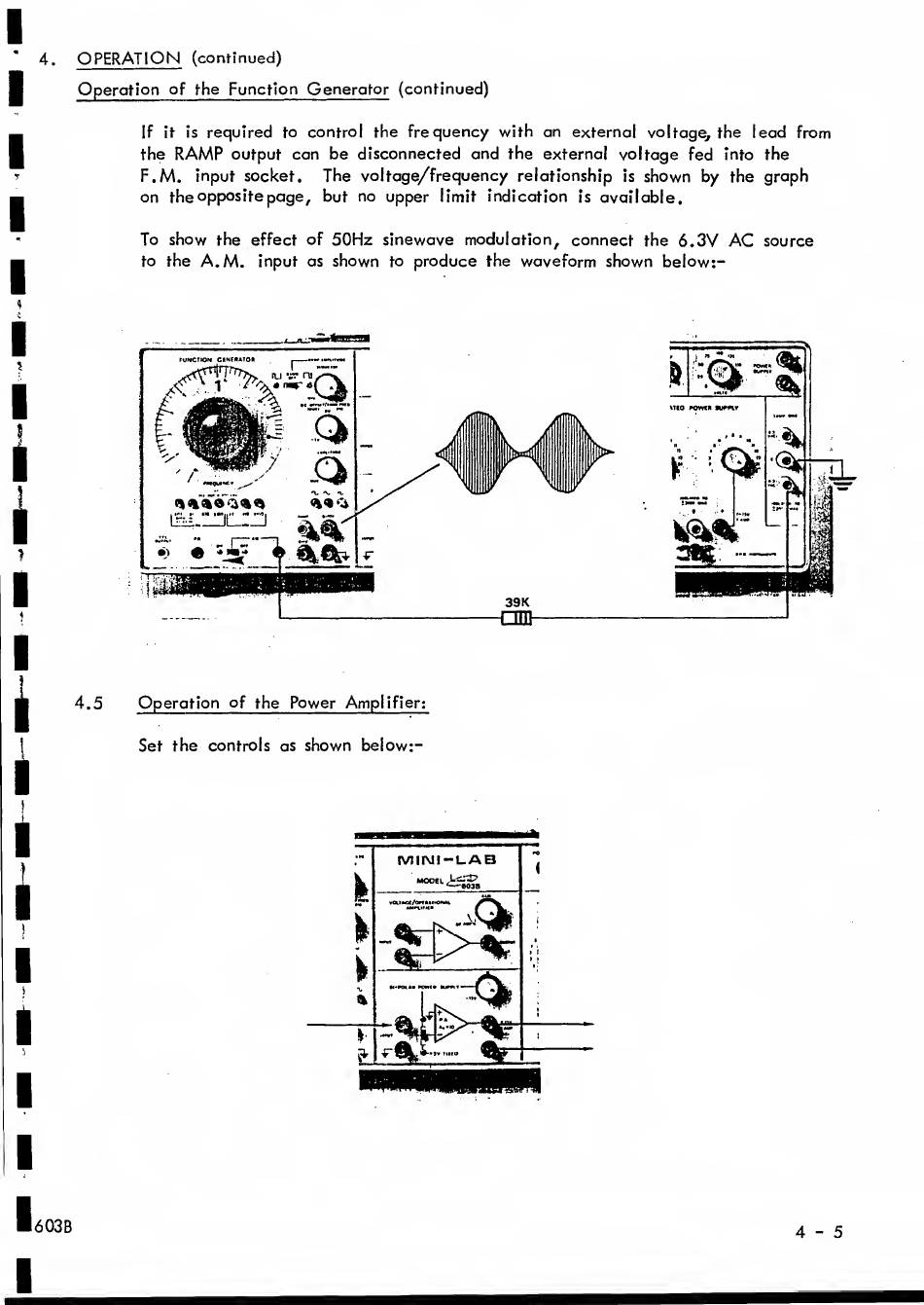

To
show
the effect of
50Hz
sinewave modulation, connect
the
6.3V
AC
source
to
the
A.M.
input as
shown
to
produce
the
waveform shown below:-
nm
Operation
of the
Power
Amplifier;
Set
the
controls as
shown below:-
4-5
