BWD MINI-LAB 603B Manual page 21

4
OPERATION
(continued)

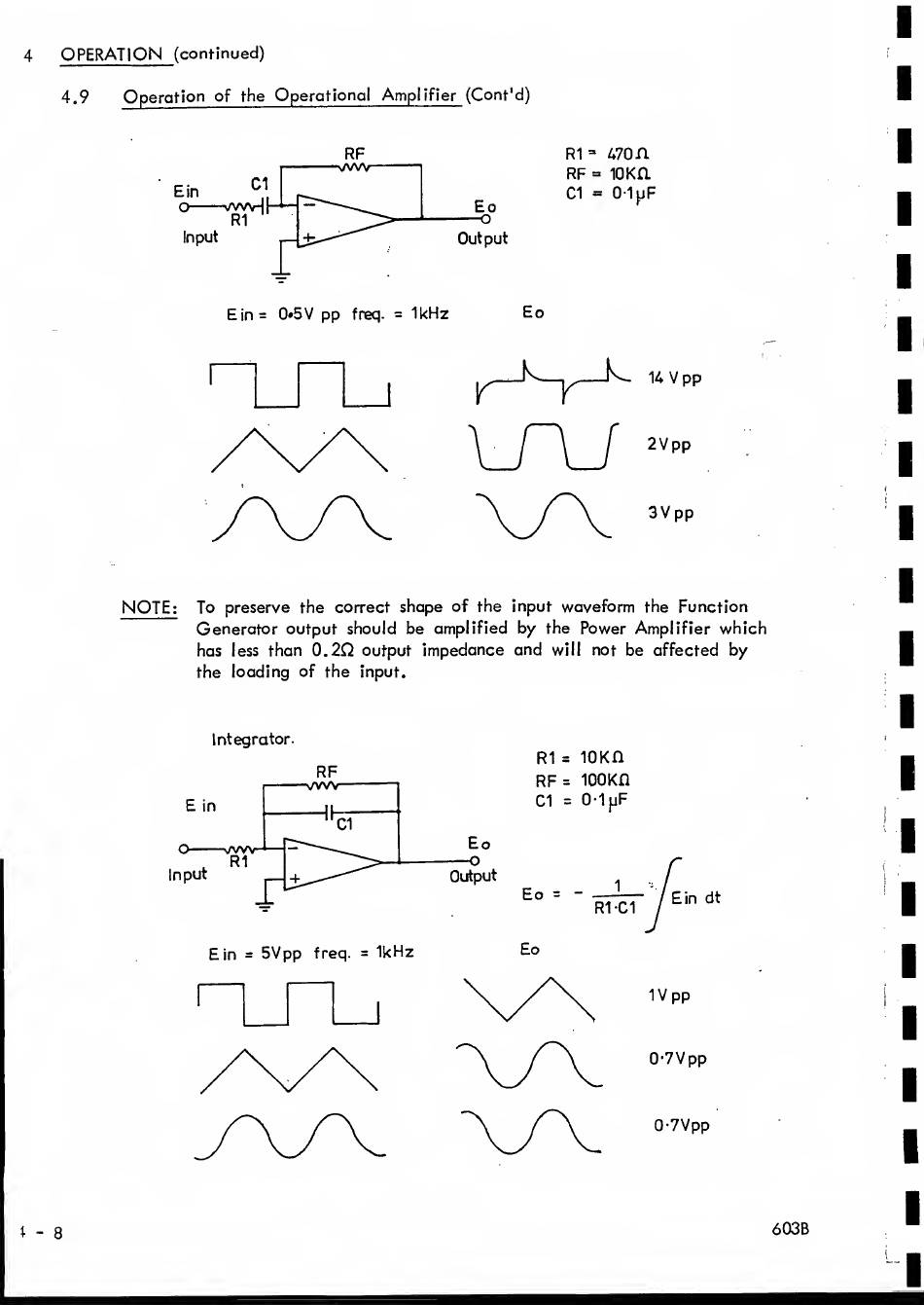

4.9
OperaHon
of the
Operational Amplifier
(Cont'd)
R1= 470A
RF
= 10Ka
C1
=
0-1
uF
Eo
^
Output
Ein= 0»5V pp
freq.
= 1kHz
Eo
NOTE:
To preserve the correct
shape of
the input
waveform
the Function
Generator
output should be amplified by
the
Power
Amplifier
which
has
less
than
0.2Q
output
impedance and
will
not be affected
by
the loading of the
input.
Integrator.
RF
Ein =
5Vpp
freq.
=
1kHz
R1 =
10KQ
RF=
100KO
Cl
= 0-1|jF
Eo
1
-
8
603B
