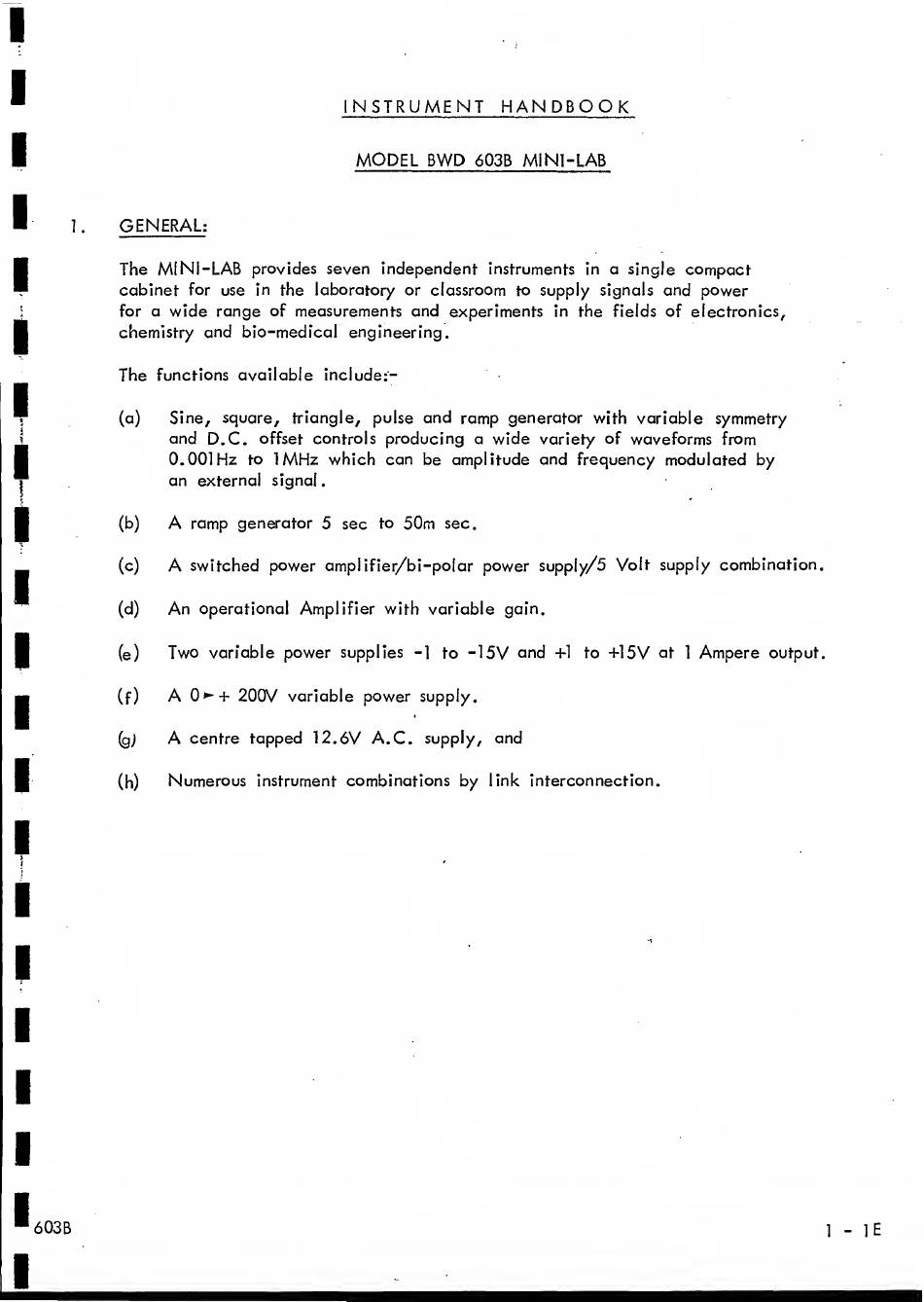

INSTRUMENT
HANDBOOK
MODEL BWD
603B
MINI-LAB
1.
GENERAL;
The
MINI-LAB
provides
seven independent
instruments
in
a
single
compact
cabinet
for use in
the laboratory or classroom
to
supply
signals
and power
for
a
wide range of measurements and experiments
in
the
fields
of electronics,
chemistry
and bio-medical
engineering.
The functions available include;-
(a)
Sine, square, triangle, pulse
and ramp
generator with variable symmetry
and D.C.
offset
controls
producing a wide variety of waveforms
from
0.001
Hz
to
IMHz
which can be
amplitude
and frequency modulated by
an
external signal
(b)
A
ramp generator 5 sec
to
50m
sec.
(c)
A
switched
power
amplifier/bi-polar
power
supply/5 Volt supply combination.
(d)
An
operational Amplifier with variable gain.
(e)
Two
variable
power
supplies -1
to
-15V
and
+1 to
+15V
at
1
Ampere
output.
(f)
A
0»-+ 200V
variable
power
supply.
A
centre
tapped 12.6V
A.C.
supply,
and
(h)
Numerous
instrument
combinations by
link
interconnection.
