4.
OPERATION
(continued)
4.11
6.3V
-
0
-
6.3V
AC
Output;

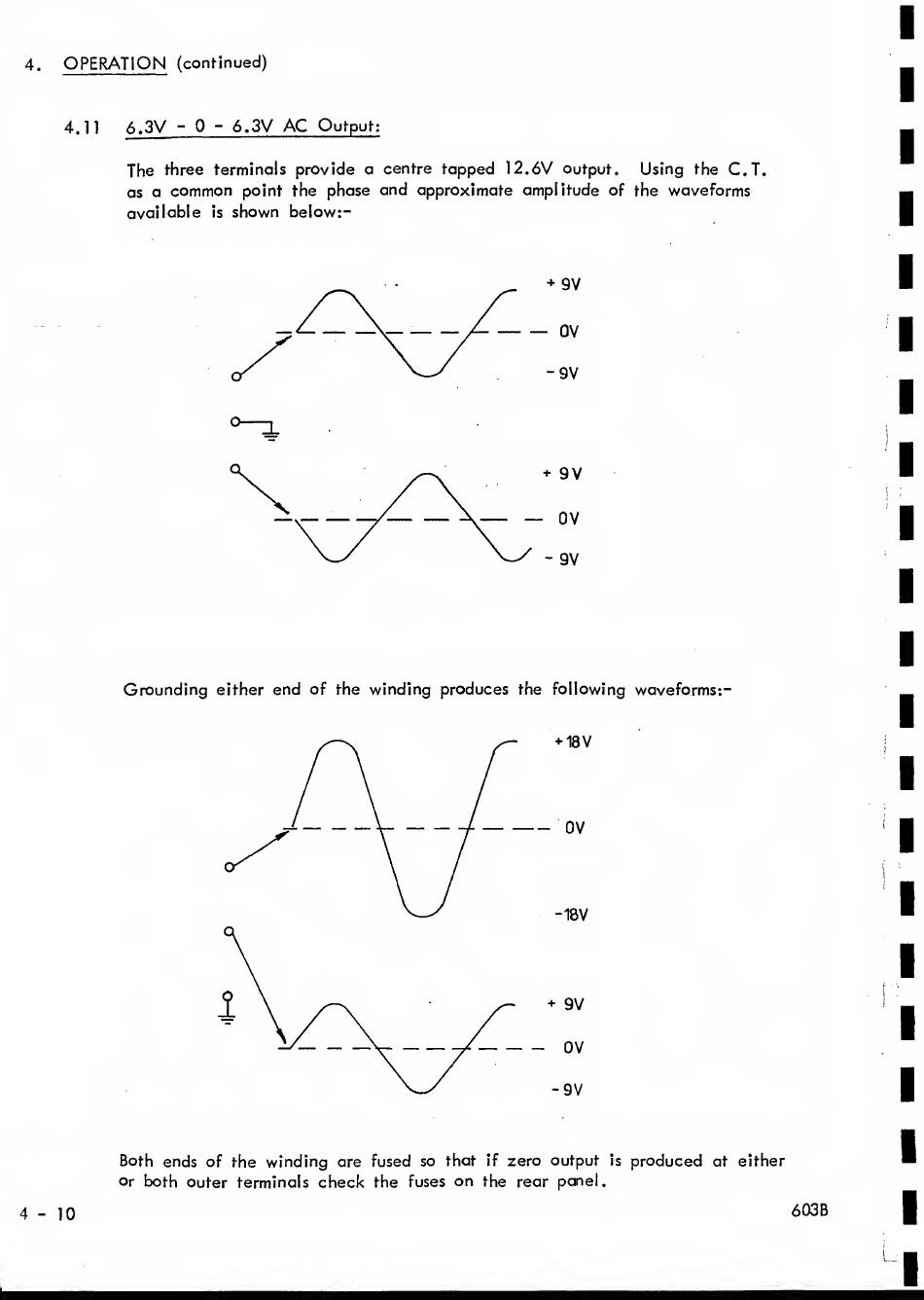

The
three terminals
provide a centre tapped
12.6V
output.
Using
the
C.T.
as
a
common
point the
phase
and approximate
amplitude
of the
waveforms
available
is
shown below:-
Grounding
either
end
of the winding produces
the following
waveforms:-
Both ends of the
winding
are fused
so
that
if
zero output
is
produced
at
either
or
both outer terminals
check
the
fuses
on
the rear panel.
4-10
