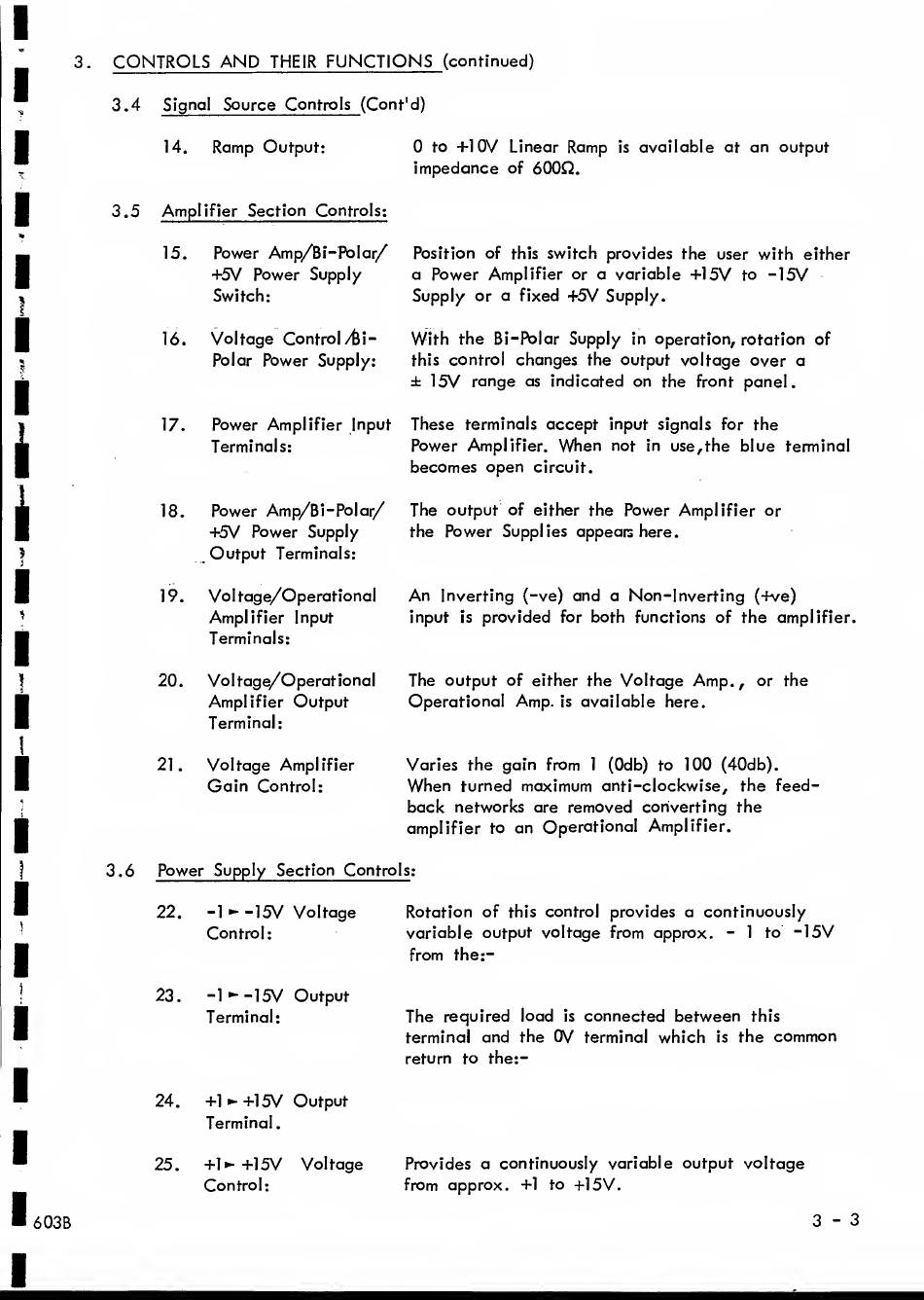

3.
CONTROLS
AND
THEIR
FUNCTIONS
(continued)
3.4
Signal
Source
Controls (Cont'd)
14.
Ramp
Output:
0
to
+10V
Linear
Ramp
is
available
at
an
output
impedance
of
600Q.
3.5
Amplifier Section
Controls:
15.
Power Amp/Bi-Polar/
Position of
this
switch provides the
user
with
either
+5V
Power
Supply
a
Power
Amplifier
or
a variable
+15V
to
-15V
Switch:
Supply
or a fixed
+5V
Supply.
16.
Voltage
Control
/bi-
polar
Power
Supply:
With
the Bi-Polar Supply
in
operation, rotation of
this
control
changes
the
output voltage
over
a
± 15V
range
as
indicated
on
the front
panel.
17.
Power
Amplifier
Input
These
terminals
accept
input signals
for
the
Terminals:
Power
Amplifier.
When
not
in
use, the
blue
terminal
becomes open
circuit.
18.
Power Amp/Bi-Polar/
The
output
of either the
Power Amplifier
or
+5V
Power
Supply
the
Power
Supplies appears here.
Output
Terminals:
19.
Voltage/Operational
Amplifier
Input
Terminals:
An
Inverting (-ve)
and
a
Non-Inverting
(+ve)
input
is
provided
for
both
functions
of the
amplifier.
20.
Voltage/Operational
Amplifier
Output
Terminal:
The output
of
either
the
Voltage
Amp.,
or the
Operational
Amp.
is
available here.
21.
Voltage
Amplifier
Varies the gain from
1
(Odb)
to
100
(40db).
Gain
Control:
When
turned
maximum
anti-clockwise, the feed-
back
networks
are
removed
converting the
amplifier
to
an Operational
Amplifier.
3.6
Power Supply
Section Controls
:
22.
-1
-15V
Voltage
Control:
Rotation of
this
control
provides a
continuously
variable output voltage from approx.
-
1
to
-15V
from the:-
23.
-1*'-15V Output
Terminal:
The
required load
is
connected
between
this
terminal
and
the
OV
terminal
which
is
the
common
return to the:-
24.
+1^+15V
Output
Terminal
25.
+1^+15V
Voltage
Provides a continuously variable output
voltage
Control:
from approx.
+1
to
+15V.
603B
3-3
