L F E C o n n e c t i o n - O p t i o n A

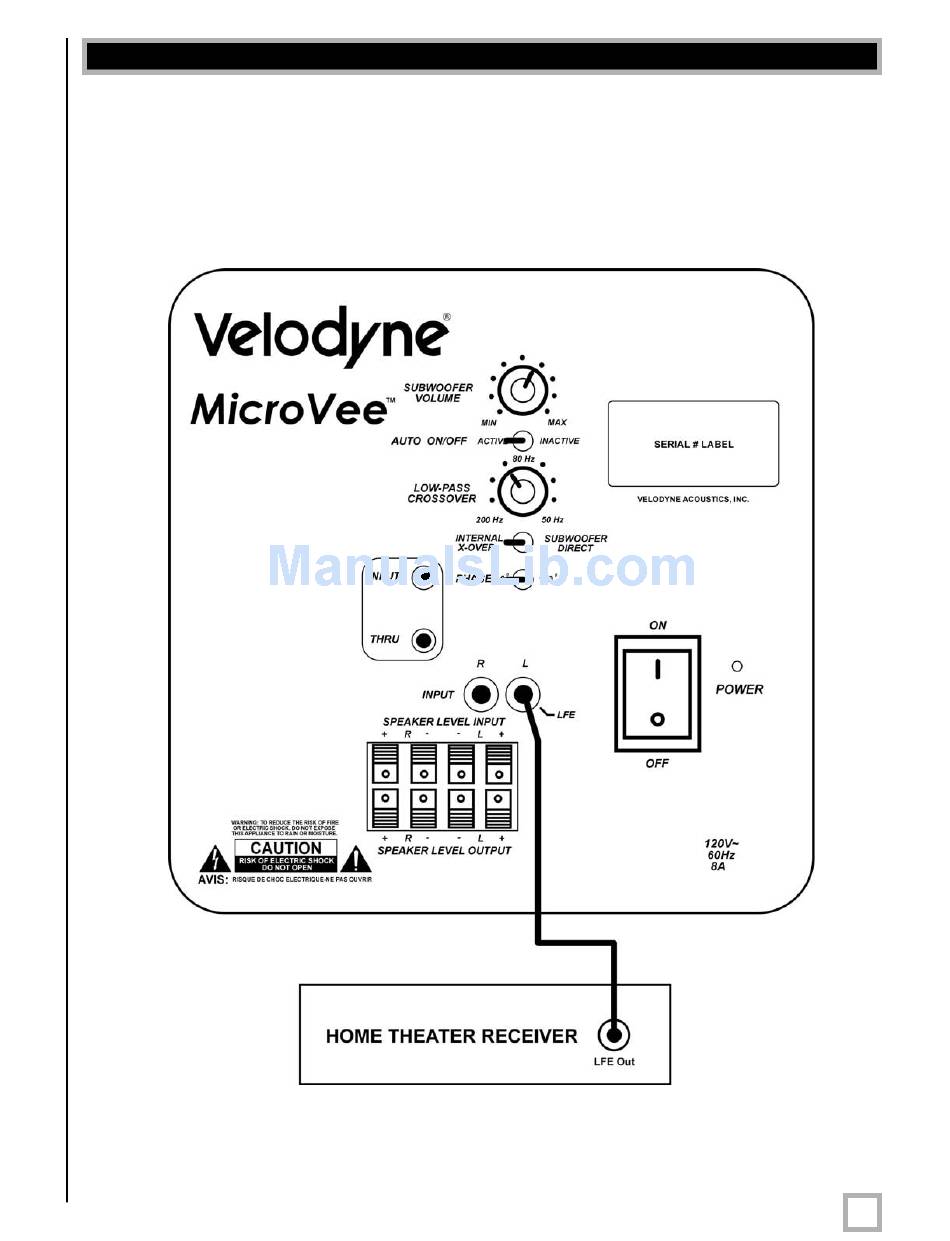

Figure 2 shows connection from your home theater receiver to the LFE input on the back of
your subwoofer. When the subwoofer is installed in this fashion, all of the low frequency
information from your "LFE Out" or "Subwoofer Out" on the back of your receiver will pass into
your Velodyne subwoofer. This connection is the most common connection method when using
your subwoofer with a 5.1 receiver. (Cable needed: 1 mono RCA cable.)
.
Figure 2. Installation Using LFE Line-Level Inputs
