M i n i - J a c k C o n n e c t i o n - O p t i o n B

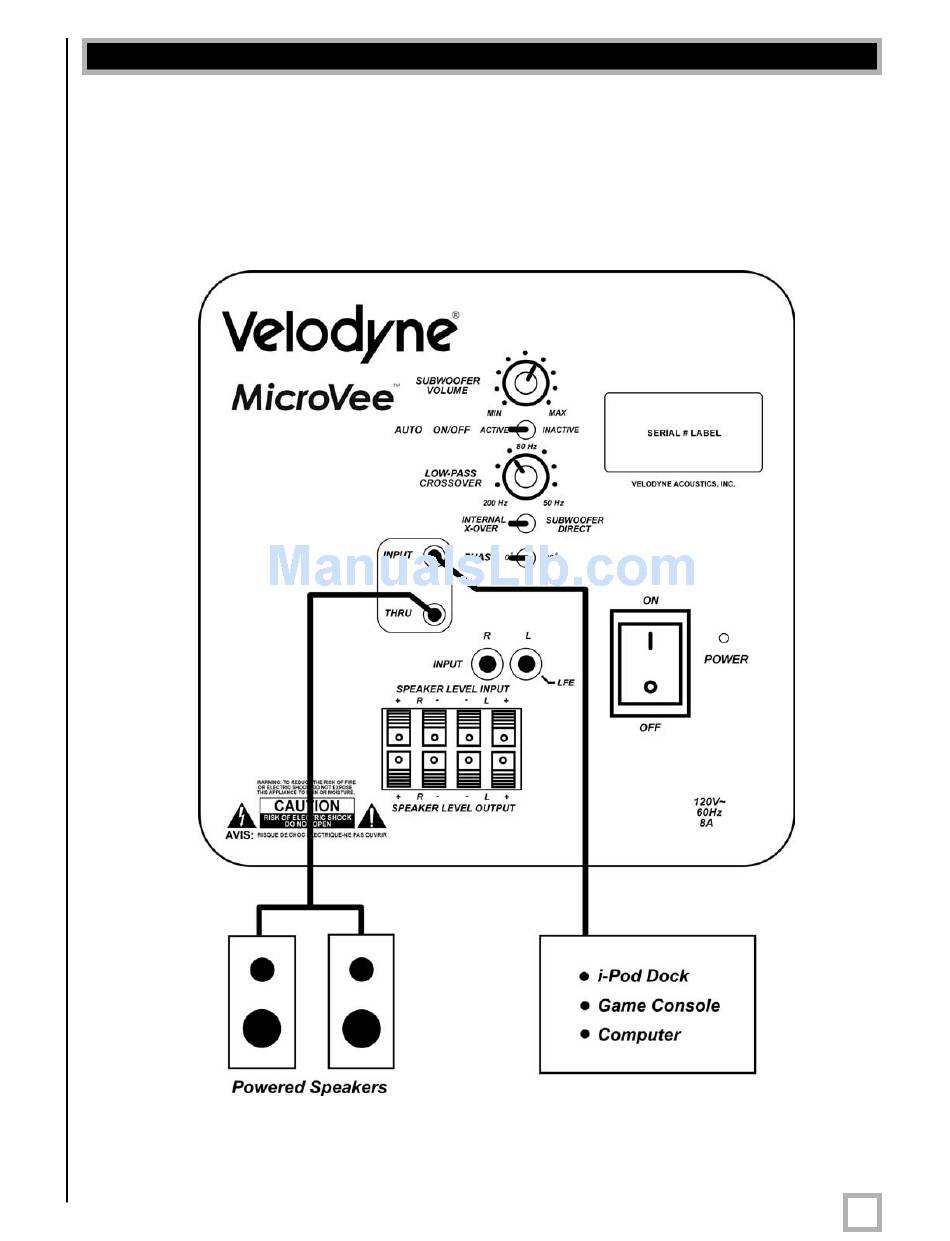

Figure 3 shows connection from your audio player or gaming console output to the MINI-JACK
of your Velodyne subwoofer. Use the supplied cable to connect from the output of your dock,
computer or gaming console to the input jack of the MicroVee. Connect the satellite speakers
into the thru-jack on the back of the MicroVee subwoofer. (Cable supplied by Velodyne: 6 foot,
1/8" (male) to 1/8" (male) stereo cable.)
.
Figure 3. Installation Using Mini-Jack Line-Level Inputs
