Summary of Contents for Velodyne MicroVeem

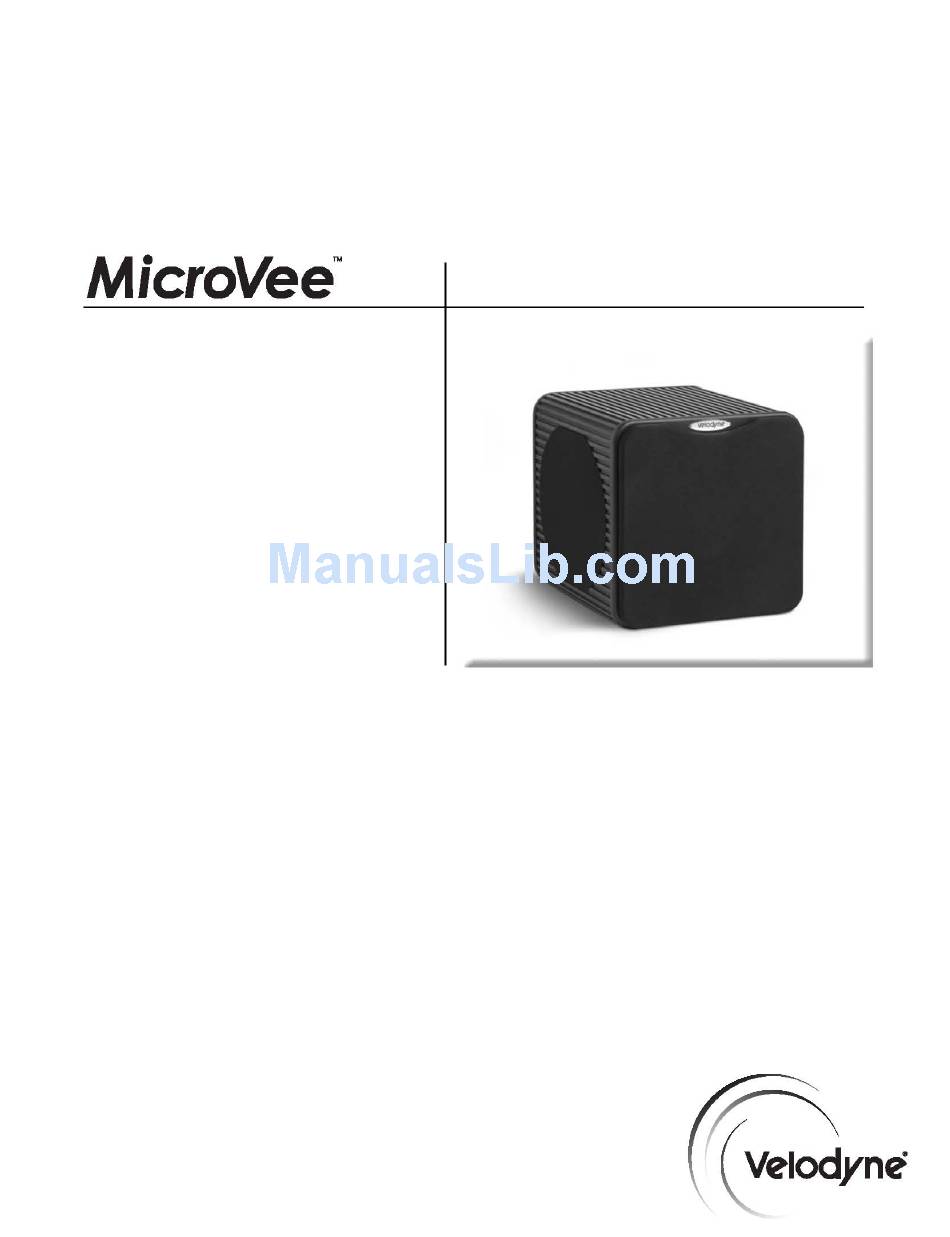

  • Page 1 U S E R ’ S M A N U A L ( 1 2 0 V / 2 3 0 V ) A u d i o / V i d e o S u b w o o f e r S y s t e m...
  • Page 2 C a u t i o n I M P O R T A N T S A F E T Y I N S T R U C T I O N S Caution To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.
  • Page 3: Table Of Contents

    Velodyne Products ........
  • Page 4: Congratulations

    C o n g r a t u l a t i o n s Congratulations on your purchase of a Velodyne MicroVee subwoofer system! This system represents the state-of-the-art in low frequency reproduction and will provide you with years of listening pleasure when properly used and cared for.
  • Page 5: Placement Of Your Subwoofer

    The worst location for a subwoofer is typically far away from any walls and close to the center of your room. Avoid these locations when possible. When using a pair of Velodyne subwoofers in stereo, it is preferable to place each subwoofer near the satellite of the same channel.
  • Page 6: Installation

    I n s ta l l a t i o n Your new Velodyne subwoofer provides for a number of installation options. Read all the installation information below in order to determine which installation option is best suited for your system. Remember to perform all installation procedures with system power turned off to prevent possible damage.
  • Page 7 M I N I - J A C K T h r u This connection passes along the input signal from the MINI-JACK input unchanged. S p e a k e r L e v e l O u t p u t These speaker level connections connect to your main speakers.
  • Page 8 A u t o Tu r n O n F u n c t i o n With this function in the “active” position, your subwoofer can be safely left with the main power switched on continuously. The subwoofer will turn itself on automatically when an audio signal is present.
  • Page 9: Lfe Connection - Option A

    “LFE Out” or “Subwoofer Out” on the back of your receiver will pass into your Velodyne subwoofer. This connection is the most common connection method when using your subwoofer with a 5.1 receiver. (Cable needed: 1 mono RCA cable.) Figure 2.
  • Page 10 A W o r d A b o u t T h e A u t o O n / O f f F e a t u r e When using a single channel input (such as a surround sound processor’s subwoofer out or LFE), the auto on/off circuit sensitivity will be affected.
  • Page 11: Mini-Jack Connection - Option B

    Figure 3 shows connection from your audio player or gaming console output to the MINI-JACK of your Velodyne subwoofer. Use the supplied cable to connect from the output of your dock, computer or gaming console to the input jack of the MicroVee. Connect the satellite speakers into the thru-jack on the back of the MicroVee subwoofer.
  • Page 12: Speaker-Level Connection - Option C

    S p e a k e r - L e v e l C o n n e c t i o n - O P T I O N C Figure 4 shows an easy way to connect your Velodyne subwoofer directly to your receiver or integrated amplifier if it lacks line-level outputs.
  • Page 13: Interconnnect Cables

    I n t e r c o n n e c t C a b l e s When installing your new Velodyne subwoofer using the line level connections, you should always use shielded phono cables. There are many quality cables available. We recommend that you keep the length of cable as short as possible to avoid any potential noise problems.
  • Page 14: Troubleshooting And Service

    3. The unit has been exposed to water 4. Some part of the chassis or circuitry is physically damaged Thank You for Purchasing a Velodyne! w w w . v e l o d y n e . c o m...
  • Page 15: Specifications

    S p e c i f i c a t i o n s Specifications MicroVee Driver 6.5” forward firing (5” piston diameter) Passive Radiators Dual 6.5” side-firing (5” piston diameter) Amplifier 2000 watts Dynamic (Class D) 1000 watts RMS power Low-Pass Crossover 50 Hz - 200 Hz (adjustable) 12 dB octave initial,...
  • Page 16 VELODYNE ACOUSTICS, Inc. (“VELODYNE”) warrants all electronics for a period of three years, drivers for a period of five years, and full range speakers for a period of five years. All VELODYNE products have a warranty from the date of purchase against defects in materials and workmanship subject to the following conditions:...
  • Page 17: Velodyne Products

    V e l o d y n e P r o d u c t s 115 - 120V 220 - 240V ® ® ® DD Series MiniVee DD Series SPLi Series ® DD-10 MiniVee DD-10 SPL-800i DD-12 DD-12 SPL-1000i DD-15 Optimum Series DD-15...
  • Page 18 Velodyne Acoustics, Inc. 345 Digital Drive Morgan Hill, CA 95037 408.465.2800 voice 408.779.9227 fax 408.779.9208 service fax www.velodyne.com Service E-mail: service@velodyne.com Product E-mail: help@velodyne.com Technical E-mail: techhelp@velodyne.com 63-MICROVEE Rev H JUL09 w w w . v e l o d y n e . c o m...
