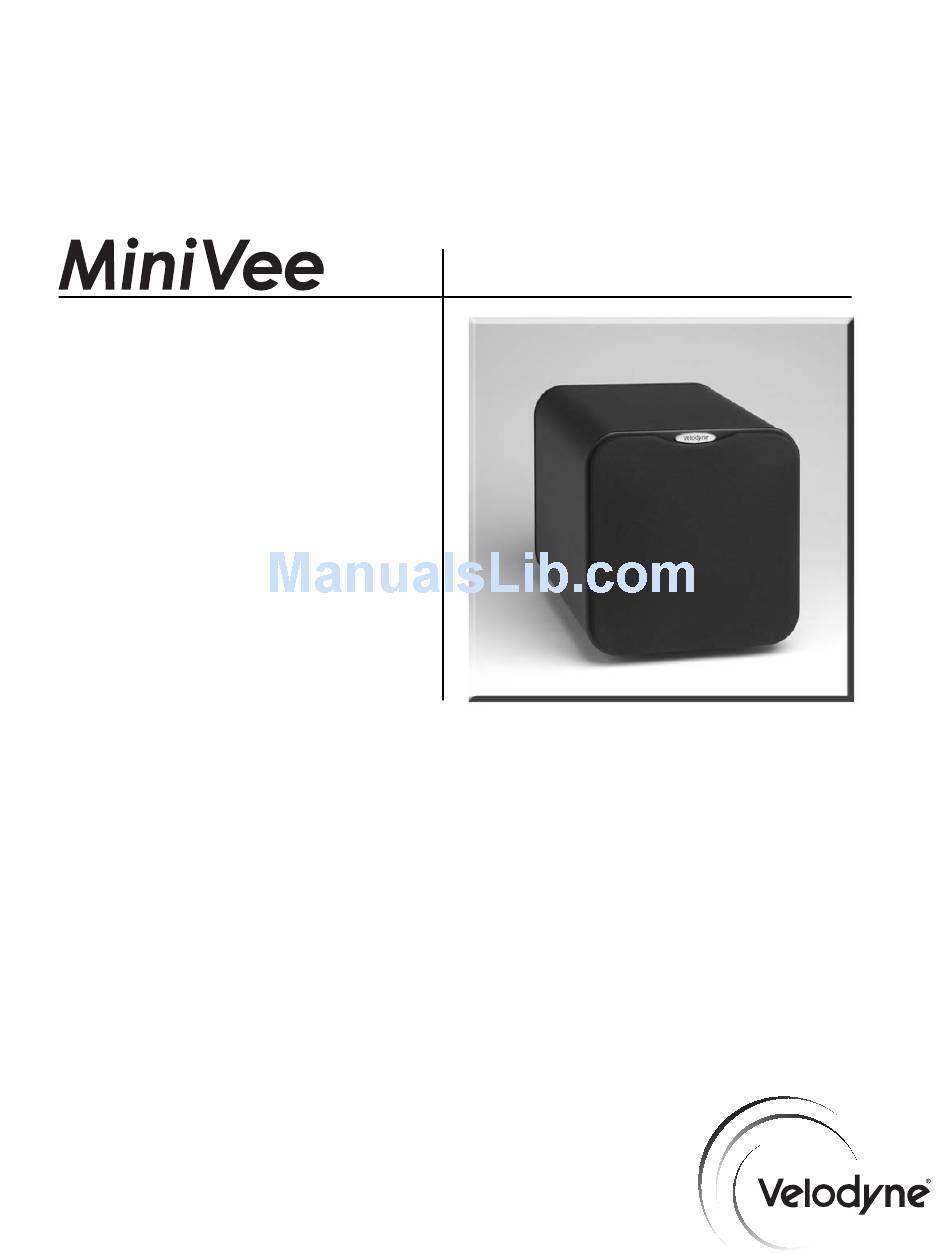

  • Page 1 U S E R ’ S M A N U A L A u d i o / V i d e o S u b w o o f e r S y s t e m...
  • Page 2 w w w . v e l o d y n e . c o m MiniVee User’s Manual...

  • Page 3: Table Of Contents

    Velodyne Products ........

  • Page 4: Congratulations

    C o n g r a t u l a t i o n s Congratulations on your purchase of a Velodyne subwoofer system. This system represents the state-of-the-art in low frequency reproduction and will provide you with years of listening pleasure when properly cared for.

  • Page 5: Prepare For Installation

    The worst location for a subwoofer is typically far away from any walls and close to the center of your room. Avoid these locations when possible. When using a pair of Velodyne subwoofers in stereo, it is preferable to place each subwoofer by the satellite of the same channel.

  • Page 6: Installation

    I n s ta l l a t i o n I n p u t s Your new subwoofer is equipped with speaker-level and line-level inputs. Use the LINE LEVEL jacks when connecting your subwoofer to a pre-amp, signal processor, line-level crossover or receiver with pre-amp level outputs.

  • Page 7: Line-Level Connection - Option A

    S u b w o o f e r O u t p u t s The Velodyne subwoofer is designed to operate using the full range audio signal for input when using the built-in crossover. Some processors/receivers have a “subwoofer out” jack that is internally filtered and designed to be used with a conventional amplifier and speaker.
  • Page 8 Figure 1. Installation Using LFE Line-Level Inputs Note: If not using an external crossover, you should use the built-in crossover for optimal performance. When using a single channel input (such as a surround sound processor’s subwoofer out or LFE), the auto on/off circuit sensitivity will be affected. When one input channel is used instead of two, the unit will see lower signal levels present at the inputs.

  • Page 9: Line-Level Connection - Option B

    Figure 2 shows connection from a pre-amplifier’s main outputs to the left and right inputs of your Velodyne subwoofer. You will also need to connect a second pair of RCA cables from the outputs on the back of your subwoofer to the inputs on the back of your amplifier. When the...

  • Page 10: Speaker-Level Connections

    S p e a k e r - L e v e l C o n n e c t i o n s Figure 3 shows an easy way to connect your Velodyne subwoofer directly to your receiver or integrated amplifier, if it lacks line-level outputs.

  • Page 11: Subwoofer Outputs

    S u b w o o f e r O u t p u t s The Velodyne subwoofer is designed to operate using the full range audio signal for input when using the built-in crossover. Many home theater processors/receivers (Dolby Digital ®...

  • Page 12: Care Of Your Subwoofer

    C a r e o f Yo u r S u b w o o f e r Your Velodyne subwoofer does not require any regular maintenance. Normal dusting or cleaning of the surface for appearance purposes are all that is required. We suggest you avoid any harsh detergents or chemicals when cleaning the cabinet.

  • Page 13: Troubleshooting And Service

    3. The unit has been exposed to water 4. Some part of the chassis or circuitry is physically damaged Thank You for Purchasing a Velodyne! w w w . v e l o d y n e . c o m...

  • Page 14: Specifications

    S p e c i f i c a t i o n s Specifications MiniVee MiniVee 10 Woofer 8” forward firing 10” forward firing (6.5” piston diameter) (8” piston diameter) Amplifier 2000 watts Dynamic 2000 watts Dynamic (Class D) 1000 watts RMS Power 1000 watts RMS Power High Pass Crossover...
  • Page 15 VELODYNE ACOUSTICS, Inc. (“VELODYNE”) warrants all electronics for a period of three years, drivers for a period of five years, and full range speakers for a period of five years. All VELODYNE products have a warranty from the date of purchase against defects in materials and workmanship subject to the following conditions:...

  • Page 16: Velodyne Products

    V e l o d y n e P r o d u c t s 115 - 120V 220 - 240V ® ® ® DD Series MiniVee DD Series SPLi Series ® DD-10 MiniVee DD-10 SPL-800i DD-12 DD-12 SPL-1000i DD-15 Optimum Series DD-15...
  • Page 17 Velodyne Acoustics, Inc. 345 Digital Drive Morgan Hill, CA 95037 408.465.2800 voice 408.779.9227 fax 408.779.9208 service fax www.velodyne.com Service E-mail: service@velodyne.com Product E-mail: help@velodyne.com Technical E-mail: techhelp@velodyne.com 63-MINIVEE Rev F JUN10 w w w . v e l o d y n e . c o m...
