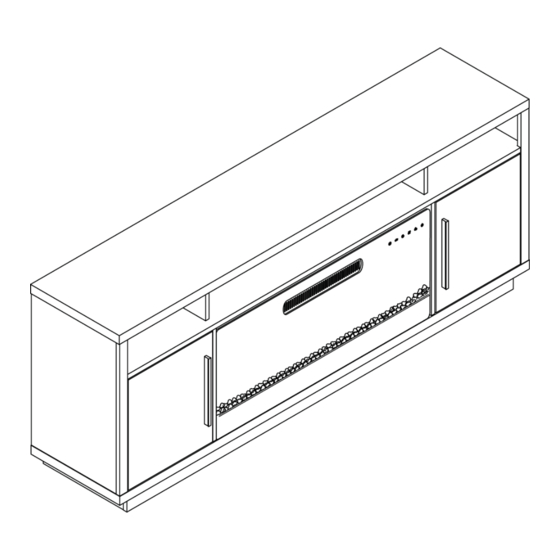

Avenue Fireplace Entertainment Center
FOLLOW US:
@bellezefurniture
CONTACT INFO:
support@belleze.com
1-800-682-6376
www.belleze.com
ITEM NO. 014-HG-41890
The instruction booklet contains IMPORTANT
safety information. Please read it in full and
keep it for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Avenue and is the answer not in the manual?

Questions and answers

Related Manuals for Belleze Avenue

Summary of Contents for Belleze Avenue

  • Page 1 Avenue Fireplace Entertainment Center FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41890 The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
  • Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 90 mins Weight limitations are as follows: Maximum Load 80 lb Maximum Load 30 lb...
  • Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.

  • Page 4: Package Contents

    PACKAGE CONTENTS...
  • Page 5 PACKAGE CONTENTS CODE DESCRIPTION Top Panel Bottom Panel Center Panel Left Panel Right Panel Left Medial Panel Right Medial Panel Storage Shelf Panel Left Support Strip Right Support Strip Upper Left Medial Panel Upper Right Medial Panel Crossbar Cabinet Door Bottom Side Back Panel Upper Side Back Panel Upper Center Back Panel...
  • Page 6 PACKAGE CONTENTS 52x + x 52x + x 50x + x 58x + x 24x + 2x...
  • Page 7 22x + 2x 22x + 2x Install all hardware perpendicular to the opening. v.12222022...
  • Page 8 Required tools for assembly (Not included) Attach cam bolts to the front, back, left, and right base panels (18, 19, 20, 21).
  • Page 9 Insert wood dowels to the all the base panels (18, 19, 20, 21, 22). Assemble the left, right, and center base panels (20, 21, 22) to the back base panel (19). v.12222022...
  • Page 10 Assemble the front base panel (18) to the base assembly. Attach cam bolts to the underside of the bottom panel (2).
  • Page 11 Assemble the base underneath the base panel (2). v.12222022...
  • Page 12 Attach cam bolts to the center panel (3). Insert wood dowels to the center panel (3).
  • Page 13 Insert wood dowels to the crossbar (13) Assemble the crossbar (13) underneath the center panel (3). v.12222022...
  • Page 14 Attach cam bolts to the left and right panels (4, 5). Insert wood dowels to the left and right panels (4, 5).
  • Page 15 Insert wood dowels to the left and right medial panels (6, 7). Insert wood dowels to the left and right support strips (9, 10). v.12222022...
  • Page 16 Attach the support strips (9, 10) to the medial panels (6, 7). Insert wood dowels to the upper left and right medial panels (11, 12).
  • Page 17 Assemble the upper left and right medial panels (11, 12) on top of the center panel (3). Assemble the left and right medial panels (6, 7) underneath the center panel (3). v.12222022...
  • Page 18 Assemble the left and right panels (4, 5) to the side of the center panel (3). Slide the bottom side back panels (15) between the side panels and medial panels.
  • Page 19 Attach cam bolts on top of the bottom panel (2). Assemble the cabinet assembly on top of the base assembly. v.12222022...
  • Page 20 Slide in the upper side and center back panels (16, 17). Attach cam bolts to the underside of the top panel (1).
  • Page 21 Assemble the LED light strip inside the top panel slot. Assemble the top panel (1) on top of the cabinet assembly. v.12222022...
  • Page 22 Secure all the back panels in place. Insert shelf pegs into the cabinet and put on the storage shelf panels (8)
  • Page 23 Attach door hindges to the cabinet doors (14) Attach door handle to the cabinet doors (14). v.12222022...
  • Page 24 Attach the cabinet doors (14) to the cabinet Adjust the position of the cabinet doors. Up and down In and out Side to side adjustment by adjustment by adjustment using loosening the screws loosening the screws the front adjustment on the mounting on the hinge arm.
  • Page 25 Set the unit from the front of the replace mantel and center it in the opening, check the alignment and attack the unit to the mantel by inserting screws through the drilled holes on the mantel. v.12222022...
  • Page 26 CAUTION Careful when handling glass to prevent injury or damage. For the exact instruction, please refer to the user’s manual provided with the fireplace.
  • Page 27 hold wires in place. For the exact instruction, please refer to the user’s manual provided with the LED light strip. v.12222022...
  • Page 28 Attach anti-tipping straps to the back of the cabinet.
  • Page 29 device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. • Insert a wall anchor into the drilled hole. • Fixed the anti-tipping strap to the wall with provided screws. YOU’RE FINISHED! v.12222022...
  • Page 30 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
  • Page 31 WARNING For use with televisions weighing 80lbs (36.3kg) or less. Use with heavier televisions may result in instability, causing tip over resulting in death or serious injury. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
  • Page 32 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE.

  • Page 33: Warranty

    WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
