Summary of Contents for Belleze 050-HA-50098

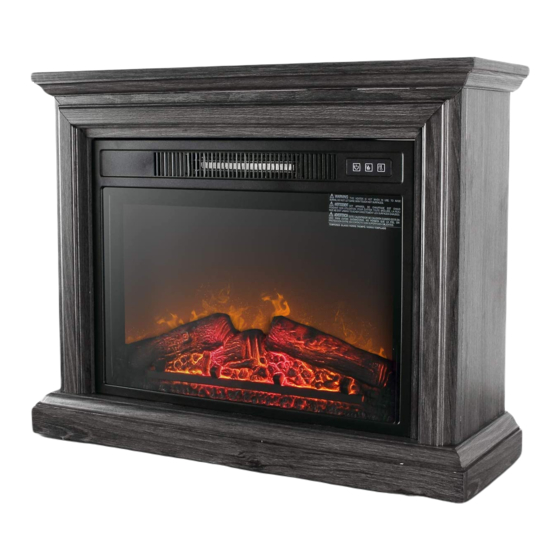

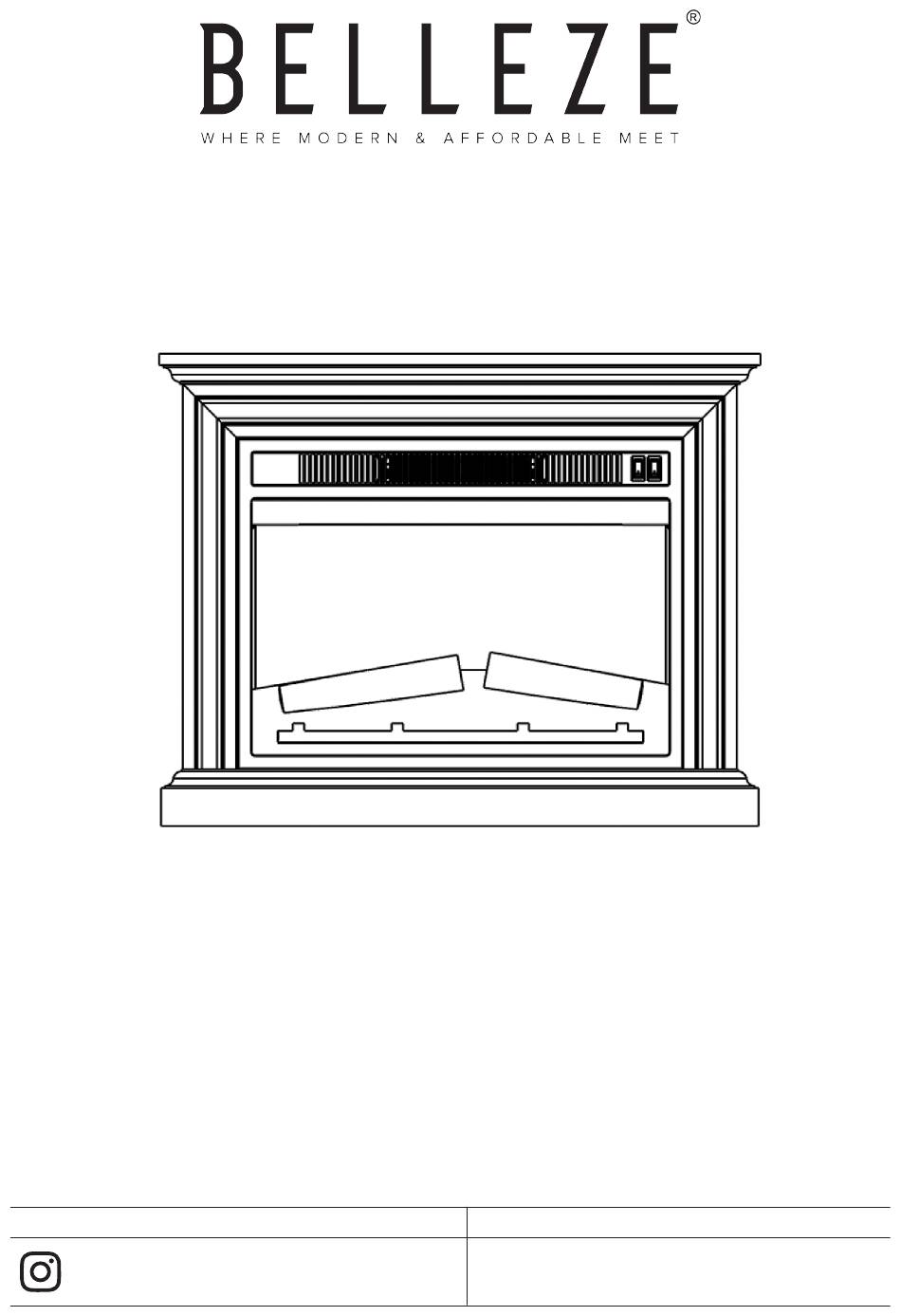

- Page 1 Mantel with 23” Insert Firebox item no. 050-HA-50098 www.bellezefurniture.com FOLLOW US: CONTACT INFO: NOTE: The instruction booklet contains IMPORTANT safety support@bellezefurniture.com @bellezefurniture 1-800-682-6376 information Please read and keep for future reference.
-
Page 2: Table Of Contents
Every Belleze product is carefully selected to ensure they meet our standards as well as your standards. We believe quality should never be determined by price which is why Belleze is committed to providing high end merchandise at the absolute lowest cost. PLEASE LIKE, COMMENT AND FOLLOW. -
Page 3: Safety Information
When using electrical appliances, basic safety precautions should always be followed including the following: READ ALL INSTRUCTIONS BEFORE USE 1. Read all instructions before using this ⚠ WARNING: There is no user serviceable heater. parts inside fireplace/heater. If the unit appears to malfunction, turn the unit off and unplug from 2. -
Page 4: Technical Specification
TECHNICAL SPECIFICATION Model Number 050-HA-50098 Dimensions (W x D x H) 31.1”x10.63”x24.57” Net Weight 43 lb Gross Weight 49 lb Power Rating 1400 W Voltage 120 V Frequency 60 Hz Weight Limitation Maximum Load 77 lb / 35 kg... -
Page 5: Package Content
PACKAGE CONTENT (FIRE PLACE) Top Trim Side Trim (L/R) Fireplace Unit Screw x15 Remote Control... - Page 6 PACKAGE CONTENT (MANTEL)
- Page 7 CODE DESCRIPTION Top Panel Case Panel Left Side Strip Right Side Strip Middle Insert Baffle Left Side Panel Right Side Panel CODE PICTURE DESCRIPTION Cam Bolt Wood Dowel Cam Lock Flat Head Screw...
-
Page 8: Assembly Instruction
ASSEMBLY INSTRUCTION (MANTEL) Estimated Time for Assembly 35 min Tools Needed... - Page 12 ASSEMBLY INSTRUCTION Estimated Time for Assembly 20:00 STEP 1 Take out the unit from the box and layout all the spare parts for easy assembly. Make sure all small items are not left in packaging materials. ⚠CAUTION • This unit has a glass front panel. Use extreme caution when handling glass to prevent personal injury or damage.
- Page 13 STEP 3 Carefully set the unit from the back of the mantel and center it in the opening. Check the alignment and attach the unit to the mantel by inserting screws through the drilled holes on the trim to the mantel. NOTE: Do not attempt to install the unit from the front of the mantel.
-
Page 14: Users Instruction
USER INSTRUCTION Before use Check that the air intake and exhaust is not covered or obstructed in anyway. Keep combustible objects at least 3ft away from the unit. Plug the unit to a grounded power socket. Grounding This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. -
Page 15: Control Panel
USER INSTRUCTION (CONTROL PANEL) Power Button Flame Control Heater Control Control Panel The control panel is located on the top right corner of the unit. Power ON / OFF Press the power button to turn on the unit. Press again to turn off the unit. NOTE: There is a thermostat limiter inside the unit. -
Page 16: Remote Control
USER INSTRUCTION (REMOTE CONTROL) Power Button Flame Control Heater Control Remote Control The operation of the remote control buttons work the same as the button on the control panel. Install / Replace Battery The remote control is provided with a CR2025 battery. -
Page 17: Care And Maintenance
CARE AND MAINTENANCE Cleaning the unit: Always turn off and unplug the unit from power outlet before cleaning. Allow the unit to cool down completely before performing any maintenance or cleaning. Use a vacuum cleaner or duster to regularly remove any accumulated dust on the unit Use a damp soft cloth to clean the surface and buff with a dry cloth. - Page 18 NOTE!
- Page 19 NOTE!
- Page 20 Warranty Belleze products come with a 1 year warranty from the date of purchase. In any event that the product arrives damaged or missing parts, we are more than happy to provide you with replacement part(s). Register your product on our website to enjoy extended warranty!!
