Installing SoundPoint IP 500CS

If you require additional information or
assistance with the SoundPoint IP 500CS ,
contact your system administrator.
The SoundPoint IP 500CS Administration
Guide includes regulatory compliance
information that your system administrator
can review and can be found at
http://www.polycom.com/support

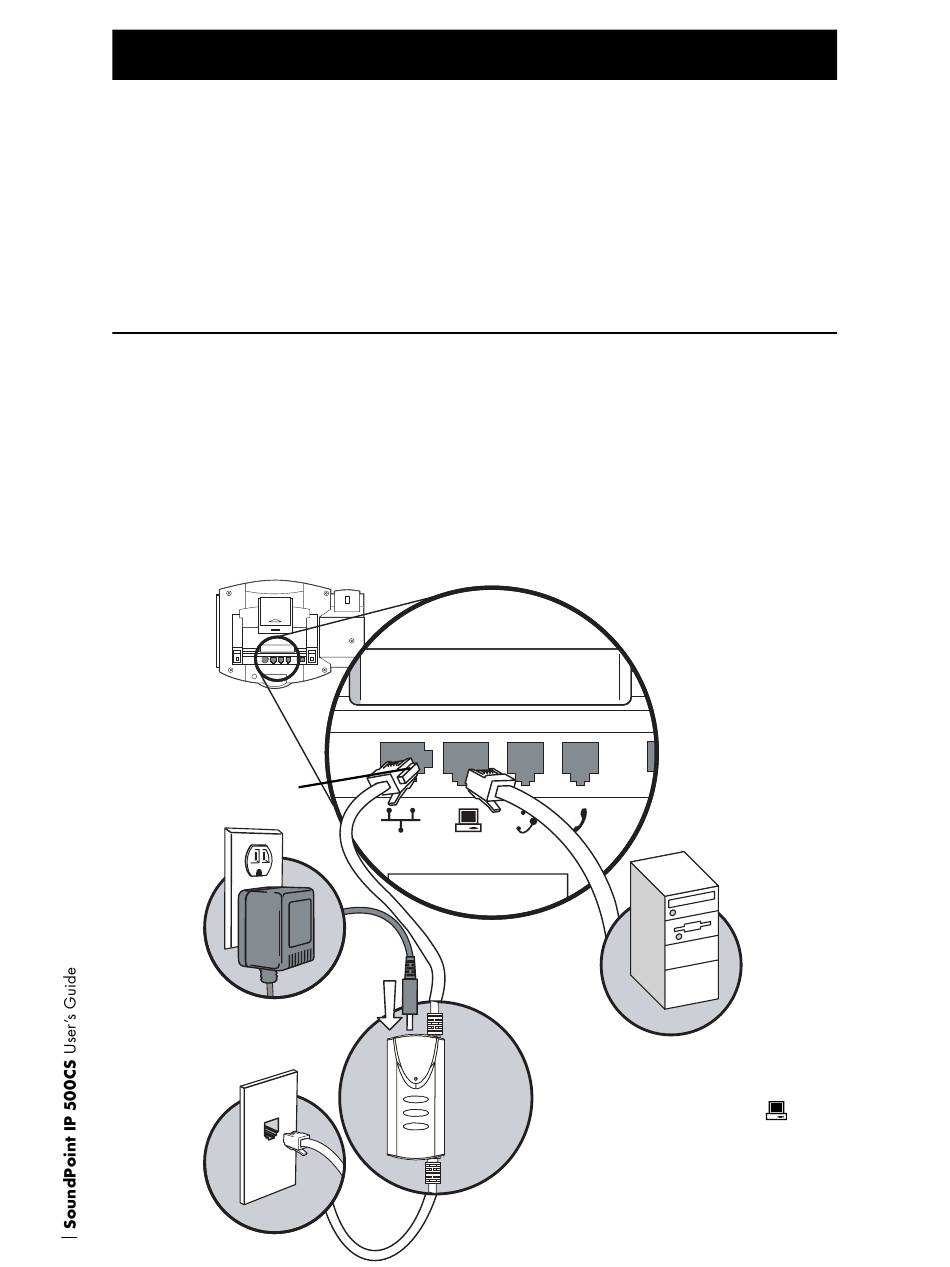

Connecting Network and Power Source

1
Connect one end of the Network/Power
Cable to the LAN jack and the other end
into the network (LAN) port.
2
In-Line Power option
If the phone is connected to a Cisco
Catalyst switch with in-line phones
option, it will obtain power from
Keyed end of cable
must plug into LAN
port on phone.
Power Adapter
2
LAN
Network/
Power Cable
In addition to this User Guide, you
can reference the Quick Reference Card
which was included in this package.
This section provides basic installation
instructions and information about
obtaining the best performance with
the SoundPoint IP 500CS .
the switch.
Or
AC Power Option
Connect the Power Adapter to the
Network/Power Cable and plug the
other end into a standard electrical
power outlet.
PC HEADSET HANDSET
Optional: If you detached
a computer cable to free up
the LAN jack in the wall, insert
that cable into the PC jack.
