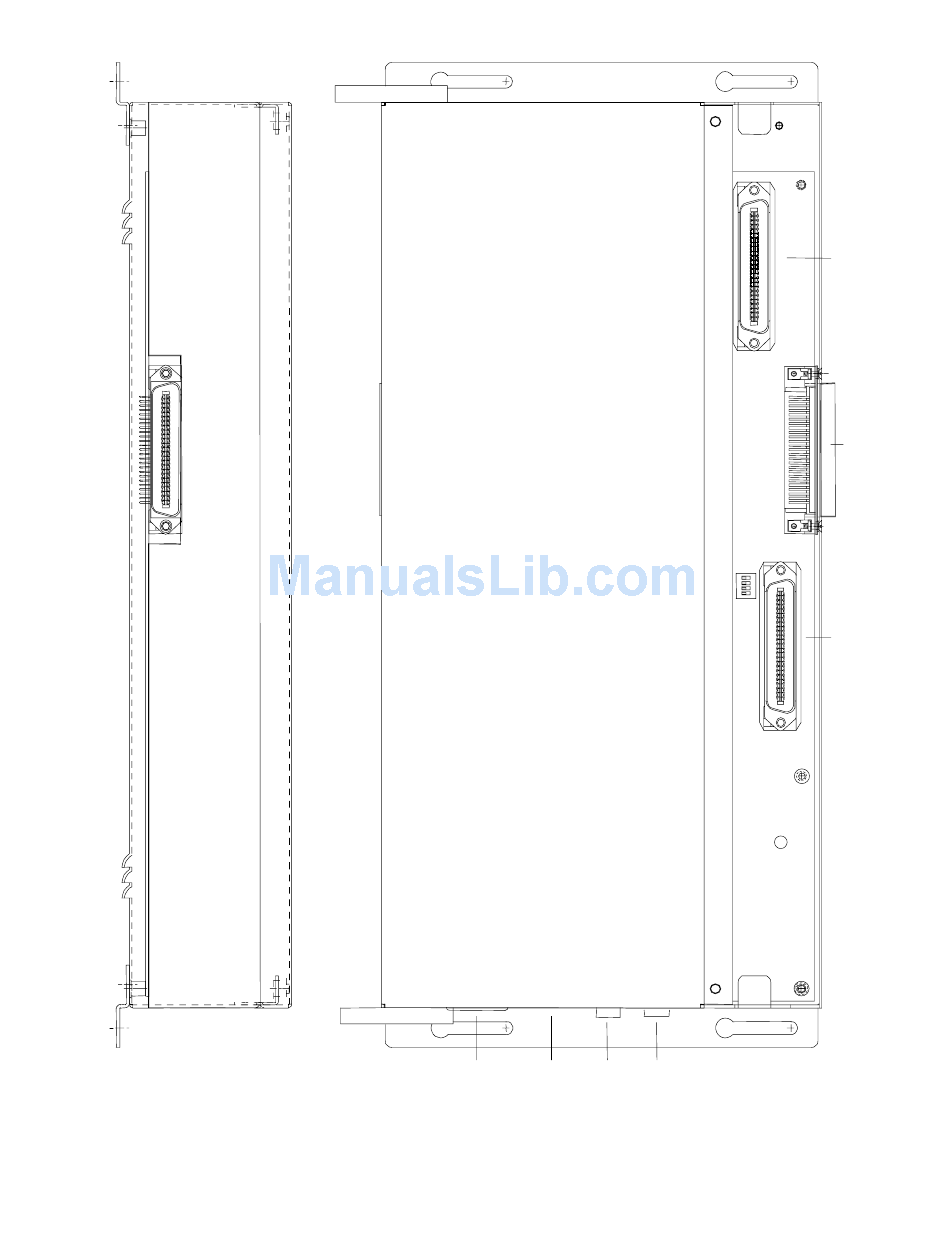

FIGURE 1 - V-2925A CONTROL AND CONNECTOR LOCATIONS
Side View
P1
Connectors:
P1 - Connects to the V-2924A Control Unit
P2 - Connects to an additional V-2925A Expansion Unit
P3 - Switch Inputs
P4 - Speaker Outputs
P1
AC 115/230
Power Switch
Switches:
SW1 - BGM Group Select Dip Switch (See Table)
2
Top View
SW1
Fuse Battery Backup
Connector
P4
P2
P3
Power
LED
