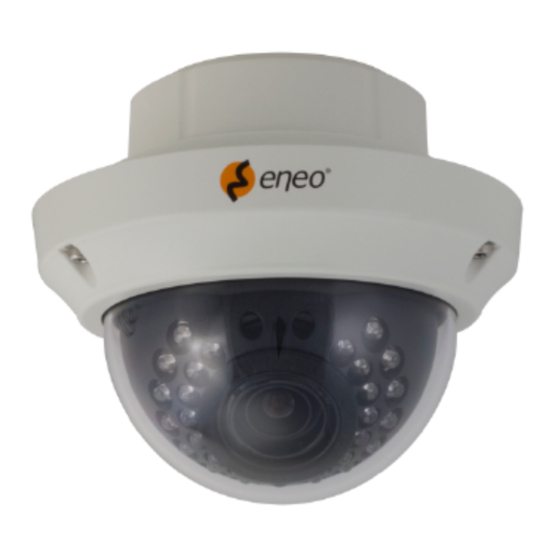

INSTALLATION AND OPERATION MANUAL
for
HDD-2080MIR

Advertisement

loading

Related Manuals for Eneo HDD-2080MIR

Summary of Contents for Eneo HDD-2080MIR

  • Page 1 INSTALLATION AND OPERATION MANUAL HDD-2080MIR...

  • Page 2: Table Of Contents

    Table of contents 1. Safety Instructions and Notes…....................... 2. General Descriptions................……………………………... 3. Supplied Items..................……………………………... 4. Part names…………………………….…...........…………………………... 5. Installation Instructions..................……………………... 6. Setup Menu ……………................…………………………... 7. Specifications ………………………………………………..............8. Dimensional Drawings ……………………………………………............
  • Page 3 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. The symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the unit. The symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 4: Safety Instructions And Notes

    1. Safety Instructions and Notes • Please read this safety and operating instructions before putting the camera into operation. • Keep the manual in a safe place for later reference. • Pay attention to safety when laying the connection cable and observe that the cable is not subjected to heavy loads, kinks or damage and no moisture can get in.

  • Page 5: Supplied Items

    • Scale down the image to 720p without loss of field of view • Top performance at low light sensitivity (Sense-up On) • Improved Noise figure with the enhanced 3D-NR • D-WDR, BLC/HLC, Digital Zoom(1.1x~8x) • Motion Detect, Privacy Mask, Anti-Fog, Sense-up(x8) •...

  • Page 6: Part Names

    4. Control and Part names ⓐ ⓑ ⓖ ⓒ ⓓ ⓔ ⓕ ⓗ Dome base assembly ⓛ ⓜ ⓝ ⓘ ⓙ ⓚ Surface Mount Base Dome Bubble Assembly ⓐ Zoom & Focus ⓗ Video Sub-output ⓑ Lens hood ⓘ Clear bubble ⓒ...

  • Page 7: Installation Instructions

    5. Installation 5.1 Surface mount Ceiling or wall Quick installation guides; 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. Surface mount base 2. Place Surface mount base on pre-drilled position and fix it through ⓝSurface mount holes(x4) by using ⑦Mount screws.
  • Page 8 5.2 Flush mount Ceiling or wall Quick installation guides; 1. Locate the mounting template at the installation position and drill the ceiling or wall if needed. Dome base assembly 2. Open Dome bubble assembly by loosening ⓙRing cover fixing screws(x3) CAUTION Extreme care should be taken NOT to scratch the dome ⑦Mount screws...
  • Page 9 5.3. Setup of the Zoom and FOCUS • Remove the dome bubble assembly and power up the camera. • Adjust ⓐZoom setting using ④focus adjust driver. • Adjust ⓐFocus setting using ④focus adjust driver. • Close the dome bubble assembly and tighten ⓙRing cover fixing screws(x3) using ③L-shape hex wrench. Tips for the precise adjustment of lens at outside 1.
  • Page 10 5.5 Power connector Camera can work with either 24AC or 12VDC, dual voltage power. It is strongly required the polarity-matched connection for 12VDC supply, otherwise IR LEDs will not operate at night. Primary and secondary grounds are completely isolated to avoid the possible ground- loop problems.

  • Page 11: Setup Menu

    6. Setup Menu 6.1 Camera setup in the menu Setup menu can be accessed and controlled by OSD control joy stick on the side of camera. Five commands are available with the joy stick. The design of OSD could be different according to the Model. SYMBOL descriptions for joystick operation;...
  • Page 12 6.2 MAIN menu Press ● to enter the setup menu for about 1 second. ↵ MENU V3.07 1. EXPOSURE ↵ 2. LENS DC↵ 3. FOCUS ADJ. 4. SCENE ENHANCE NORMAL 5. 3D-NR ↵ 6. DAY/NIGHT AUTO↵ ↵ 7. PICT ADJUST ↵...
  • Page 13 Enables to set OFF, LOW, MID and HIGH. 3D-NR is a very sophisticated and powerful time-based noise reduction technology by monitoring the noise for the several video frames and defining 3D-NR and eliminating them consecutively at low light. Higher setting reduces noise much more but results in losing the sharpness and the tail effect or the motion blur for the fast moving target at low light.
  • Page 14 6.3 EXPOSURE EXPOSURE SHUTTER AUTO BRIGHTNESS |:::::::|::::::| 10 SENS-UP |::::::::|:::::| 12 RETURN RET↵ EXPOSURE Default Descriptions Can set EXPOSURE MODE to AUTO, MANUAL and Flickerless. AUTO – Optimizes the video level by controlling the iris and the shutter speed automatically. MANUAL –...
  • Page 15 6.4 LENS MANUAL MODE OUTDOOR MODE DEBLUR RETURN RET↵ RETURN RET↵ Lens Default Descriptions Lens can be selected either DC or MANUAL lens. Lens MUST be set to DC for the best image when DC iris lens is installed. DC or MANUAL- OUTDOOR, INDOOR, DEBLUR Select lens mode according to installation place.
  • Page 16 6.5 FOCUS ADJ. Usually cameras are installed in the day time and FOCUS ADJ. they often become OUT OF FOCUS at night time and IN FOCUS again at next day time. This problem can occur at any cameras regardless of types or manufacturers. DN DWELL FOCUS ADJ.
  • Page 17 6.7 PICT ADJUST PICTURE WHITE BAL |:::::::|::::::| 10 SHARPNESS COLOR GAIN |:::::::|::::::| 10 GAMMA 0.50 SHADING RETURN RET↵ PICTURE Default Descriptions ATW, ATWext, ONE PUSH and MANUAL are available for the white balance modes. ATW – White balance is continuously working along with the color temperature changes in the range of 2,000K~8,500K.
  • Page 18 6.8 SPECIAL PICTURE MIRROR/FLIP PRIVACY MOTION ↵ PIXEL DEFECT ↵ TITLE SET DISPLAY DEFOG POINTING ZOOM RETURN RET↵ SPECIAL Default Descriptions Reverses the video left and right and/or up and down by MIRROR/FLIP. OFF - Normal display without mirroring or flipping Hor.
  • Page 19 Detects and compensates the white pixels which becomes defective. Once CALIBRATE is selected, the pixel calibration is initiated with lens closed and can’t cancel. THRESHOLD – Defines the level of detection and low value detects more pixels. Be sure to set the value so that the pixels are uniformly blinking PIXEL DEFECT over the entire screen.
  • Page 20 6.8.1 SMART MOTION ZOOM SMART MOTION ZOOM crops and enlarges the certain area defined by a yellow window to the full sized image when the motion is detected in the black window. SMART MOTION ZOOM window can be re-sized by adjusting D-ZOOM RATIO and moved by H-POINTER and V-POINTER.
  • Page 21 6.8.2 POINTING ZOOM This camera has a very useful and powerful feature, POINTING ZOOM, which can zoom in/out any area. UNLIKE the conventional zoom which can zoom in/out the center area of image only, by the flexible zoom location and area, POINTING ZOOM differentiate its usefulness from others. That is, a conventional camera installed on the corner of ceiling can zoom the center of the floor in a room and result in losing the image of door on the side wall.
  • Page 22 6.9 SYSTEM SYSTEM EU(PAL) TV SYSTEM ↵ 1080P RESOLUTION COMM. SETUP LANGUAGE ENG☟ FACTORY DEFAULT RETURN RET↵ SYSTEM Default Descriptions Selects HDTV standards for US(NTSC) or EU(PAL). TV SYSTEM By this selection, 2 analog video output switches to NTSC or PAL accordingly. 1080P and 720P are available.

  • Page 23: Specifications

    . Specifications HDD-2080MIR 207505 Imaging Sensor Sony Exmor 1/2.9" Progressive Scan CMOS Sensor Effective Pixels 1,936(H) x 1,097(V) Min. Illumination 0.0005 Lux @ (AGC MAX, DSS x2) Output Video Resolution 1920x1080(30p/25p), 1280x720(30p/25p) TV system EU(50Hz)(switchable to US(60Hz)) Sync. System Internal...

  • Page 24: Dimensional Drawings

    8. Dimensional Drawings (Unit: mm)
