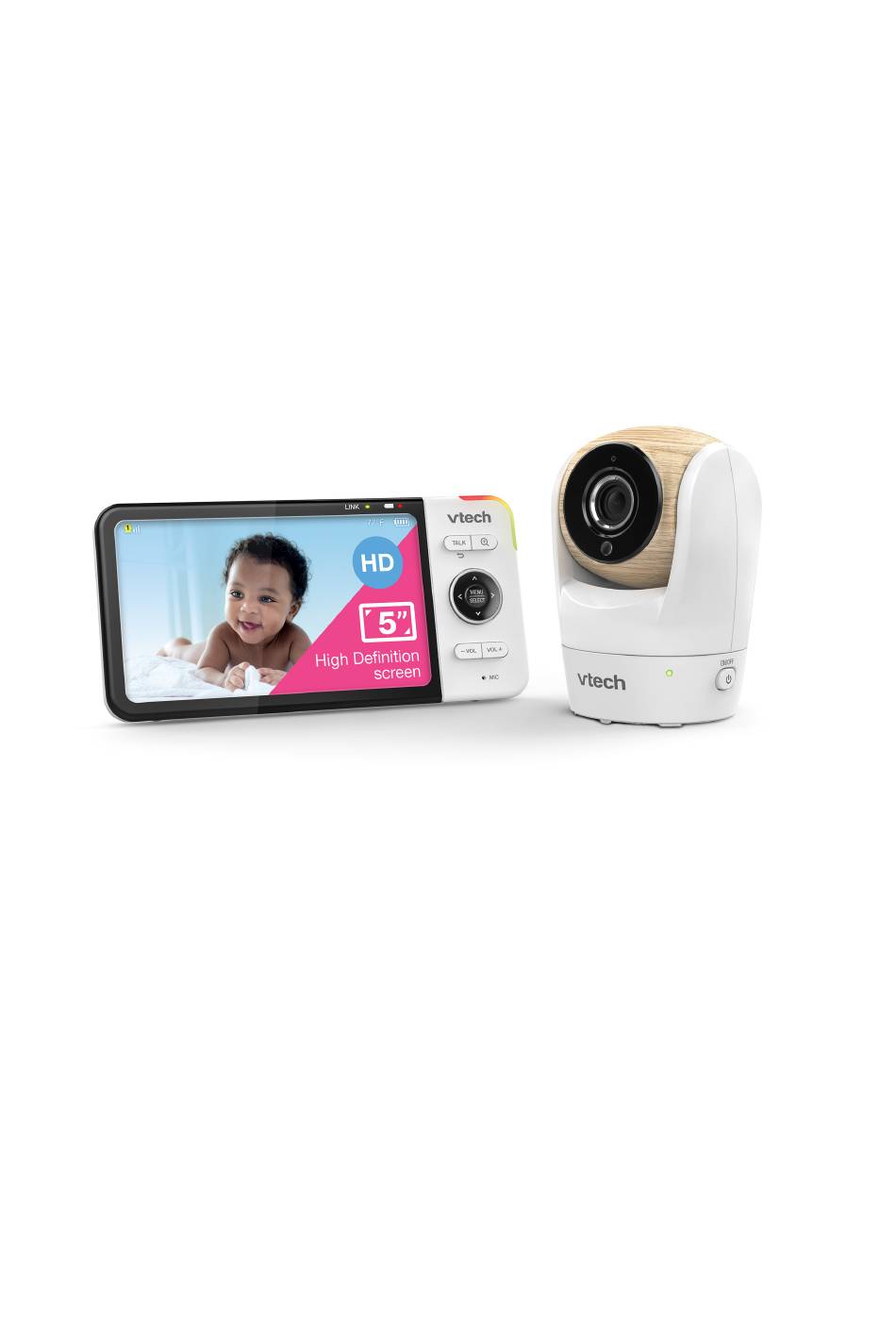

- Page 1 BM5750HD BM5750HD-2 Full Colour Pan & Tilt Video Monitor User Guide This guide contains important information. Please keep it for future reference.
-
Page 2: Table Of Contents
Advanced Operation �������������������������������������������������������������������������������������������22 Sound Sensitivity and Sound Activation ................22 Sound activated screen and audio ..................23 Dim Mode ..........................24 Night Vision ..........................24 Monitoring Modes (BM5750HD-2 only) .................25 Additional Information ����������������������������������������������������������������������������������������26 Wall Mount (Optional) ......................26 General Product Care ......................29 Storage ..........................29 Technical Specifications ......................29 Customer Service and Product Warranty ................30... -
Page 3: Important Safety Instructions
Power adapters information: product is subsequently used. Baby Unit Output: 5V DC 1000mA VTech Telecommunications Ltd. 21. You should test the sound reception every time you Model: VT05EAU05100 turn on the units or move one of the components. - Page 4 (more than 3 ft (0.9m) away). Do not Electromagnetic fields (EMF) remove this tag. This VTech product complies with all standards regarding • Never place the camera unit(s) inside the baby’s electromagnetic fields (EMF). If handled properly and crib or playpen.
-
Page 5: Setup
Parent Unit Wall Mount Bracket Baby Unit Baby Unit Adapter Parent Unit Adapter Quick Start Guide 1 set for BM5750HD Learn to set up your units and have all detailed instructions on using your audio 2 sets for BM5750HD-2 baby monitor. -
Page 6: Overview
Overview Baby Unit... - Page 7 Microphone Camera Lens Light Sensor LED Indicator • On when the baby unit is turned on and is paired to the parent unit. • Flashes when the baby unit is not being viewed; or when the link to the parent unit is lost.
- Page 8 Parent Unit...
- Page 9 LINK LED Light • On when the parent unit is linked to the baby unit. • Flashes when the link to the baby unit is lost. LED light • On when the parent unit is connected to AC power, and the battery is charging. •...
-
Page 10: Parent Unit Icons
Parent Unit Icons Main Sub- Options Menu menu Monitoring mode (For BM5750HD-2 only) • Baby unit 1 in Single mode • Baby unit 2 in Single mode • Patrol mode • Split mode Melodies and soothing sounds Melodies and Soothing Sounds •... - Page 11 Parent Unit Icons Main Sub- Options Menu menu Temperature • Turn on/off Temperature Alert. Set the parent unit to beep whenever the room temperature detected by the baby unit falls outside of the set temperature range. • Select Minimum temperature for alert range. •...
- Page 12 Status icons Current view status The baby unit number that is being viewed when in: Single CAM mode. Patrol mode (* For BM5750HD-2 only). Split mode (* For BM5750HD-2 only). Split mode (* For BM5750HD-2 only) Patrol mode (* For BM5750HD-2 only) Night vision feature is activated automatically.
- Page 13 Parent Unit Icons Main Sub- Options Menu menu Alert icons • Displays when parent unit’s battery is low and needs charging. • Displays when motion is detected at a baby unit. • Displays when sound is detected at a baby unit. •...
-
Page 14: Connect The Baby Monitor
Connect the Baby Monitor Connect the parent unit and baby unit to a power supply with the included power adapters. Notes: • The rechargeable battery in the parent unit is built-in. • Use only the power adapters supplied with this product. •... -
Page 15: Charge The Parent Unit Battery
Charge the parent unit battery before use When you have connected and turned on the parent unit, the battery will be charged automatically. NOTES NOTE Notes • Before using the baby monitor for the first time, charge the parent unit battery for 12 hours. When the parent unit battery is fully charged, the battery icon becomes solid •... -
Page 16: Position The Baby Monitor
Positioning the Baby Monitor Caution: Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby’s crib or playpen. Place the baby unit more than 3 feet (1m) away from your baby. >... -
Page 17: Basic Operation
Basic Operation Power on/off 1� Slide the power switch to ON to turn on your baby unit. Slide to the opposite direction to turn off. Notes: • When powering up, the baby unit’s status LED turns on. It will turn off after a while and keeps off. - Page 18 2� Press and hold Power to turn on the parent unit, the welcoming screen appears and the LINK LED flashes. 3� Once your baby unit and parent unit are powered on, the parent unit and baby unit will pair each other automatically. When they are connected successfully, the LINK LED lights steadily.
-
Page 19: Use The Menu
Status Check Once your baby unit and parent unit are powered on, the parent unit and baby unit will pair each other automatically. When they are connected successfully, the LINK LED lights steadily. And your parent unit streams live video from the baby unit. The power LED light of baby unit turns on. -
Page 20: Adjust Speaker Volume
Adjust Speaker Volume Press - VOL/ VOL + to adjust your parent unit speaker volume. It determines the volume of sound transmitted from your baby unit. Muted Talk to Your Baby via the Baby Unit 1. Press and hold the TALK key. 2. -
Page 21: Zoom, Pan And Tilt The Camera
Zoom, pan and tilt the camera How to pan and tilt the camera: • Press on the parent unit to move the camera leftward;or press and hold move the camera leftward continuously. • Press on the parent unit to move the camera rightward;or press and hold move the camera rightward continuously. -
Page 22: Turn On/Off The Parent Unit Screen
Turn on/off the Parent Unit Screen You can turn on or off the parent unit screen without powering off the parent unit. You can still hear sound from the baby unit. • Press POWER on the parent unit to turn off the screen. •... -
Page 23: Sound Activated Screen And Audio
Sound activated screen and audio - Auto Wake Up When Auto Wake Up is turned on, the parent unit screen stays off to save power when the baby unit detects no sound. Once the baby unit detects sounds that are louder than the chosen sound sensitivity level, the parent unit screen and speaker turn on automatically. -
Page 24: Dim Mode
Dim Mode The parent unit display will dim to conserve energy after 5 minutes of inactivity, in which there is neither key pressed nor alert received from the baby unit. 5 minute inactivity Press any buttons Night Vision The baby unit has infrared LEDs that allow you to see your baby clearly at night or in a dark room. -
Page 25: Monitoring Modes (Bm5750Hd-2 Only)
For BM5750HD-2 only Change different views - Single CAM • Select baby unit 1 or baby unit 2 view the image from the baby unit. Change different views - Patrol • Select Patrol mode as your monitoring mode to alternately view the image from baby units every 10 seconds. -
Page 26: Additional Information
Additional Information Wall Mount (Optional) Notes: • Check for reception strength and camera angle of the baby unit before drilling the holes. • The types of screws and plugs you need depend on the composition of the wall. You may need to purchase the screws and plugs separately to mount your baby units. - Page 27 3� Align the wall mount bracket and screws with the holes in the wall as shown. Tighten the screw in the middle hole first, so that the wall mount bracket position is fixed. You can tighten the other screw in the top hole. Insert the screws into the holes and tighten the screws until only 1/4 inch of the screws are exposed.
- Page 28 Place the baby unit on the wall mount bracket, and then slide it forward until it locks into place. Align the holes on the wall mount bracket with the screws on the wall, and slide the wall mount bracket down until it locks into place. 5.
-
Page 29: General Product Care
General product care To keep this product working well and looking good, follow these guidelines: • Avoid putting it near heating appliances and devices that generate electrical noise (for ex- ample, motors or fluorescent lamps). • DO NOT expose it to direct sunlight or moisture. •... -
Page 30: Customer Service And Product Warranty
24 months from date of purchase. VTech does not warrant that the product will be free from defects if defects are caused by an accident, misuse, abuse, improper installation or operation, vermin infestations, lack of reasonable care, unauthorised modification, loss of parts, tampering or attempted repair by a person not authorised by VTech;... -
Page 31: Disposal Of Batteries And Product
IMPORTANT NOTE: THIS IS NOT A PRODUCT RETURN OR SERVICE ADDRESS – PLEASE CONTACT TECHELP BY PHONE OR EMAIL FOR PRODUCT AND WARRANTY SUPPORT. NO LIABILITY WILL BE ACCEPTED BY VTECH FOR PRODUCTS RETURNED TO THIS ADDRESS UNDER THIS VOLUNTARY PRODUCT WARRANTY.
