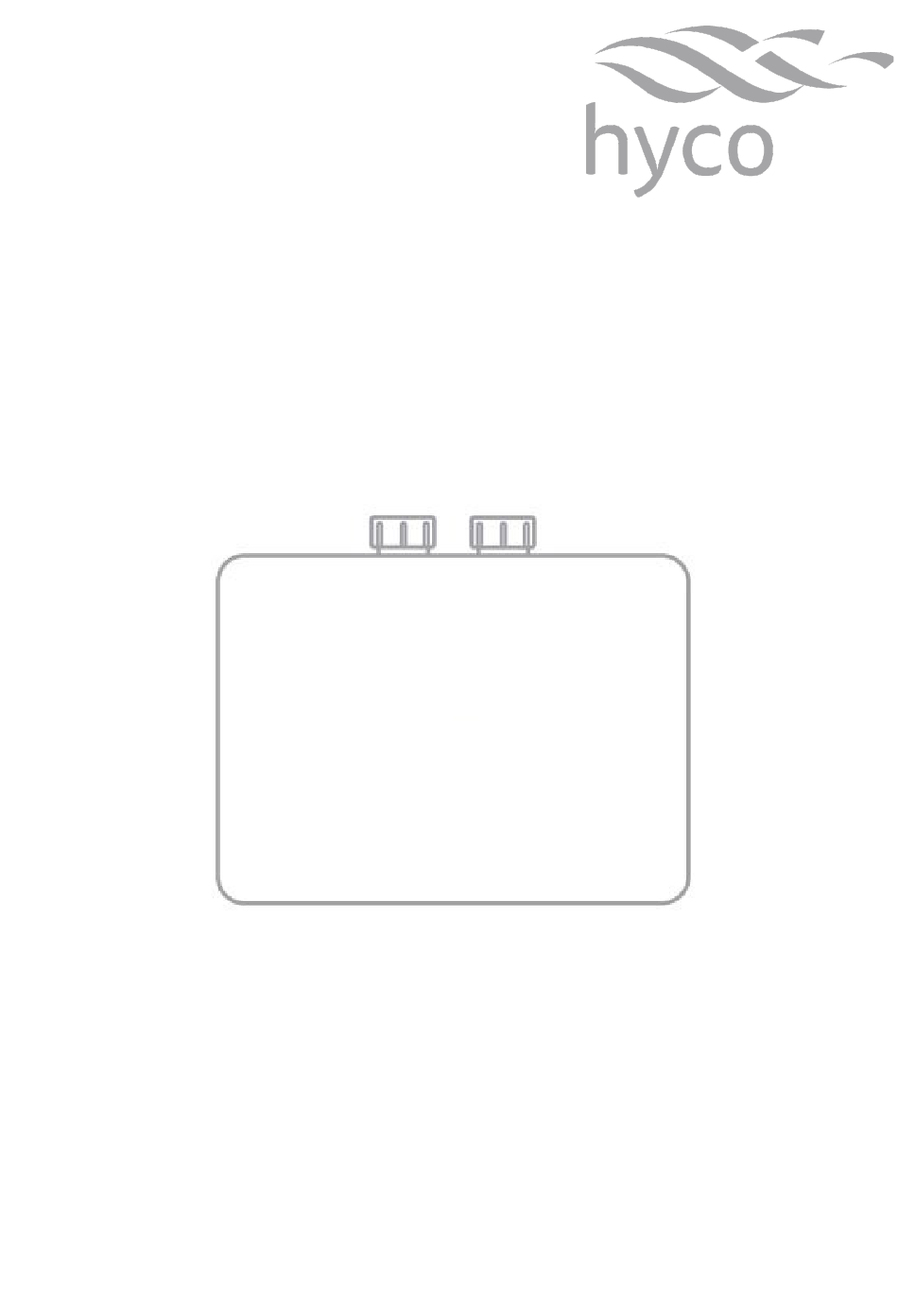

- Page 1 Product Instruction Manual IN44, IN60 Instantaneous Inline Water Heater v23.10.6...
-
Page 2: Important Safety Points

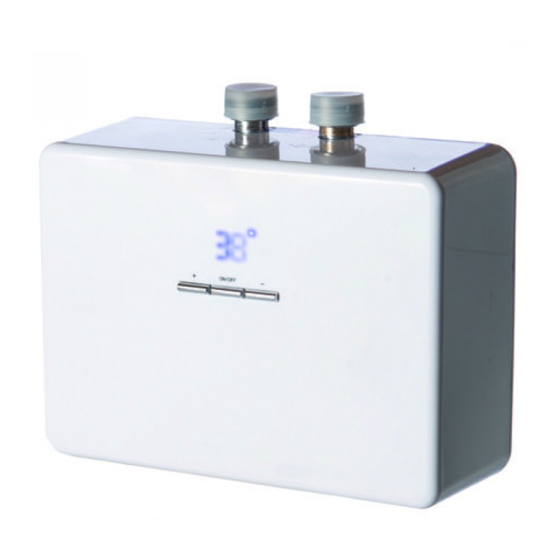

Overview Thank you for purchasing a Rho Instantaneous Inline Water Heater. Available in 4.4 and 6.0 kW models, to be used for hand washing at a single basin. Instantaneous water heaters are energy efficient as they only consume energy when in use, so have no standing losses. The IN44 and IN60 models are mains pressure and the bare wire heating systems offer rapid heat up times and a near instant supply of hot water. - Page 3 The appliance must be earthed. Only connect this appliance to a water supply that meets the min/ max pressures specified in the specifications section of this manual. This appliance is intended to be permanently connected to the water mains and should not be connected by a detachable hose-set.
-
Page 4: Installation
1. Installation Wall Mounting Do not locate the appliance where the consequences of a water leak could be unusually serious. This appliance should not be installed in a location where freezing can occur. This appliance is not designed for outdoor use or use in damp environments. Ensure there are no hidden cables or pipework before commencing any drilling. -
Page 5: Plumbing Connection
2. Plumbing Connection The resistivity of the water supply must not be less than 1300 Ωcm. Do not use a supply with incoming water temperatures greater than 48˚C. Only connect this appliance to a water supply that meets the min/ max pressures specified in the specifications section of this manual. -
Page 6: Electrical Connection
3. Electrical Connection Do not commence electrical installation before completing all stages of the plumbing installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The appliance must be permanently connected to the electrical supply through an appropriately rated isolating switch with a separation in all poles. -
Page 7: Operation
4. Operation • Once installed and connected to the electrical supply the appliance is ready for use. • The appliance has no external controls and will simply operate when a flow greater than 2.5 l/m is detected passing through the appliance. •... -
Page 8: Cleaning And Maintenance
5. Cleaning and Maintenance Never remove the cover of the appliance without first isolating from the electrical power supply. The appliance should only be installed and maintained by a competent person in accordance with any local electrical and plumbing regulations. Do not use abrasive chemicals or cloths to clean this appliance. -
Page 9: Specification
6. Specification Model IN44 IN60 Power 4.4 kW 6.0 kW Voltage 230 V 230 V Rated current 19 A 26 A Frequency 50 Hz 50 Hz Min operating flow rate 2.5 l/ m 2.5 l/m Min working pressure 0.1 MPa (1 bar) 0.1 MPa (1 bar) Max working pressure 0.75 MPa (7.5 bar) -
Page 10: Temperature Performance
7. Temperature Performance Temperature/ Flow Rate Maximum temperature increase from ambient incoming water supply temperature at a flow rate of: Flow rate (l/m) IN44T IN60T 25°C 34°C 21°C 28.5°C 16°C 21°C 13°C 17°C Table 1 Examples Maximum water temperature Incoming water temperature Flow rate IN44T IN60T 13 °C - Winter... -
Page 11: Troubleshooting
8. Troubleshooting If problems persist contact Hyco Technical Department on 01924 225200. - Page 12 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Incorrect installation and failure to follow correct operating instructions are excluded.
