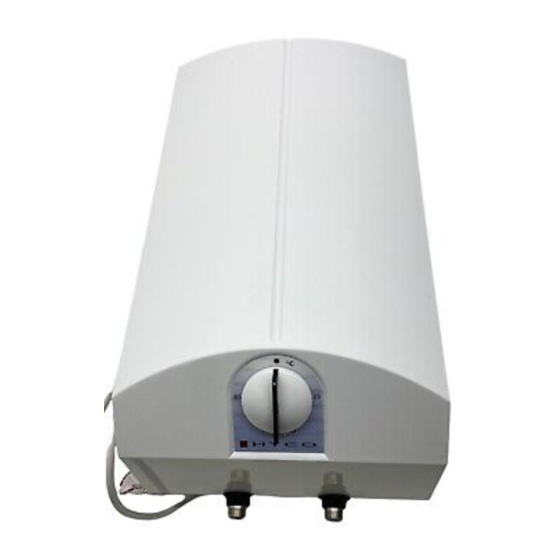

HF05L Hyco Handyflow 5L
HF10L Hyco Handyflow 10L
Point of Use Water Heater
Operating and installation instructions

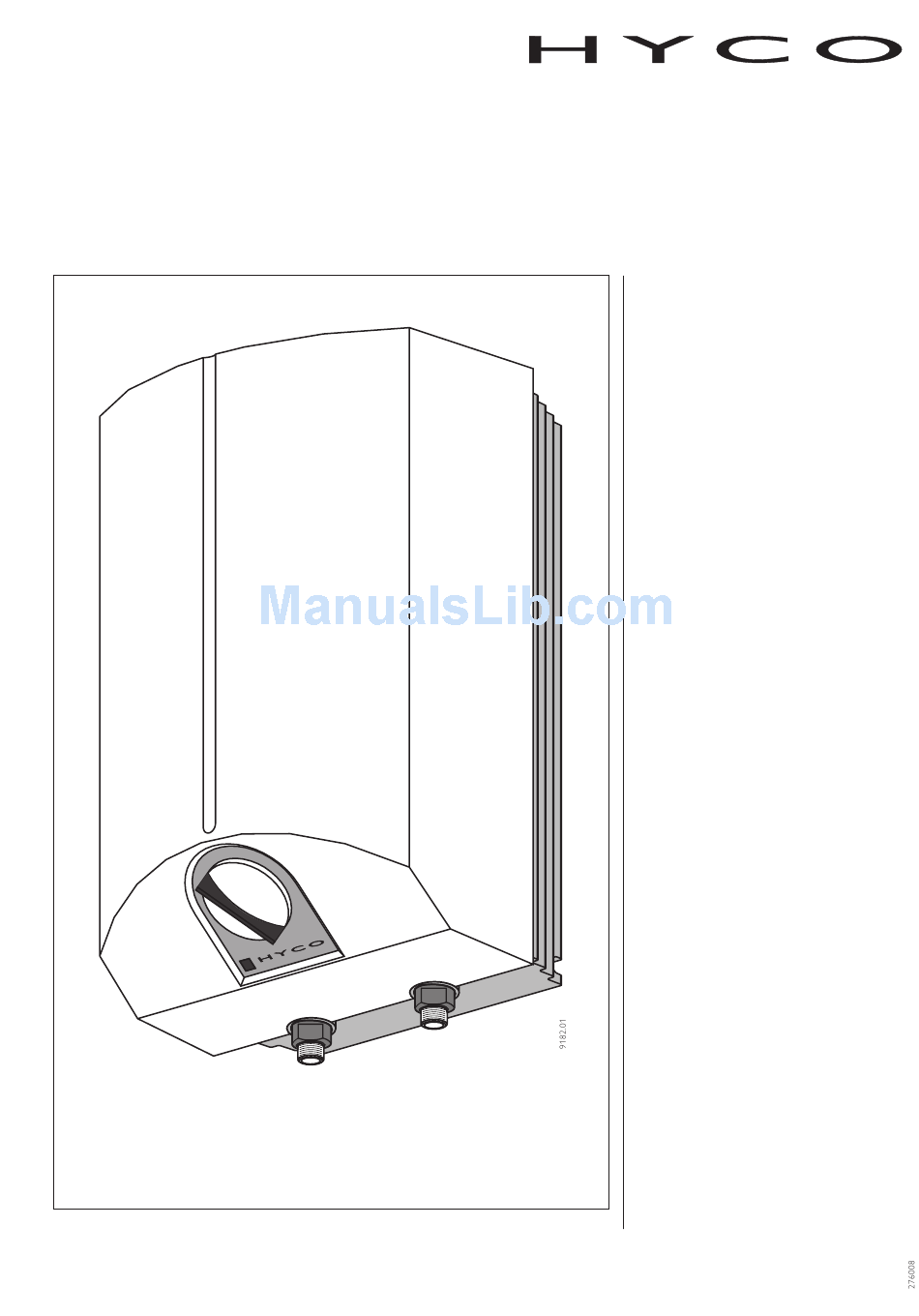

Fig. 1
This water heater must be installed (water and electrical installation), commissioned and
serviced by approved service technicians in accordance with these instructions.
Operating instructions
Technical data
Installation instructions
2
3
4
Advertisement
Table of Contents
Related Manuals for Hyco Handyflow HF05L
Summary of Contents for Hyco Handyflow HF05L
-
Page 1: Operating And Installation Instructions
HF05L Hyco Handyflow 5L HF10L Hyco Handyflow 10L Point of Use Water Heater Operating and installation instructions Operating instructions Technical data Installation instructions Fig. 1 This water heater must be installed (water and electrical installation), commissioned and serviced by approved service technicians in accordance with these instructions. - Page 2 2 Indicator lamp. Illuminates during the heat- ing-up process. Fig. 3 shows the amount of warm water that you can obtain by mixing cold water (at 15 °C) to the hot water in the HF05L and HF10L. Example: with the thermostat control knob set at 65 °C, the HF05L can supply 10 Litres of...
-
Page 3: Technical Data
1 Temperature selection knob 2 Signal lamp 3 Cold water inlet 4 Hot water outlet 5 Electric connection 6 Mounting bracket 7 Heating flange 100 mm Model HF05L HF10L Nominal capacity 10 l Design open Weight 3.0 kg 5,1 kg... -
Page 4: Installation Instructions
Installation instructions The installation, electrical connection and first operation of this heater should be carried out by a qualified installer. The company does not accept liability for failure of any goods supplied which have not been installed and operated in accordance with the manufacturers instructions. - Page 5 Electrical connection The water heater must be installed in accor- dance with I.E.E Regulations. Wiring diagram (Fig. 8) 1 Earth cable connector 2 Signal lamp 3 Thermostat 4 Safety thermal cut-out with reset function 5 Heating element * For voltage and current information, please refer to the rating label.
-
Page 6: Handing Over
Fig. 11 Sensor positioning HF05L HF05L The thermostat sensor and the safety thermal cut-out sensor in the HF05L are located in different capillary tubes. The thermostat sen- sor should be positioned in accordance with Figure 12. HF10L 200 mm... - Page 8 Manufacturing Ltd HYCO Manufacturing Ltd Units 1&2, Calder Works Methley Road, Castleford West Yorkshire WF10 1NX Tel: 0 1 9 7 7 5 1 7 5 5 5 Tel: 0 1 9 7 7 5 1 7 6 6 6...
