dB Technologies IS 210T Quick Start User Manual

IS210T
MAIN FEATURES
• Impressive sound pressure
• Rotatable horn
• Quick installation
• Easy handling and transport
• Stack or flyable use
PACKAGE CONTENTS
The box contains:
N°1 IS210T loudspeaker
This quick start and warranty documentation
DESCRIPTION

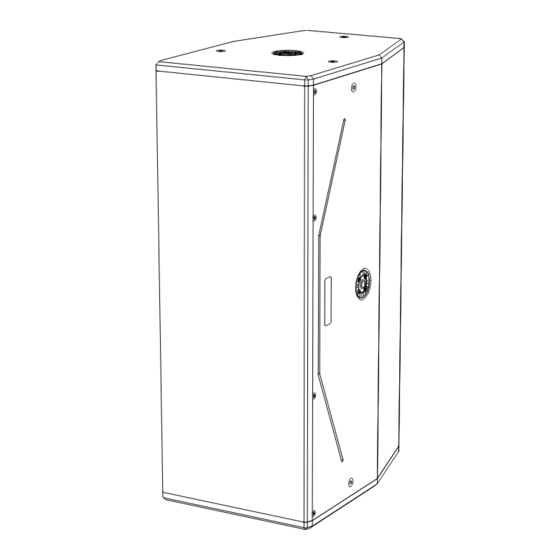

IS210T is the new dB Technologies 2-way passive
speaker for professional use. It is equipped with
a compression driver (HF exit: 1.4", 2.4 voice coil)
and two 10" neodymium woofers (2.4" voice
coil). The coverage pattern is 90° (H) x 40° (V).
The horn is rotatable and the mechanical design
allows an easy, accurate and quick installation
for stand or flyable use thanks to the optional
brackets.
ACCESSORIES
HB-3X10
bracket for flyable use
The warnings in this manual must be observed together with the "User Manual - Section 2".
QUICK START USER MANUAL SECTION 1
DIMENSIONS
TECHNICAL SPECIFICATIONS
Speaker Type
Protection against solid
objects and liquids (IP):
Frequency Response [-6dB]
Usable Bandwith [-10dB]
RMS power
Rated impedance
Max SPL (1 m)
Directivity (HxV)
HF
LF
Crossover Frequency
Signal Input
Signal Output
Housing
Rigging Points
Dimensions (WxHxD)
Weight
VB-3X10
bracket for stacked/
flyable use
1
W 300mm (11.8 in)
H 780mm (30.7 in)
D 430mm (16.9 in)
W
2 Way Passive Loudspeaker
55
60 Hz - 17.8 kHz
56 Hz - 20 kHz
400 W
8 Ohm
133 dB (Fullrange)
90° x 40°
1.4" exit, 2.4" v.c.
2x 10", 2.4" v.c.
840 Hz
Terminal barrier strip (or speakON
using the SP-IS accessory panel)
Terminal barrier strip (or speakON
using the SP-IS accessory panel)
Wooden box - black finished
4
300x780x430 mm
(11.8x30.7x16.9 in)
28.7 Kg (63.3 lbs.)
speakON® panel
info@dbtechnologies-aeb.com
420120423Q REV1.0
D
®
®
SP-IS
