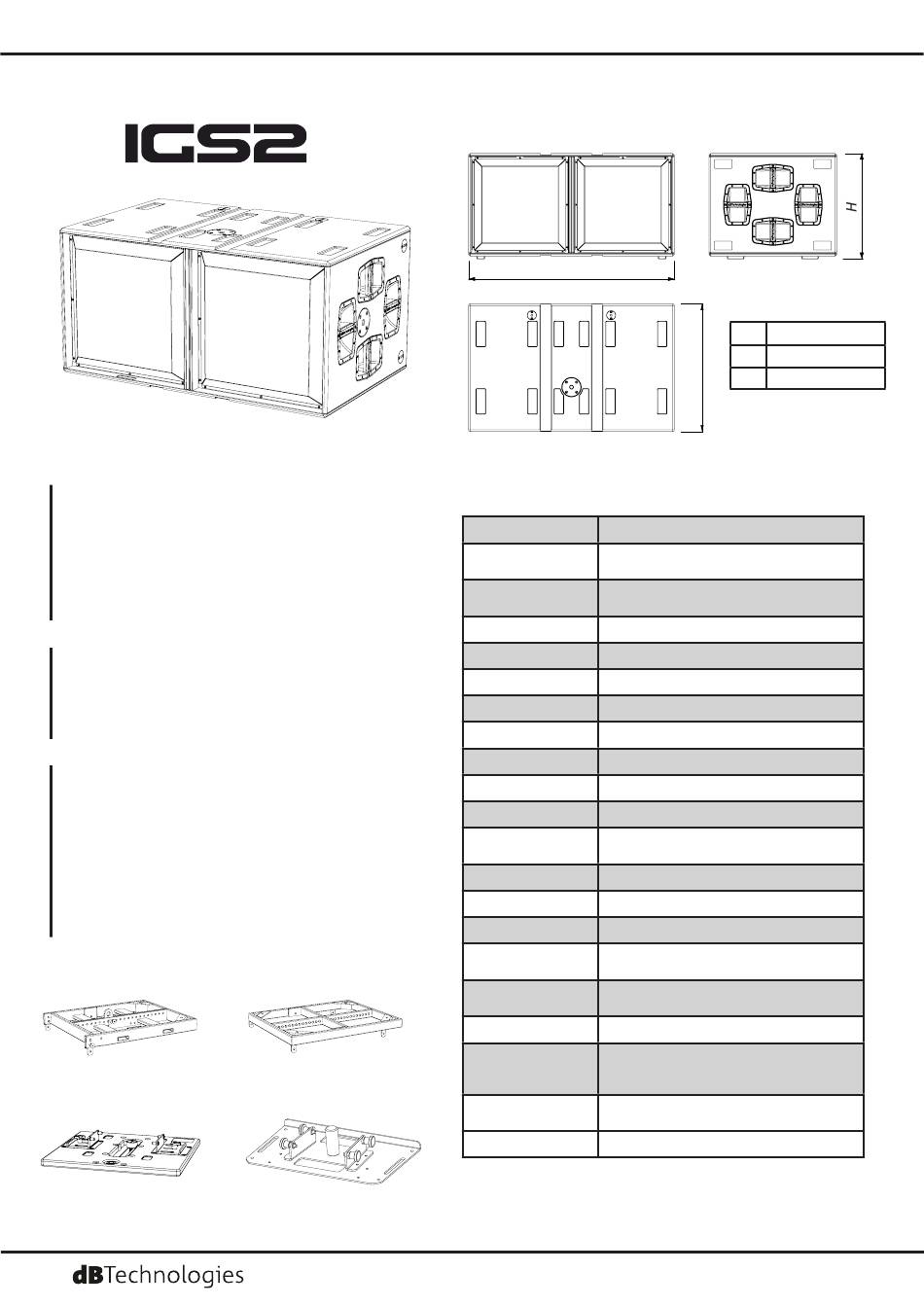

dB Technologies IGS2 Quick Start User Manual

IGS2
MAIN FEATURES
• Impressive sound pressure
• Powerful amplifier
• Quick installation
• Horizontal and vertical use
• AURORA Net control
• Multiple configurations with IGS1 subwoofer
PACKAGE CONTENTS
The box contains:
N°1 IGS2 subwoofer
N°1 mains cable
This quick start and warranty documentation
DESCRIPTION

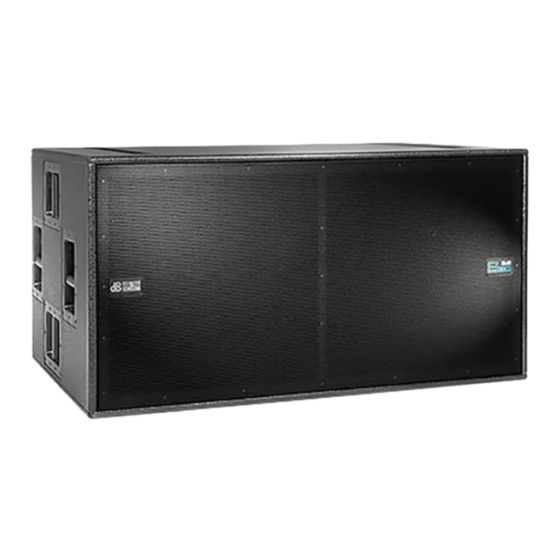

IGS2 is an active bass reflex subwoofer, designed for
professional use, equipped with two 18" neodymium
woofer (voice coil: 4"). The powerful DSP controlled
double amplifier section can handle up to 3200 W (RMS
power). The RDnet connections allow in-depth remote
control, thanks also to free available software AURORA
NET. The versatile design ensure easy set-up to create
different configurations also with IGS1 subwoofer,
completing live installations with DVA line-array series.
ACCESSORIES
DRK-20
flybar
GSA-IG5TR
mouting adapter
QUICK START USER MANUAL SECTION 1
DRK-10
flybar
GSA-IG
mouting adapter
DIMENSIONS
W
TECHNICAL SPECIFICATIONS
Speaker Type Active bass-reflex subwoofer
Frequency Response
39Hz - Xover
[-6dB]
Usable Bandwith
36Hz - Xover
[-10dB]
Max SPL (1 m) 142 dB
LF 2x 18", 4" v.c.
LPF 60-65-70-75-80-90-100-110-120-400(FR) Hz
Amplifier 3200 W (2x 1600 W) RMS Class-D
Power Supply Full-range SMPS
Cooling Passive (convection)
Operating Range 100-240V~ (50-60Hz)
Limiter Peak, RMS, Thermal
Operation limit
-20°C / +55°C (-4°F / 131°F)
temperature
Controller 32 bit DSP
AD/DA Converter 24 bit/96 kHz
Controls 1x Function Control (rotary)
1 x XLR balanced, 1 x RJ45 (RDNet),
Signal Input
1x USB (Data Service)
1x XLR balanced Link, 1x XLR HPF Xover out,
Signal Output
1 x RJ45 Link (RDNet)
Housing Plywood box - black finished
2x M20 Thread (pole mount)
Mechanical fixing
4x pick points (flybar stack use)
points
4x back wheels ready
1160x580x720 mm
Dimensions (WxHxD)
(45.7x22.8x28.3 in)
Weight 80.8 Kg (178.13 lbs.)
1 info@dbtechnologies-aeb.com
420120436Q REV1.0
W 1160 mm (45.7 in)
H 580 mm (22.8 in)
D
D 720 mm (28.3 in)
