dB Technologies INGENIA IG3TR Quick Start User Manual

IG3TR
MAIN FEATURES
• Impressive sound pressure
• Multiple configuration options
• Compact size
• Easy handling and transport
• AURORA Net remote control
PACKAGE CONTENTS
The box contains:
N°1 INGENIA IG3TR loudspeaker
N°1 mains cable
N°1 fuse for 100-120Vac power supply
This quick start and warranty documentation

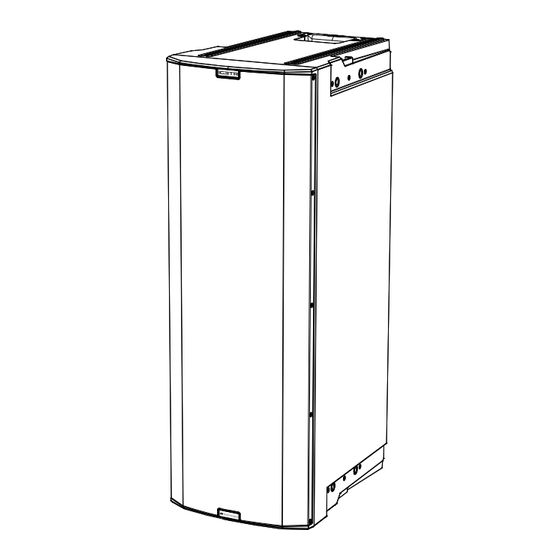

INGENIA IG3TR is a powerful 2-way vertical speaker,
equipped with one 1.4" neodymium compression driver
with a 3" voice coil and two 10" neodymium woofers, in
an innovative shape. The horn is vertically asymmetrical
and offer a precise acoustical coverage in different kind
of installations. The powerful DIGIPRO® G3 amplifier
section, capable of handling up to 900 W (RMS power), is
DSP controlled, it can perform a detailed customization of
the output sound of the speaker. Through the IR communi-
cation handle, the DSP can recognize if 2 INGENIA IG3TRs
are installed together, stacked or flown, and can perform
a digital steering, making them sound as one single sour-
ce with a selectable inclination. All the DSP parameters
can be viewed and selected in the user-friendly interface,
equipped with a self-rotating OLED display, and can be sa-
ved and reloaded in different custom settings by the user,
who can protect his choices with a password. INGENIA
IG3TR includes an RDNet-EH handle, which allows the re-
mote-control via RDNet protocol and Aurora Net software.
The warnings in this manual must be observed together
with the "User Manual - Section 2".
QUICK START USER MANUAL SECTION 1

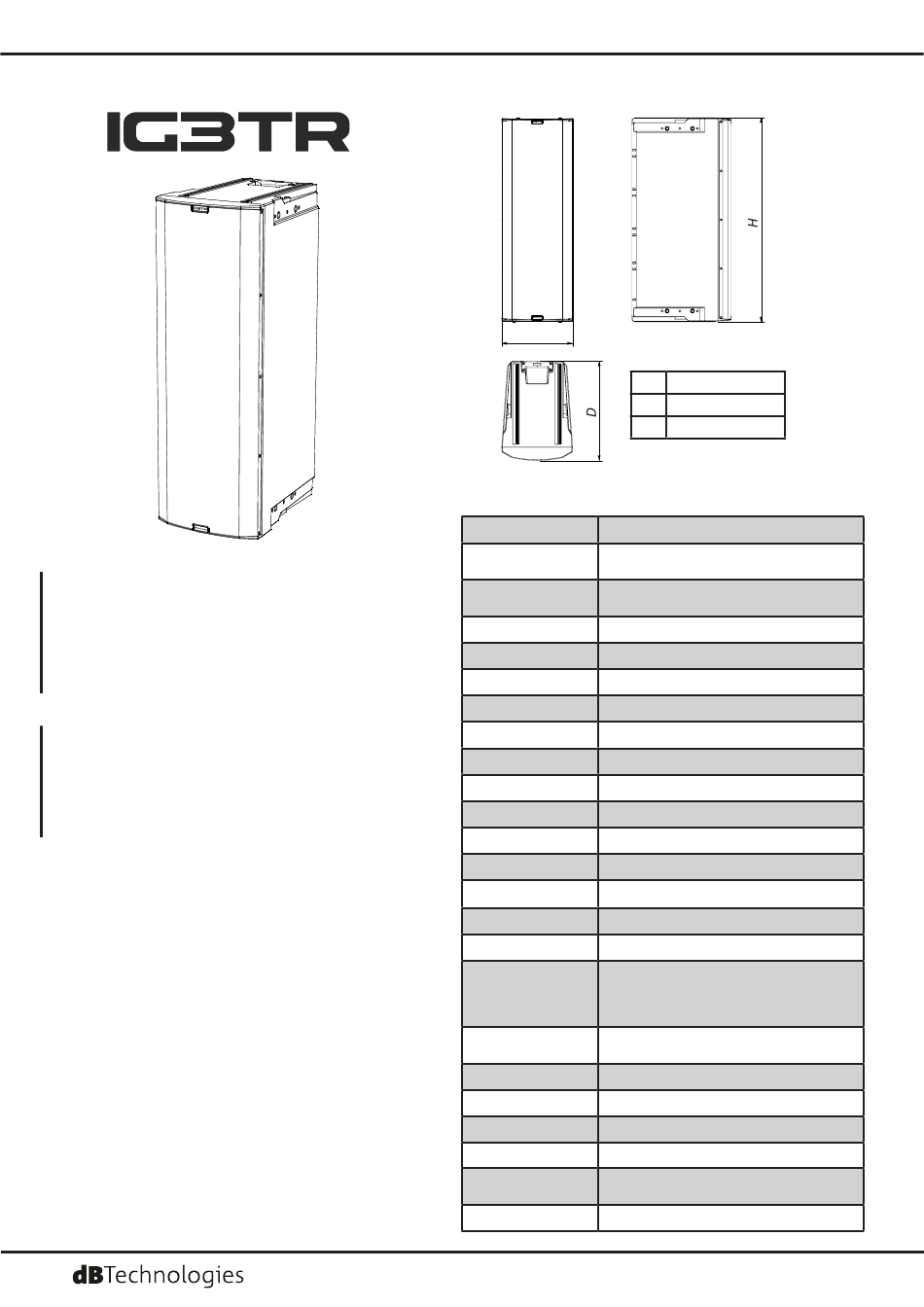

DIMENSIONS
TECHNICAL SPECIFICATIONS
Speaker Type
Frequency Response
[-6dB]
Usable Bandwith
[-10dB]
Max SPL (1 m)
Directivity (HxV)
HF
LF
Crossover Frequency
Amplifier
Power Supply
Cooling
Operating Range
Limiter
Processing
Controller
AD/DA Converter
Controls
Signal Input
Signal Output
Housing
Rigging Points
Pole mount
Dimensions (WxHxD)
Weight
1
W
W 280mm (11.02 in)
H 806mm (31.73 in)
D 393mm (15.47 in)
2 Way Active Loudspeaker
55 - 18900 Hz
51 - 20000 Hz
132 dB
100° x 90° (+20°/-70°)
1.4" exit, 3" v.c. neo
2x 10", 2.5" v.c. neo
960 Hz 24 dB/oct
Digipro® G3 900 W RMS Class-D
Auto-range
Convection
220-240V~ (50-60Hz)/100-120V~ (50-60 Hz)
Dual Active, Peak, RMS, Thermal
FIR Linear Phase Filters
56 bit DSP
24 bit/48 kHz
1x Push Rotary Encoder
1x OLED Display
1x Peak LED
1x Input sensitivity switch
1 x XLR/jack combo, 1 x RJ45 Link (RDNet),
1x USB (Data Service)
1x XLR balanced, 1 x RJ45 Link (RDNet)
Polypropylene
4
D36mm
280x806x393 mm
(11.02x31.73x15.47 in)
20.8 Kg (45.86 lbs.)
