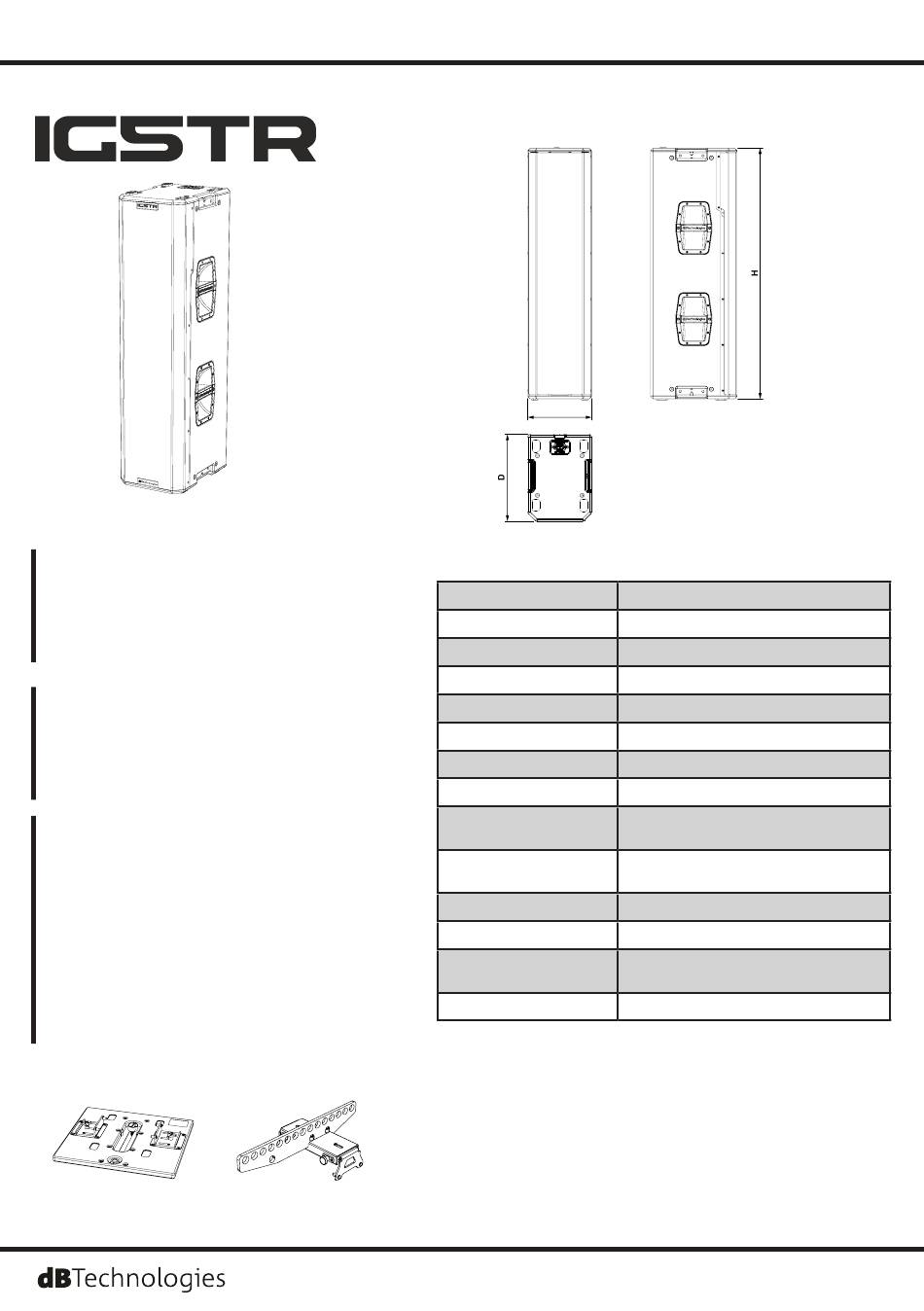

IG5TR
MAIN FEATURES
• Impressive sound pressure
• New powerful amplifier
• Digital steering
• AURORA Net remote control
• Stack and flyblabe use (with dedicated accessories)
PACKAGE CONTENTS
The box contains:
• n.1 IG5TR loudspeaker
• n.1 mains cable
• n.1 rain cover
• This quick start and warranty documentation
DESCRIPTION

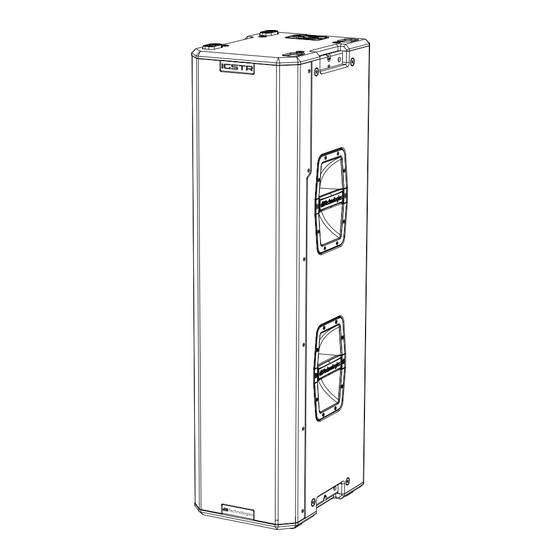

INGENIA IG5TR is a powerful 2-way active vertical speaker,
equipped with one compression driver (3" v.c., 1.4" exit) and
three 10" woofer, in an innovative shape. The wave guide of
the driver is vertically asymmetrical, for a precise acoustical
coverage in different kind of installations, indoor and outdoor.
The new powerful amplifier section, capable of handling up to
1600 W (RMS power), is controlled by a DSP, which can perform
a detailed customization of the output sound of the speaker.
In particular, the DSP can recognize if 2 INGENIA IG5TRs are
installed together, stacked or flown, through the special IR
communication ports, and can perform a digital steering,
making them sound as one single source with a selectable
inclination.
ACCESSORIES
GSA-IG5TR
mouting adapter
QUICK START USER MANUAL SECTION 1
DRK-IG5TR
flybar
DIMENSIONS
W
SPECIFICATIONS
Speaker Type
Directivity (HxV)
LF
HF
Amplifier
Power Supply
Operating Range
User Interface
Signal Input
Signal Output
Housing
Mechanical fixing points
Dimensions (WxHxD)
Weight
The warnings in this manual must be observed together with the
"User Manual - Section 2".
1
420120452Q REV1.0
2-way active speaker
90° x 75° (+20°/-55°)
3x 10" (v.c. 2.5")
1x 3" v.c. (1.4" exit)
1600 W RMS Class-D (4x400 W)
Full-range SMPS
100-240V~ (50-60Hz)
OLED display + rotative knob w/switch
1 x XLR balanced, 1 x RJ45 (RDNet),
1x USB (Data Service)
1x XLR balanced Link, 1 x RJ45 Link
(RDNet)
Plywood box - black polyurea coating
4x
280x1100x380 mm
(11.02x43.31x14.96 in)
35 Kg (77.16 lbs.)
