IS115S
MAIN FEATURES
• Impressive sound pressure
• Quick installation
• Stack or flyable use
PACKAGE CONTENTS
The box contains:
N°1 IS 115S subwoofer
This quick start and warranty documentation

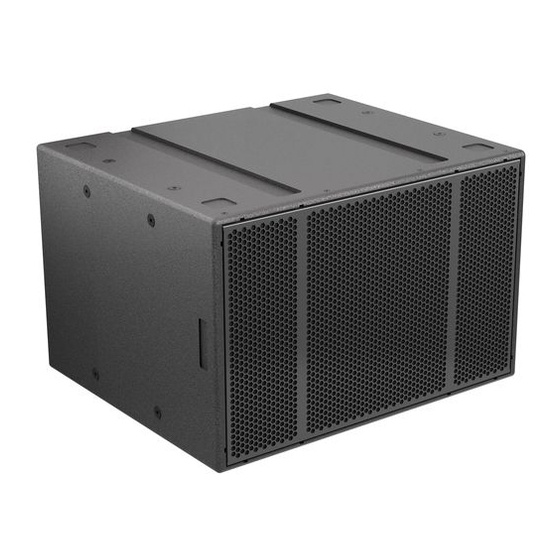

DESCRIPTION
IS115S is the new dB Technologies versatile passi-
ve subwoofer for professional use. It is equipped
with one 15" ceramic woofer (4" voice coil) and
it's just perfect as a complement for IS210L pas-
sive speaker. The mechanical design allows an
easy, accurate and quick installation for stacked
or flyable use thanks to the optional accessories.
ACCESSORIES
DRK-1
flybar for
stacked/flyable use
The warnings in this manual must be observed together with the "User Manual - Section 2".
QUICK START USER MANUAL SECTION 1
DRK-2
flybar for
stacked/flyable use
stacked/flyable use
DIMENSIONS
W
TECHNICAL SPECIFICATIONS
Speaker Type
Protection against solid
objects and liquids (IP):
Frequency Response [-6dB]
Usable Bandwith [-10dB]
RMS Power
Rated impedance
Max SPL (1 m)
LF
Crossover Frequency
Signal Input
Signal Output
Housing
Rigging Points
Dimensions (WxHxD)
Weight
LP-4
bracket for
bracket for
stacked/flyable use
1
info@dbtechnologies-aeb.com
420120421Q REV1.1
W
650mm (25.6 in)
H
420mm (16.5 in)
D
550mm (21.7 in)
Passive Subwoofer
55
42 Hz - Xover
38 Hz - Xover
800 W
8 Ohm
133 dB (Fullrange)
1x 15", 4" v.c.
Required external processing
Terminal barrier strip (or speakON
using the SP-IS accessory panel)
Terminal barrier strip (or speakON
using the SP-IS accessory panel)
Wooden box - black finished
8
650x420x550 mm
(25.6x16.5x21.7 in)
27.8 Kg (61 lbs.)
LP-6
SP-IS
speakON® panel
®
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for dB Technologies IS115S
Summary of Contents for dB Technologies IS115S
- Page 1 DESCRIPTION ® Terminal barrier strip (or speakON Signal Input using the SP-IS accessory panel) IS115S is the new dB Technologies versatile passi- ve subwoofer for professional use. It is equipped ® Terminal barrier strip (or speakON Signal Output using the SP-IS accessory panel) with one 15”...
- Page 2 IS115S 420120421Q REV1.1 QUICK START USER MANUAL SECTION 1 AUDIO PARALLEL CONNECTIONS SOURCE SPEAKER INPUT LINK Installation must be performed complying with user’s manual information and to related instruction provided. PROTECTION AGAINST SOLID OBJECTS AND LIQUIDS (IP RATING) The speakers are protected against the ingress of solid objects and liquids with a rating of IP55 as defined by IEC 60529.
- Page 3 IS115S 420120421Q REV1.1 QUICK START USER MANUAL SECTION 1 FLOWN DRK-1 flybar DRK-2 flybar LP-4 bracket LP-4 bracket IS115S IS115S LP-6 bracket IS210L IS210L DRK-2 flybar LP-4 bracket IS115S DRK-1 flybar IS210L For further information regarding max loading and installation requirements, please refer to the accessories user manual.
- Page 4 D D a a t t e e c c r r e e a a t t e e d d 13-07-2022 12:09 35 D D e e s s c c r r i i p p t t i i o o n n product name: IS115S IDnode: 8668 IDlanguage: 267...
