TESTO 310 II Instruction Manual

Flue gas analyser
Hide thumbs Also See for 310 II:
Table of Contents

Advertisement

Quick Links

Download this manual

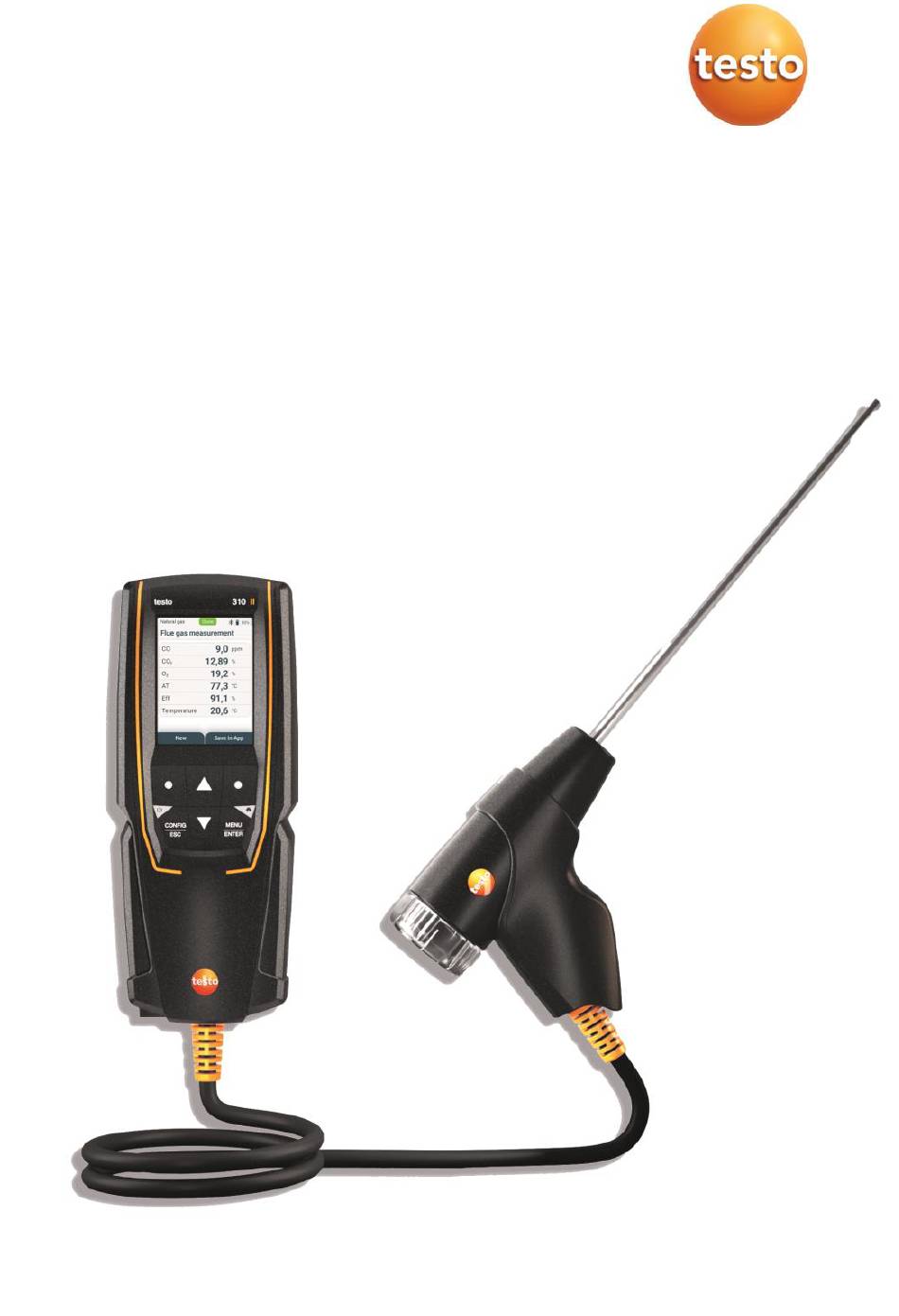

– Flue gas analyser
testo 310
II
Instruction manual
