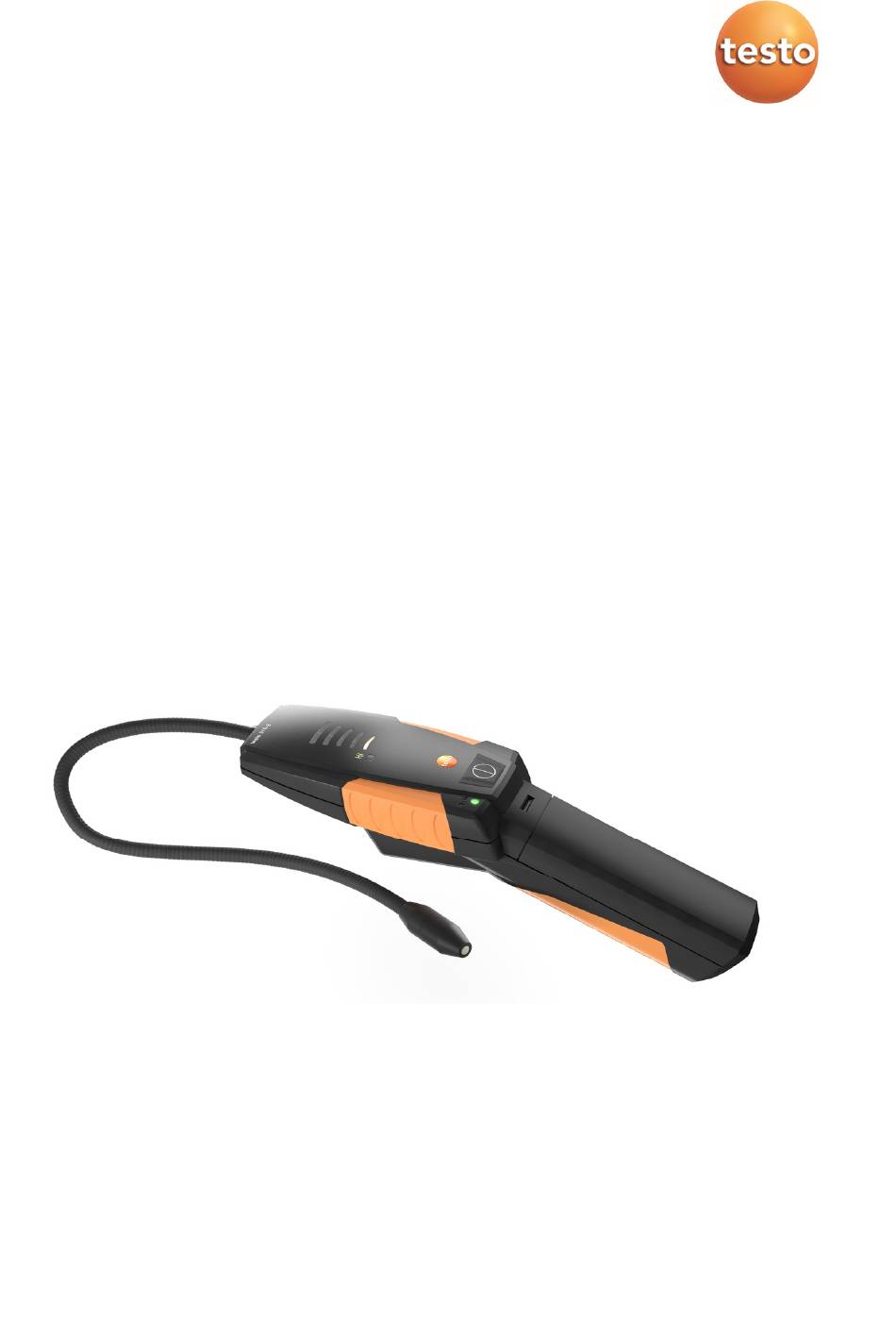

- Page 1 316-3 · Leakage detector for refrigerants Instruction manual...
-
Page 3: Table Of Contents
1 Contents Pos: 1 /TD/Überschriften/1. Inhalt @ 0\mod_1177587817070_79.docx @ 1243 @ 1 @ 1 Contents Contents ....................3 Safety and the environment ..............4 2.1. About this document ................ 4 2.2. Ensure safety ................... 4 ... -
Page 4: Safety And The Environment
2 Safety and the environment Pos: 3 /TD/Überschriften/2. Sicherheit und Umwelt @ 0\mod_1173774719351_79.docx @ 292 @ 1 @ 1 Safety and the environment Pos: 4 /TD/Überschriften/2.1 Zu diesem Dokument @ 0\mod_1173775252351_79.docx @ 346 @ 2 @ 1 2.1. About this document Pos: 5 /TD/Sicherheit und Umwelt/Zu diesem Dokument/Verwendung/Verwendung (Standard) @ 0\mod_1173775068554_79.docx @ 337 @ 5 @ 1 >... -
Page 5: Protecting The Environment
> At the end of its useful life, send the product to the separate collection for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. Pos: 14 /TD/Sicherheit und Umwelt/Umwelt schützen/Akkus/Batterien entsorgen @ 0\mod_1175693637007_79.docx @ 619 @ @ 1 >... -
Page 6: Specifications
Pos: 16 /TD/Überschriften/3.1 Verwendung @ 0\mod_1176211016437_79.docx @ 695 @ 2 @ 1 3.1. Pos: 17 /TD/Leistungsbeschreibung/Verwendung/testo 3xx/testo 316-3 @ 10\mod_1321260923717_79.docx @ 102705 @ @ 1 The testo 316-3 is a leakage detector for fast and reliable leak detection in refrigeration systems and heat pumps. Gas concentrations are indicated both visually and audibly. - Page 7 3 Specifications Feature Values Warm-up period (switching Approx. 20 s instrument on – ready to measure) Power supply Alkaline Batteries (2xD) Battery life 16 hours Storage/transportation 0 to 50 °C / 32 to 122 °F conditions Operating conditions -18 to 50 °C / -0 to 122 °F 20 % - 80 %RH, non-condensing Minimum Response / <...
-
Page 8: Product Description
Product description Pos: 21 /TD/Überschriften/4.1 Übersicht @ 0\mod_1176379946003_79.docx @ 733 @ 2 @ 1 4.1. Overview Pos: 22 /TD/Produktbeschreibung/Übersicht/testo 3xx/testo 316-3 @ 10\mod_1321261139471_79.docx @ 102771 @ @ 1 1 Flexible probe shaft with probe head 2 Handle with battery compartment... -
Page 9: First Steps
Pos: 24 /TD/Überschriften/5.1 Inbetriebnahme @ 0\mod_1185342823812_79.docx @ 1885 @ 2 @ 1 5.1. Commissioning Pos: 25 /TD/Erste Schritte/testo 316-3/Installation des Sensors; Batterien einlegen @ 10\mod_1321261280405_79.docx @ 102805 @ 55 @ 1 Installing the sensor 1. Unscrew the protective cap (1) from the sensor head (counter- clockwise). - Page 10 5 First steps 4. Slide the top part of the handle back on. Pos: 26 /TD/Erste Schritte/testo 316-3/Ein-/Ausschalten @ 10\mod_1321261281904_79.docx @ 102838 @ 55 @ 1 Switch on WARNING Danger of explosion! > The instrument must not be used in environments where flammable gases are present.
-
Page 11: Using The Product
Pos: 28 /TD/Überschriften/6.1 Einstellungen vornehmen @ 0\mod_1184584321421_79.docx @ 1863 @ 2 @ 1 6.1. Performing settings Pos: 29 /TD/Produkt verwenden/testo 316-3/Einstellungen vornehmen/Empfindlichkeit einstellen @ 10\mod_1321261342786_79.docx @ 102938 @ 5 @ 1 Setting the sensitivity There are two sensitivity levels: (high, default) and (low). -
Page 12: Maintaining The Product
Do not use any aggressive cleaning agents or solvents! Weak household cleaning agents and soap suds may be used. Pos: 33 /TD/Produkt instand halten/testo 316-3 Filter/Sensor wechseln; Batterien wechseln @ 10\mod_1321352973904_79.docx @ 103103 @ 555 @ 1 Replacing the sensor The electrochemical sensor has a service life of approximately 100 operating hours. - Page 13 7 Maintaining the product CAUTION Risk of burns due to hot sensor head! > Before removing the protective cap: switch instrument off and let the sensor head cool down. 1. Unscrew the protective cap (1) from the sensor head (anti- clockwise).
-
Page 14: Tips And Assistance
Tips and assistance Pos: 35 /TD/Überschriften/8.1 Fragen und Antworten @ 0\mod_1177402017078_79.docx @ 1093 @ 2 @ 1 8.1. Questions and answers Pos: 36 /TD/Tipps und Hilfe/Fragen und Antworten/testo 316-3 @ 10\mod_1321261408260_79.docx @ 103037 @ @ 1 Question Possible causes Possible solution... - Page 16 074-573-P1C 0970 3163 en 06...
