NuPrime MCX-800MZ User Manual

NuPrime MCX-800MZ User Manual

Multi-zone multi-room system 8-channel amplifier

Advertisement

Quick Links

Multi-zone multi-room system 8-channel amplifier, using adaptive
MCX-800MZ
voltage gallium nitride switching power supply technology, with
explosive power and ultra-low distortion characteristics.
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the MCX-800MZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NuPrime MCX-800MZ

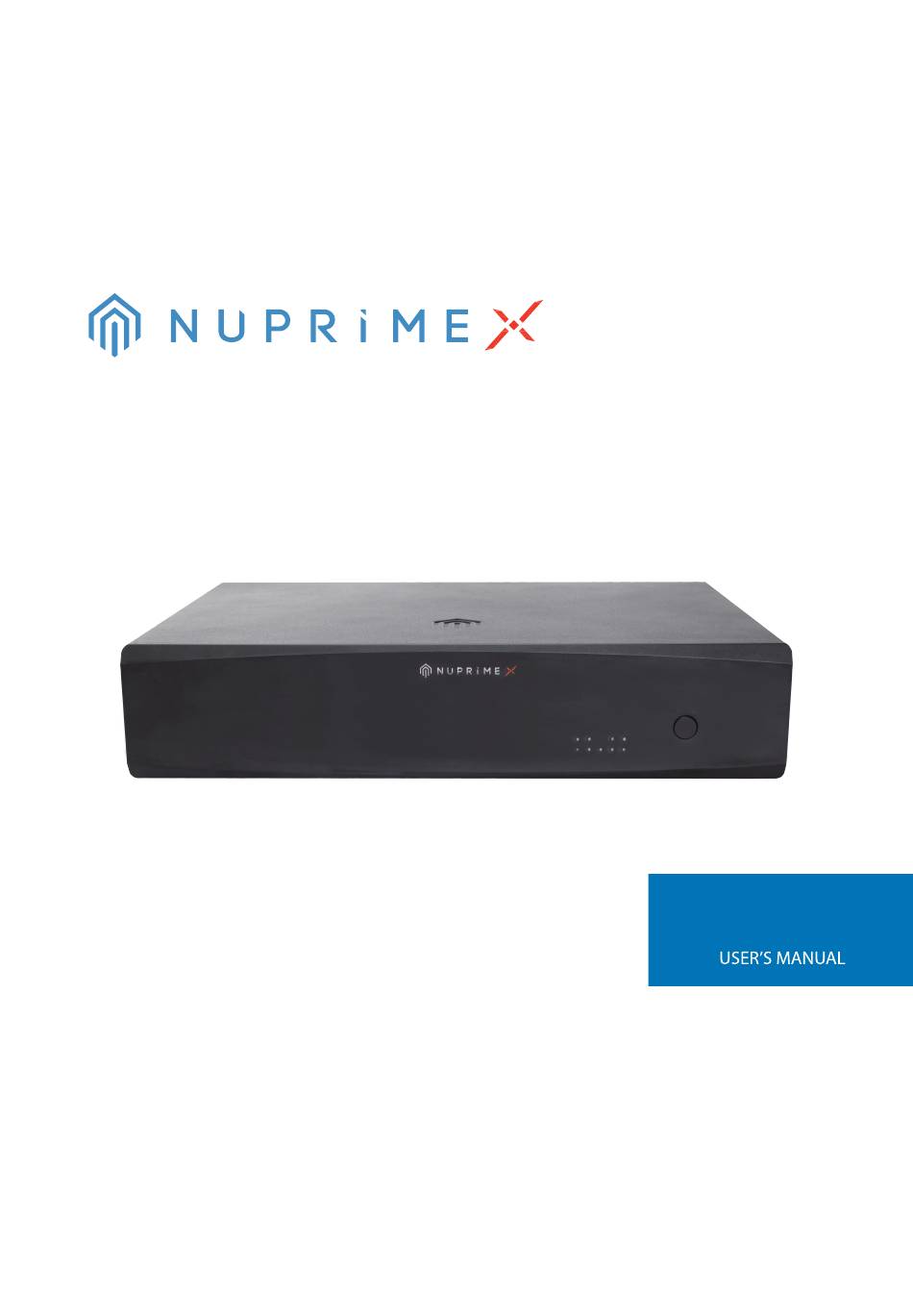

  • Page 1 Multi-zone multi-room system 8-channel amplifier, using adaptive MCX-800MZ voltage gallium nitride switching power supply technology, with explosive power and ultra-low distortion characteristics. USER’S MANUAL...
  • Page 2: Table Of Contents

    FCC Notice - Declaration of Conformity Information ..............2 EU Declaration of Conformity ....................... 3 Safety Instructions ......................... 4 Introduction ........................... 7 Specifications ..........................8 Quick Start Guide .......................... Connection ............................12 .............14 NuPrime’s Limited Warranty and Limitation of Liabilities www.nuprimeaudio.com...
  • Page 3: Fcc Notice - Declaration Of Conformity Information

    FCC Notice - Declaration of Conformity Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4: Eu Declaration Of Conformity

    Hereby, NuPrime Audio, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. The manufacturer of this product is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA.
  • Page 5: Safety Instructions

    Safety Instructions There are two categories of Safety Instructions included in this manual: • Product Warnings, (i.e., what must never be done to assure avoiding those hazards that • could cause bodily injury or property damage); and • User Directions (i.e., what must always be done to assure the safe use of your device). The Safety Instructions contained in this manual have been categorized in accordance with the seriousness of the potential hazards through the use of Signal Words.
  • Page 6 WARNING: Never attempt to disassemble, repair or make any modification to your device. Disassembly, modification or any attempt at repair could cause bodily injury or property damage, as well as damage to the device itself. WARNING: Your device is not a toy. Never allow children to play with your device. Misuse, rough or improper handling of your device by children could result in serious bodily injury for any of the enumerated safety warnings in this manual.
  • Page 7 Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage speci ed on the rear panel. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent.
  • Page 8: Introduction

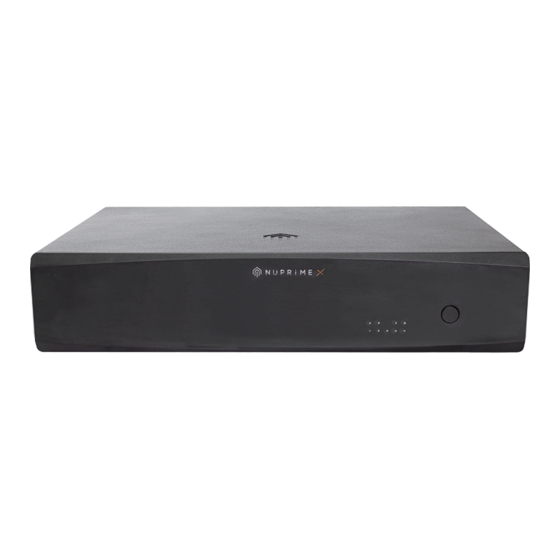

    Introduction The NuPrime MCX-800MZ is a multizone eight channels amplifier that has four stereo modules, each with its own Adaptive Voltage Switching Power Supply technology and integrated amplifier incorporating high- speed gate driver error correction. This technology enables each module to deliver explosive power and ultra-low distortion, with a neutral and detailed sound characteristic.
  • Page 9: Specifications

    Specifications: Inputs • Inputs: Switch L position: RCA analog input x 8 Switch B position: XLR analog input x 2 Switch A position: RCA analog input x 2 •Trigger in (DC 0V~15V). Floating or (DC 3V~15V) as running; less than 0.7V as standby. Outputs •...
  • Page 10: Quick Start Guide

    Quick Start Guide Front Panel View: Power Light indication LED 1 : Power-on and standby status lights: Orange light: MUTE /// Blue light: Power on Power supply thermal protection: no light LED 2 : Fault code indicator: Yellow light: power amplifier fault indication /// Red light: overload protection www.nuprimeaudio.com...
  • Page 11 Back Panel View: BUS INPUT TRIGGER LINE LINE LINE LINE MUTE MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX DC OUT BUS OUTPUT Inputs switch : L: Each channel has an independent input ( LINE IN ) B: All inputs are transmitted through XLR cable ( BUS B ) A: All inputs are transmitted through RCA cable ( BUS A ) Inputs :...
  • Page 12 , the left channel drives speaker outputs 1, 3, 5, and 7,the right channel drives speaker outputs 2, 4, 6, and 8 and Bus Output can feed Bus input of another MCX-800MZ. BUS A : When the switch is in the A position(BUS A), all inputs are transmitted through BUS A RCA cable , the left channel drives speaker outputs 1, 3, 5, and 7,the right channel drives speaker outputs 2, 4, 6, and 8 and Bus Output can feed Bus input of another MCX-800MZ.
  • Page 13: Connection

    Connection: BUS Switch GAIN Control VR Analog RCA Preamplifier or CD/DVD/BD player BUS INPUT TRIGGER LINE LINE LINE LINE MUTE MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX DC OUT BUS OUTPUT MUTE MUTE Mono...
  • Page 14 XLR output DAC-9X Analog RCA WR-2 Stream-mini-DAC Can connect multiple MCX-800MZ www.nuprimeaudio.com...
  • Page 15: Nuprime's Limited Warranty And Limitation Of Liabilities

    If a hardware defect exists and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, NuPrime will (1) repair the hardware defect at no charge, using new or refurbished replacement parts, (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product, or (3) refund the purchase price of the product.
  • Page 16 When a refund is given, your product becomes NuPrime's property. OBTAINING WARRANTY SERVICE If you purchased the product in the U.S., deliver the product, at your expense, to any NuPrime Service Center located in the U.S. If you purchased the product outside of the U.S., deliver the product to any NuPrime Authorized Importer in the country where you purchased the product.
  • Page 17 www.nuprimeaudio.com...
  • Page 18 www.nuprimeaudio.com...
  • Page 19 Scan to e-Manual...
