NuPrime IDA-6 User Manual

Class a+d integrated amplifier with dac
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IDA-6
Class A+D Integrated Amplifier
with DAC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDA-6 and is the answer not in the manual?

Questions and answers

Related Manuals for NuPrime IDA-6

Summary of Contents for NuPrime IDA-6

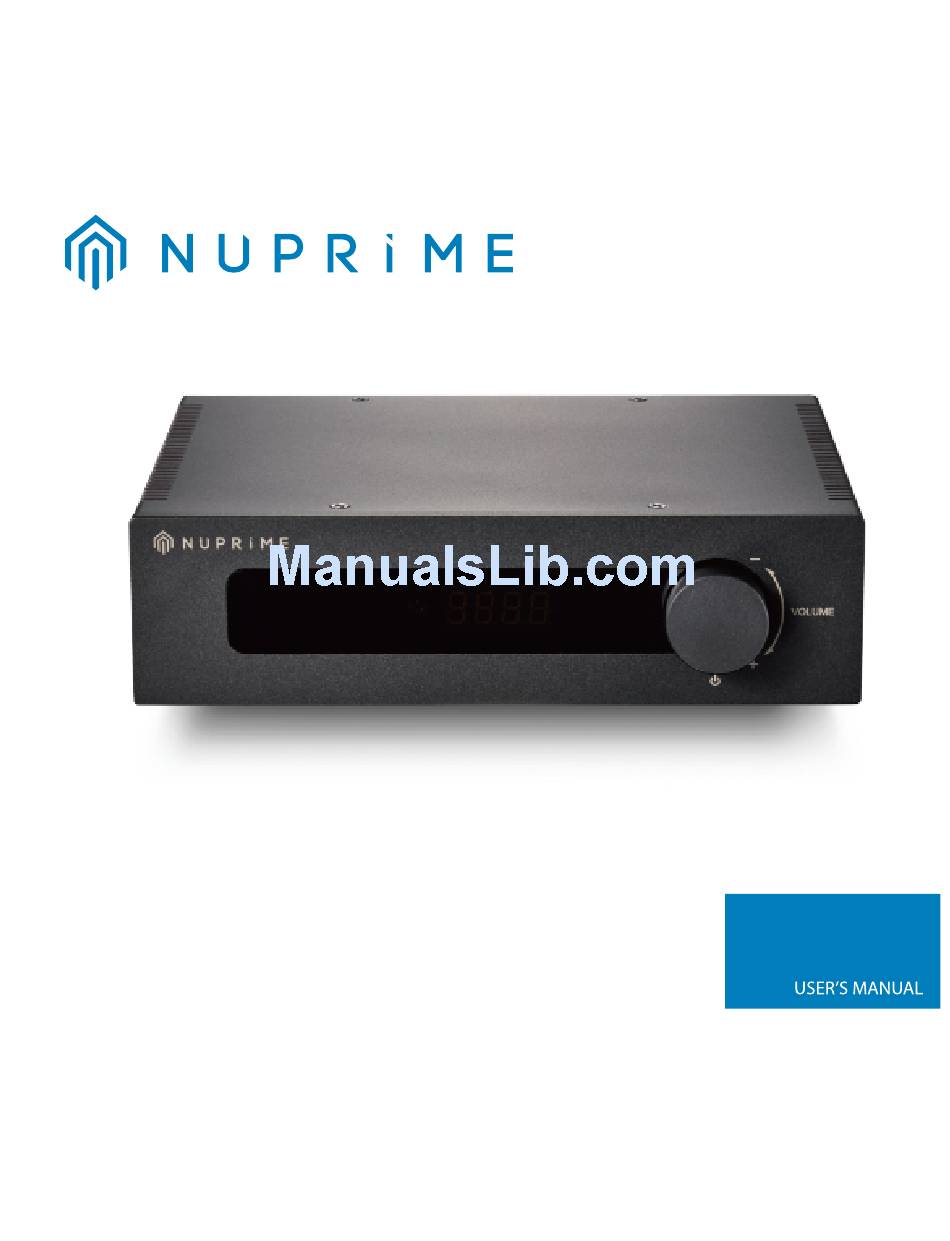

  • Page 1 IDA-6 Class A+D Integrated Amplifier with DAC...
  • Page 2 FCC Notice - Declaration of Conformity Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 EU Declaration of Conformity Hereby, NuPrime Audio, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. The manufacturer of this product is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS There are two categories of Safety Instructions included in this manual: Product Warnings, (i.e., what must never be done to assure avoiding those hazards that could cause bodily injury or property damage); and User Directions (i.e., what must always be done to assure the safe use of your device). The Safety Instructions contained in this manual have been categorized in accordance with the seriousness of the potential hazards through the use of Signal Words.
  • Page 5 WARNING: Never attempt to disassemble, repair or make any modi cation to your device. Disassembly, modi cation or any attempt at repair could cause bodily injury or property damage, as well as damage to the device itself. WARNING: Your device is not a toy. Never allow children to play with your device. Misuse, rough or improper handling of your device by children could result in serious bodily injury for any of the enumerated safety warnings in this manual.
  • Page 6 The unit must be connected to a power supply only of the type and voltage speci ed on the rear panel. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable. Do not route the power cord where it will be crushed, pinched, bent, exposed to heat, or damaged in any way.
  • Page 7 Once upon a time heat and bulk were badges of status. Today, they’re the bane of obsolescent technology. NuPrime amps switch at 500,000Hz – more than 10X the CD sampling rate. At these frequencies, transformers and capacitors work far more e ciently, making it possible to reduce their size.
  • Page 8 20 to 50,000Hz. Only a very few, very expensive linear ampli ers are capable of achieving that. This bandwidth allows NuPrime to amplify complex music with faithfulness far beyond the capability of conventional amps, with particular regard to a vast soundstage –...
  • Page 9 Introduction: The NuPrime IDA-6 consists of an integrated ampli er and digital-to-analog converter that decode PCM 384 and DoP64 with the convenience of wireless audio in a small, handsomely designed home stereo component. NuPrime's Single End Class A+D hybrid ampli cation technologies deliver the substance and warmth of Class A ampli cation and the e ciency and speed of Class D technology.
  • Page 10 With all stages in one chassis, the IDA-6 avails itself of the shortest possible signal paths in order to facilitate low levels of noise and distortion for a black-velvet background to music. Volume changes occur in 99 precise 0.5dB increments for each input’s individually adjustable volume level.

  • Page 11: Speci Cations

    Speci cations: Inputs: A1: 3.5mm Analog Input E2: Extension port for optional modules (NuPrime BTR-8 (Bluetooth) or NuPrime WR-100 (WiFi receiver) O3: Optical Digital S/PDIF (PCM up to 192K supporting DoP format DSD64) O4: Optical Digital S/PDIF (PCM up to 192K supporting DoP format DSD64)
  • Page 12 Optical Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96, 176.4KHz, 192KHz Coaxial Sampling Rates: 44.1KHz, 48KHz, 88.2KHz, 96, 176.4KHz, 192KHz, 352.8KHZ, 384KHz Bit Resolution: 24-bits Power output: 60W x 2 (8-Ohm) or 35W x 4 (4-Ohm) * THD+N: 0.05% SNR = > 88dB Peak Output Power: 170W Frequency Response: 10Hz ~50KHz Dimensions: 200 mm W x 198 mm D x 60 mm H (including feet)
  • Page 13 Brie y press to switch between input channels Display: PCM: 44.1, 48, 88.2, 96,176.4, 192, 352.8, 384 DoP: d2.8 VOL: 00 ~ 99 NuPrime Inputs: A1: 3.5mm analog input O3: Optical digital input C5: Coaxial digital input E2: Extension port input...
  • Page 14 Back Panel View: Dual Stereo Speakers Coaxial Analog Extension Stereo Speakers Optical Inputs: A1: 3.5mm stereo analog for CD/DVD/BD players, TV and any analog source device. E2: Extension port for Bluetooth and WiFi module. (Optional modules) O3: Optical input for CD/DVD/BD players, TV and any device with an optical source. O4: Optical input for CD/DVD/BD players, TV and any device with an optical source.
  • Page 15 Remote Control: Power: Power On/O Ch+: Selection next channel CH-: Selection previous channel Vol +: Volume up Vol –: Volume down Mute: Mute/Unmute audio A1: Analog input selection E2: Extension input selection O3: Optical input selection O4: Optical input selection C5: Coaxial input selection C6: Coaxial input selection...
  • Page 16 Optional Control Panel: Optional Control Panel Power: Power On/O Ch+: Selection next channel CH-: Selection previous channel Vol +: Volume up Vol –: Volume down *This is an optional accessory that is sold separately.

  • Page 17: Limited Warranty

    NuPrime’ applicable written technical documentation for the Product. NuPrime reserves the right to make substitutions and modi cations from time to time in the speci cations of Products sold by NuPrime, provided that such substitutions or modi cations do not materially a ect overall Product performance.

  • Page 18: Obtaining Warranty Service

    OBTAINING WARRANTY SERVICE If you purchased the product in the U.S., deliver the product, at your expense, to any NuPrime Service Center located in the U.S. If you purchased the product outside of the U.S., deliver the product to any NuPrime Authorized Importer in the country where you purchased the product.

  • Page 19: Exclusions And Limitations

    EXCLUSIONS AND LIMITATIONS This Limited Warranty applies only to hardware products manufactured by or for NuPrime that can be identi ed by the "NuPrime" trademark, trade name, or logo a xed to them. The Limited Warranty does not apply to any non-NuPrime hardware products or any accessories, even if packaged or sold with NuPrime hardware.
  • Page 20 NUPRIME PRODUCTS, AND ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF DATA STORED ON THE PRODUCT. NUPRIME SPECIFICALLY DOES NOT REPRESENT THAT IT WILL BE ABLE TO REPAIR ANY PRODUCT UNDER THIS WARRANTY OR MAKE A PRODUCT EXCHANGE WITHOUT RISK TO OR LOSS OF PROGRAMS OR DATA.
