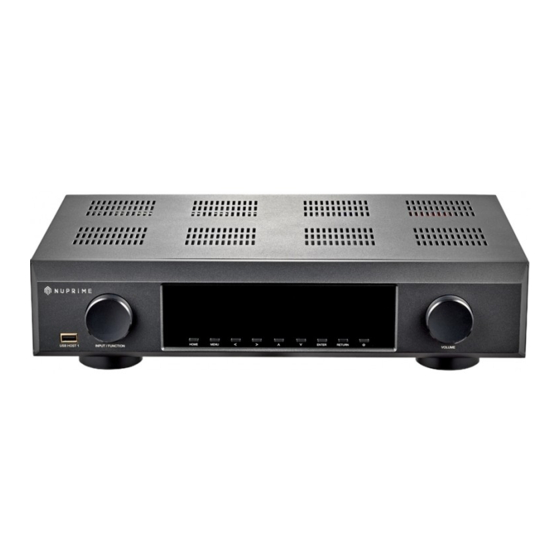

NuPrime HD-AVP Manual
  1. Manuals
  2. Brands
  3. NuPrime Manuals
  4. Amplifier
  5. HD-AVP
  6. Manual

NuPrime HD-AVP Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

NuPrime
HD-AVA/AVP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-AVP and is the answer not in the manual?

Questions and answers

Related Manuals for NuPrime HD-AVP

Summary of Contents for NuPrime HD-AVP

  • Page 1 NuPrime HD-AVA/AVP...
  • Page 2 Hereby, NuPrime Audio, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. The manufacturer of this product is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA The Authorized Representative for EMC and product safety is NuPrime Audio, Inc., 1712 Pioneer...
  • Page 3 NuPrime SAFETY INSTRUCTIONS There are two categories of Safety Instructions included in this manual: Product Warnings, (i.e., what must never be done to assure avoiding those hazards that • could cause bodily injury or property damage); and User Directions (i.e., what must always be done to assure the safe use of your device).

  • Page 4: Table Of Contents

    2. Front Panel Overview ..........................6 3. Rear Panel Overview ..........................7 4. Remote Control ............................9 5. NuPrime HD-AVA / HD-AVP Input Setup ..................... 10 5.1. HDMI ..........................10 5.1.1. ARC Function ......................12 5.1.2. CEC Function ......................12...
  • Page 5 6.1. USB DAC Analog Output ....................22 6.2. Build-in Amplifier & Stereo Speaker Output / Balance XLR Output ........22 6.3. 7.1 Multichannel Output ....................24 7. NuPrime HD-AVA/HD-AVP Mix & Zone Setup ..................25 7.1. Mix Function ........................25 7.2. Zone Function ........................26 8.

  • Page 6: Introduction

    7.1-channel RCA, 2-channel Zone1, Zone2, Zone3, USB DAC analog out, and 4-channel XLR / stereo speaker out. A built-in Wi-Fi network supports Airplay, DLNA and Miracast. Two HDMI outputs can be selected from any of the six inputs. The HD-AVA/HD-AVP easily accommodates the most complex home theater system configurations.
  • Page 7 NuPrime Audio Features: 1. Supporting the latest HD audio decoding, including Dolby TrueHD, Dolby Digital Plus, DTS Master, DTS Hi-Res. 2. SD audio decoding compatible with Dolby Digital (EX), DTS, DTS ES (D6.1, M6.1), DTS 96/24, up to 192k PCM for 7.1 CH etc.

  • Page 8: Front Panel Overview

    NuPrime 4:4:4 4:2:2 4:2:0 4:2:0 4K@50 4K@60 2. Front Panel Overview HD-­‐AVA/HD-­‐AVP   VFD Display: On screen display for various information Remote Control signal receiver Stand by indicator: LED lid up when HD-AVA is in standby. USB Host 1: For connecting to USB thumb drive or hard-drive storage.

  • Page 9: Rear Panel Overview

    NuPrime 3. Rear Panel Overview HD-­‐AVA   HD-­‐AVP   FM Antenna: For antenna installation to boost signal. Stereo Analog In: 4 sets of Analog inputs (AN1/SAT, AN2, AN3, AN4) USB DAC Input & Output (support native DSD): Digital In: 2 Coaxial & 2 Optical (CO1/DVD, CO2 : OPT1/CD, OPT2) HDMI Output: HDMI 1 and HDMI 2 output.

  • Page 10: Remote Control

    NuPrime Bluetooth expansion port: For connecting NuPrime BTR-8 Bluetooth receiver, supporting APT-X. Trigger Out: Connecting to power amplifier unit enables power on by NuPrime HD-AVA. (12V/120mA) 10. RS232: Serial com port 11. Mini USB port (For upgrade): For upgrading firmware for NuPrime HD-AVA/AVP.
  • Page 11 19. EQ – Select preset EQ settings. 20. DIM – On-screen light adjustment. 21. Mute: Mute audio. 22. ~ 25. ABCD – N/A. Reserve buttons. 26. DVD/BD Player CEC Controller. 5. Input Setup for NuPrime HD-AVA/HD-AVP NuPrime HD-AVA/AVP input connection consists of three major categories.

  • Page 12: Hdmi

    Digital 5.3. Analog Input Illustration HD-AVA HD-AVP 5.1. HDMI connection: Designed to meet the needs of digital television design, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, DVD / BD players, set-top boxes and other video devices. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio signals (including dual-channel PCM, digital audio signals and multi-channel PCM multichannel).
  • Page 13 NuPrime HD-AVP NuPrime HD-AVA/HD-AVP supports wide varieties of HDMI input devices such as DVD/BD players, TVs, musical set top box, game consoles, etc. HDMI Video: NuPrime HD-AVA/HD-AVP contains two HDMI outputs and six HDMI inputs. The HDMI supports HDMI 1.4 and 3D video playback.

  • Page 14: Arc Function

    NuPrime Two-channel linear PCM (32-192 kHz, 16/20/24 bit) Multi-channel linear PCM (up to 7.1 channels, 32-192 kHz, 16/20/24 bit) Bit stream: DOLBY DIGITAL, DOLBY DIGITAL Plus, DOLBY TrueHD, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio. Your DVD / BD players must support HDMI output of the above audio formats.

  • Page 15: Usb Dac

    5.2.4. Three USB Host ports for supporting USB thumb drives or portable hard drive storages. For HD-AVA/HD-AVP to support Dolby Digital and DTS without HDMI, please use digital inputs (Optical and Coaxial) instead of Analog inputs. 5.2.1. USB DAC Input:...
  • Page 16 NuPrime HD-AVA HD-AVP HD-AVA/HD-AVP USB DAC supports Windows and Mac IOS as well as NAS system. NuPrime USB DAC supports the latest high-resolution music formats and is capable of decoding sample rates ranging from 44.1kHz to 384kHz (PCM) as well as native DSD decoding ranging from DSD 64 up to DSD 256.
  • Page 17 1. Please visit www.nuprimeaudio.com download the latest driver. 2. Connect computer to USB DAC and power on NuPrime HD-AVA/NuPrime HD- AVP, select USB DAC input. The device will enumerate as a USB Audio device on your PC. 3. Install the latest driver just download via NuPrime website.
  • Page 18 Go to Playback->Output b. Select the Device: ASIO foo_dsd_asio 5. Configure the ASIO output a. Go to Playback->Output->ASIO, double-click on foo_dsd_asio b. Select the NuPrime ASIO Driver c. Select ASIO Native d. Select PCM to DSD Method: None e. Select Fs: DSD128...
  • Page 19 NuPrime 6. Configure the SACD plugin to play DSD (and not convert from DSD to PCM) a. Goto Tools->SACD b. Set ASIO Driver Mode to DSD c. Set PCM Sample Rate to 352800...
  • Page 20 Coaxial and Optical inputs: HD-AVA HD-AVP HD-AVA/HD-AVP consists of 2 coaxial and 2 optical inputs to connect to the corresponding optical or coaxial digital output of sources such as CD or BD/DVD players, digital cable box, digital tuners and other applicable components. All available coaxial and digital input can be variably assigned to any of the desired sources.
  • Page 21 NuPrime HD-AVP For wireless convenience, you can connect an optional Bluetooth module and connect your mobile phones and Bluetooth enable devices and stream music to the HD- AVA/HD-AVP. 5.2.4. USB Host inputs: HD-AVA HD-AVP...

  • Page 22: Analog Audio

    USB connection type HDD of the kind to which an AC adapter can be connected to supply power, use the AC adapter. USB thumb drives can be connected up to 3 drives. USB memory devices will not work via a USB hub. 5.3. Analog Audio connection: HD-AVA HD-AVP...
  • Page 23 NuPrime For more traditional sources the HD-AVA/HD-AVP can accept up to 4 set of analog RCA inputs from your CD, DVD or Blu-ray player. All available analog inputs can be variably assigned to any of the desired sources. Output Setup for NuPrime HD-AVA/HD-AVP NuPrime HD-AVA/HD-AVP output connection consists of three major categories.

  • Page 24: Usb Dac Analog Output

    NuPrime HD-AVP 6.1. USB DAC Analog output: HD-AVA HD-AVP...
  • Page 25 DACs. 6.2. Stereo Speaker output/ XLR Balanced output: HD-AVA Unique to NuPrime HD-AVA is the build-in NuPrime proprietary Class D amplifier module and PSU capable of supporting stereo speaker outputs. Speaker Output Spec: Power: 2 X 200W at 8 Ohms •...

  • Page 26: Multichannel Output

    NuPrime Unique to NuPrime HD-AVP is the XLR Balanced output. The Balanced output supports up to 4 channels or 3 channels with subwoofer. 6.3. 7.1 Pre Out multi-channel output: HD-AVA HD-AVP...
  • Page 27 NuPrime HD-AVA/HD-AVP also supports multi-channel of up to 8 channels with Pre Out function to ensure maximum compatibility and performance. Devices such as NuPrime MCH-K38 with a multi-channel amplifier output can be connected to HD-AVA/AVP Pre Out as shown in illustrations.
  • Page 28 7.1. Mix connection output: HD-AVA HD-AVP Mix Output: Mix output combines all audio signals from all input sources and output all the signals through mix output at the same time. Mix output combines all Left input audio signal and mix before outputting to Mix output Left channel, and vice versa for the right channel.

  • Page 29: Wifi Connection Setup

    To Setup Zone: Go to Audio Setup (OSD) Menu > Zone. (See OSD menu setup for detail explanation. See page 36) 8. To connect NuPrime HD-AVA/HD-AVP to internet 8.1. LAN Connection 8.2.
  • Page 30 NuPrime HD-AVP Plug in the RJ-45 Ethernet cable to the LAN port on the back panel of NuPrime HD-AVA/HD-AVP. Once connected, “Ethernet” indicator appears on the top right corner of the main menu. IP address will also change to inner IP address provided  ...

  • Page 31: Miracast & Airplay Connection Guide

    NuPrime HD-AVA/HD-AVP (XXXX) in the search list. To disconnect the Miracast, please open Wi-Fi setting and click on NuPrime HD- AVA/HD-AVP and select “Forget network”. Once the IP re-appears on the menu, HD- AVA/HD-AVP is able for reconnection.
  • Page 32 Once the cable is properly connected, please turn on the Tuner on the NuPrime HD-AVA/HD-AVP and select a desired channel. Adjust the cable to acquire the best reception and fix the cable with tape or thumbtack to keep the signal reception stable.
  • Page 33 NuPrime Setup for Room Equalization: The intelligent acoustic room scanning involves a testing Mic. It can automatically test the number of connected speakers, the optimal inflection point frequency and the distance between speakers and the audience. Through capturing noise in the room, it will adjust frequency and time thresholds to solve distortion problem caused by noise.

  • Page 34: Home Menu Setup

    NuPrime 12. Home Menu Press the home button on the remote control will bring NuPrime HD-AVA/HD-AVP to Player home menu.   Unit name + 4 random numbers. This ensures each unit has a unique name during the Wi-Fi connection. NuPrime HD-AVA/AVP IP address indicator. When in Direct Mode HD-AVA/AVP generates internally a fixed IP address: 192.168.59.254.

  • Page 35: Network Setup

    Network information: Display internet connection information. Return Direct connection mode: Return HD-AVA/AVP to internal Wi-Fi connection. 12.2. Audio Setup: Opens up NuPrime HD-AVA/AVP OSD setup menu. 12.3. Video Setup: Aspect Ratio: Display resolution setting Enable/Disable video output scaled down to 90%.

  • Page 36: Input

    NuPrime 13. NuPrime HD-AVA/HD-AVP OSD setup 13.1. Input 13.4. Zone 13.2. Mode 13.5. Setup 13.3. Parameter 13.1. Input: Display all input selection and its set audio option. To setup input options, please go to OSD Menu > Setup > Input Config > Input Setup.
  • Page 37 NuPrime 13.2. Mode: Listening mode selection. (Pure Direct, Pure Audio, All Stereo, PLIIx, Neo:6, Direct.)
  • Page 38 NuPrime 13.3. Parameter: Speaker parameter setting. Adjustment of 0.5dB increments, parameter ranging from -10dB to +10dB.
  • Page 39 NuPrime 13.4. Zone: Multi-room setting. (Three set of room settings. Each Zone has independent power setting, volume adjustment, and input selection) A. Zone Power: Enable / Disable the multi-room function. Each Zone can be enabled or disabled independently. B. Zone Volume: Volume setting. Each Zone can set a desired independent volume.

  • Page 40: Mode Setup

    NuPrime 13.5. Setup: System setting menu. This is all major configurations can be set here. 13.5.1. Input Config 13.5.5. Option 13.5.2. Mode Setup 13.5.6. Language 13.5.3. Speaker Setup 13.5.7. Load Default 13.5.4. AutoRoom/EQ 13.5.8. Version...
  • Page 41 NuPrime 13.5.1. Input Config: Input Setup Trigger Mode Input setup: Various settings for all Input selections: Enable: Turn on/off the input selection. Only the input selections that are not hotkey to the remote control can be turn off. Video: Select the video signal for the Input.
  • Page 42 NuPrime 13.5.2. Mode Setup: Listening mode configuration. Each listening mode can also be configured. Analog 2CH PureDirect, PureAudio, PLIIx, NEO:6, All Stereo Multi PCM Pure Direct, PureAudio, PLIIx, All Stereo DOLBY 2/0 PureDirect, PureAudio, PLIIx, NEO:6, Direct, All Stereo DOLBY D...
  • Page 43 NuPrime 13.5.3. Speaker Setup: Speaker configuration. Size/Crossover: To configure the speaker size Large (Main speaker) or Small (Surround speaker) and crossover frequency manually. Auto Room / EQ can be used for automatic smart room equalization. Noise Test: To configure speaker soundstage level. Auto Room / EQ can be used for automatic smart room equalization Speaker Distance: To configure the speaker distance manually.
  • Page 44 NuPrime 13.5.4. Auto Room/EQ: Auto Room: Connecting to microphone for smart room equalization Manual EQ1/2/3: 3 sets of EQ presets that can be selected using with remote control. Auto EQ: System presets automatically. EQ Select: EQ selection.
  • Page 45 OSD Popup: Enable or disable the pop up notification on the bottom screen when signal is changed. HDMI CEC Control: Enable or disable CEC function. CEC enables using NuPrime Remote control to control DVD/BD players. HDMI Audio Out: Enable or disable audio signal out from HDMI outputs.
  • Page 46 NuPrime 13.5.6. Language: Selecting OSD Menu display language. 13.5.7. Load Default: Return to factory default. Load and restore all settings to factory default setting.
  • Page 47 NuPrime 13.5.8. Version: Display Main CPU version.
  • Page 48 NuPrime...
  • Page 49 1 x Mix output 3 x Stereo Zone output 1 x Stereo Speaker output ( HD-AVA) 4 x XLR Balanced output (HD-AVP) Features: - Miracast for mobile phone and tablet, wireless transmitting audio and video. - Dedicated microphone for setting environmental sound field.
  • Page 50 OBTAINING WARRANTY SERVICE If you purchased the product in the U.S., deliver the product, at your expense, to any NuPrime Service Center located in the U.S. If you purchased the product outside of the U.S., deliver the product to any NuPrime Authorized Importer in the country where you purchased the product.
  • Page 51 (f) to defects caused by normal wear and tear or otherwise due to the normal aging of the product; or (g) if any NuPrime serial number has been removed or defaced.
