NuPrime Omnia A300 User Manual

NuPrime Omnia A300 User Manual

Streaming integrated amplifier

Advertisement

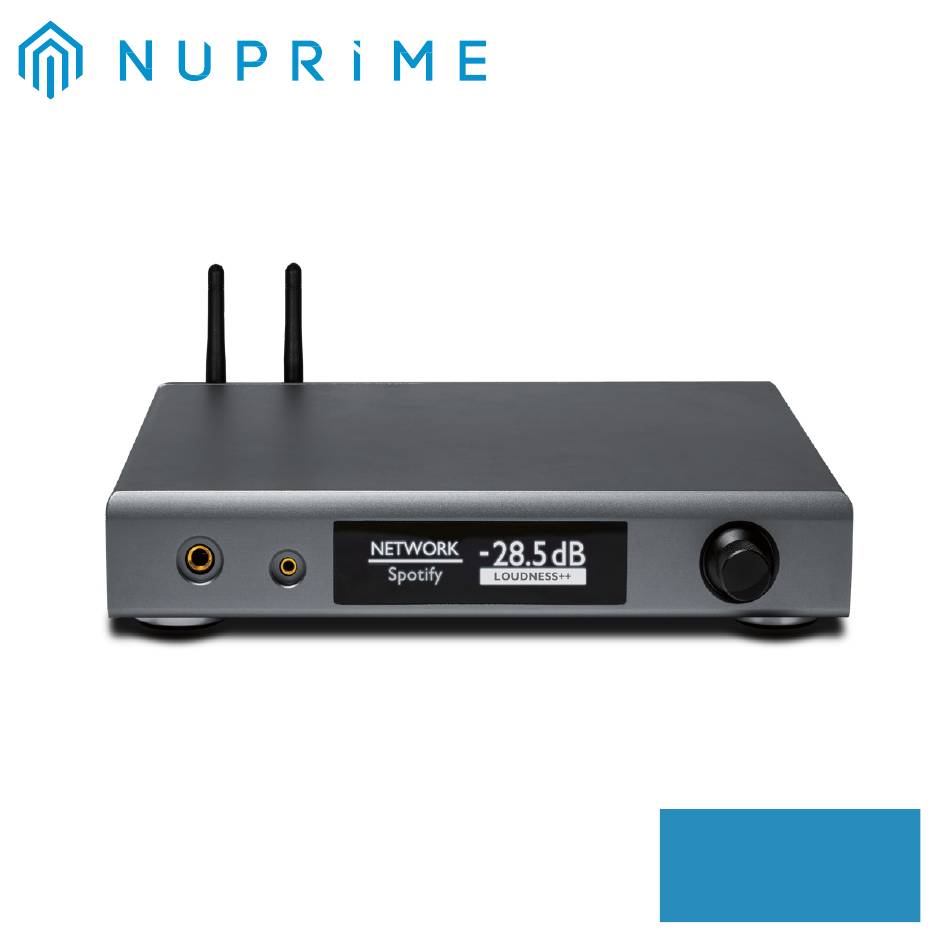

Omnia
Omnia A300
Streaming Integrated Amplifier
User's Manual
U S E' S M AN U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Omnia A300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NuPrime Omnia A300

  • Page 1 Omnia Omnia A300 Streaming Integrated Amplifier User’s Manual U S E’ S M AN U A L...
  • Page 2: Table Of Contents

    LISTENING OPTIMIZATION ........................19 IDENTIFICATION OF CONTROLS ....................... 20 DISPLAY SCREEN ............................. 24 DISPLAY MENU ............................25 NUPRIME EQ SETTINGS ........................... 26 REMOTE CONTROL ..........................26 SPECIFICATIONS ............................29 NUPRIME’S LIMITED WARRANTY AND LIMITATION OF LIABILITIES ............31 www.nuprimeaudio.com www.nuprimeaudio.com...
  • Page 3: Fcc Notice - Declaration Of Conformity Information

    FCC NOTICE - DECLARATION OF CONFORMITY INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4: Eu Declaration Of Conformity

    Hereby, NuPrime Audio, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. The manufacturer of this product is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA.
  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS There are two categories of Safety Instructions included in this manual: Product Warnings, (i.e., what must never be done to assure avoiding those hazards that ● could cause bodily injury or property damage); and ● User Directions (i.e., what must always be done to assure the safe use of your device). ●...
  • Page 6 WARNING: Never attempt to disassemble, repair or make any modification to your device. Disassembly, modification or any attempt at repair could cause bodily injury or property damage, as well as damage to the device itself. WARNING: Your device is not a toy. Never allow children to play with your device. Misuse, rough or improper handling of your device by children could result in serious bodily injury for any of the enumerated safety warnings in this manual.
  • Page 7 Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage specified on the rear panel. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent.
  • Page 8: What's In The Box

    WHAT’S IN THE BOX Main power cord Metal remote-control USB Cable 1m Optical audio cable Toslink 1m User manual Wi-Fi 5G & Bluetooth antenna NOTE Follow the Quick Setup Guide to help you get started with your A300. SAVE THE PACKAGING Please save the box and the packaging that came with the A300. Should you move or need to transport your A300, this is the safest container to use.
  • Page 9: Quick Setup Guide

    Store or your Android device from the Google Play Store. • If you are using Windows USB audio as one of the sources, download the device driver directly from the NuPrime Official Website (https://www.nuprimeaudio.com) Omnia A300 product page. • Always ensure that your A300 is updated with the latest firmware. Go to the A300 product page at nuprimeaudio.com for firmware update information.
  • Page 10: Wireless Auto Setup

    ○ 1 ○ 2 ○ 3 When you first launch the If you haven’t pressed the Select Omnia A300 device Omnia Receiver app, it will red button on the rear panel (the Omnia Receiver app automatically search for the once (do not press and hold) called all receiving devices as Omnia WR-1.
  • Page 11 ○ 4 ○ 5 ○ 6 Configure Wi-Fi setup on Wait for the A300 to Device is connected. Omnia A300 by selecting the connect to the selected Wi-Fi same SSID of the Wi-Fi network. network on your mobile device. www.nuprimeaudio.com...
  • Page 12 ○ 7 ○ 8 ○ 9 Optionally login to Name your device. Pick from a list of Amazon Alexa. standard room names or create your own. www.nuprimeaudio.com www.nuprimeaudio.com...
  • Page 13 ○ 1 1 Play music using the Select “Add More Services” to hide or show the list of music NuPrime Omnia App as a services. If you intend to use the physically connected inputs as functional remote control. source, hide the unused music services. Most of these services can be entirely controlled by the Omnia Receiver app.
  • Page 14 ○ 1 2 ○ 1 3 Select “Add More Services” to hide or show the list of music Select input source if you services. If you intend to use the physically connected inputs as are not using streaming source, hide the unused music services. Most of these services services.
  • Page 15: Controlling Multiple A300 And Re-Streaming

    Note: NuPrime Omnia App will temporarily lose connection to the A300 as the unit reboots during the upgrade process. Please quit the App and reopen once the upgrade has been completed. CONTROLLING MULTIPLE A300 AND RE-STREAMING ○ 1 Each A300 is independently controlled by the Omnia Receiver app and can be accessed from the Device List.
  • Page 16 ○ 2 Select a group or single device for playing music. GROUP’S DEVICE MASTER AND RE-STREAMING When multiple devices are grouped, the first device in the group act as the master for music source. Re-streaming happens when the master device receives music from Bluetooth, analog or optical input and streams to all other receivers within the group.
  • Page 17: Wireless Manual Setup

    WIRELESS MANUAL SETUP 1. Select your A300’s unique network ID* from the Wi-Fi Setup connection settings menu of your tablet, smart phone or computer and join it. 2. “…Control Panel” menu window should automatically open. If not, open the web browser of your device and visit http://10.1.2.3.
  • Page 18: Introduction

    (including receiving streamers). TECHNICAL HIGHLIGHTS A combination of high-power Class-D amplifier, 64-bit quad-core Arm Cortex-A53 processor, NuPrime proprietary SRC chip, Cirrus Logic CS43131 DAC, plus other audiophile-grade components enable the Omnia A300 to achieve world class performance above its peers. www.nuprimeaudio.com www.nuprimeaudio.com...
  • Page 19 Bluetooth The Omnia A300 utilizes a compact yet powerful Class-D amplifier capable of signal bandwidth up to 100kHz with advanced integrated feedback design and error correction for very low noise and distortion. The Cirrus Logic CS43131 combines a next-generation, low power audio DAC with a high-fidelity headphone amplifier to provide a superior system-level audio performance.
  • Page 20: Listening Optimization

    LISTENING OPTIMIZATION • A user-selectable switch allows the matching to 4Ohms or 8Ohms load speakers. We recommend the 8R setting for most use cases except for speakers with very low impedance (i.e., lower than 4Ohms) for a more natural sound. Therefore, even if you have a 4 ohms nominal impedance speaker, you should try to listen with 8R settings or compare and settle down on one you prefer.
  • Page 21: Identification Of Controls

    IDENTIFICATION OF CONTROLS Rear Panel Illustration POWER SOCKET • Connect to AC input. 2. POWER SWITCH • ON/OFF Switch. FACTORY RESET/ Wi-Fi RESET BUTTON • Push and hold the button for 5 seconds to restore to factory settings. • If Wi-Fi is disconnected from A300, push once for A300 to search the Wi-Fi signal again. 4.
  • Page 22 RCA cable to connect to the source device’s left and right audio outputs. 12. IIS INPUT • Input for compatible NuPrime devices such as CD player or music server. Use HDMI cable to connect the source device. • Support the sampling rate to PCM 32bit/768kHz and DSD 256 data streams.
  • Page 23 14. OPTICAL INPUT • Connect to corresponding optical digital output of devices such as CD player, TV set-top- box, and digital music player. • Support sampling rate to PCM 192KHz including DoP format DSD64. 15. USB INPUT • Connect to USB audio output from a computer, tablet, music player or NAS. Support decoding PCM up to 384kHz &...
  • Page 24 Front Panel Illustration The 6.3mm stereo jack 2. The 3.5mm stereo jack Display 4. Function Control knob 5. Dual-band antenna www.nuprimeaudio.com www.nuprimeaudio.com...
  • Page 25: Display Screen

    DISPLAY SCREEN Source indicator. 2. Volume setting from 0dB to -99dB level. Wi-Fi or Bluetooth indicator. 4. EQ setting display 5. Amber LED lights up when A300 is in standby mode. www.nuprimeaudio.com www.nuprimeaudio.com...
  • Page 26: Display Menu

    DISPLAY MENU Source Selection Power on A300 supports Wi-Fi, Bluetooth, AUX, IIS, Optical, and USB inputs. NuPrime logo • Press the Function Control knob to toggle between the inputs. • Use the Remote Control to select any input directly. Standby Amber LED lights up when Function Control...
  • Page 27: Nuprime Eq Settings

    NUPRIME EQ SETTINGS NuPrime proprietary EQ settings allow the users to choose their listening experience according to music preferences and audio equipment matching. Despite its name, Loudness settings create warmth and impact for the listener instead of louder sound. Repeatedly pressing the Loudness button will cycle through the following EQ settings:...
  • Page 28 Setting the Remote Control Preset Keys 1 to 9 If any of these Presets have been programmed, they will show the name of a playlist. Setting the Preset Channels 1. On the App, select any playlist that you want to set on the Remote Control keys 1 to 9. 2.
  • Page 29 www.nuprimeaudio.com www.nuprimeaudio.com...
  • Page 30: Specifications

    SPECIFICATIONS Amplifier • Power: 150W @ 8 ohms; 200W @ 4 ohms (both channels driven) • THD: • <0.02% (AUX IN, 1W, @ 8 & 4 ohms) • <0.01% (OPT IN, 1W, @ 8 & 4 ohms) • Signal-to-Noise Ratio: >95 dB (Digital input, 10W out @ 8 ohms) •...
  • Page 31 • Package Dimensions (W x H x D): 440 x 100 x 340 mm • Shipping Weight: 5 kg (11 lbs.) *Omnia A300 is in the process of certification for MQA and AirPlay 2 when this manual was written. When available, an over-the-air automatic firmware update is required to enable these two features.
  • Page 32: Nuprime's Limited Warranty And Limitation Of Liabilities

    If a hardware defect exists and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, NuPrime will (1) repair the hardware defect at no charge, using new or refurbished replacement parts, (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product, or (3) refund the purchase price of the product.
  • Page 33 When a refund is given, your product becomes NuPrime's property. OBTAINING WARRANTY SERVICE If you purchased the product in the U.S., deliver the product, at your expense, to any NuPrime Service Center located in the U.S. If you purchased the product outside of the U.S., deliver the product to any NuPrime Authorized Importer in the country where you purchased the product.
  • Page 34 NuPrime serial number has been removed or defaced. Important: Do not open the hardware product. Opening the hardware product may cause damage that is not covered by this warranty. Only NuPrime or a NASP should perform service on this hardware product.
  • Page 35 NuPrime products, and any failure to maintain the confidentiality of data stored on the product. NuPrime specifically does not represent that it will be able to repair any product under this warranty or make a product exchange without risk to or loss of programs or data.
