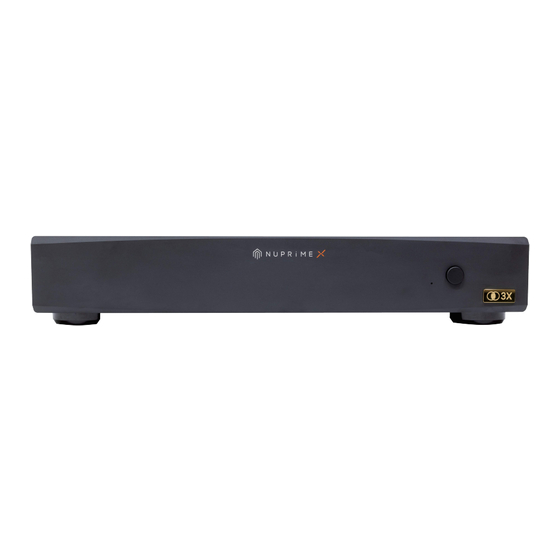

The Fusion Series power amplifiers seamlessly transition between the
Fusion Series
nuanced details of stereo music and the high-energy dynamics of
blockbuster movies, eliminating the need for compromise or
separate systems for audiophiles. Capable of delivering 200W at 8Ω
and 400W at 4Ω, the amplifier can power speakers with an impedance
as low as 3 ohms and can briefly sustain loads down to 2 ohms.
Advertisement
Related Manuals for NuPrime Fusion Series
Summary of Contents for NuPrime Fusion Series

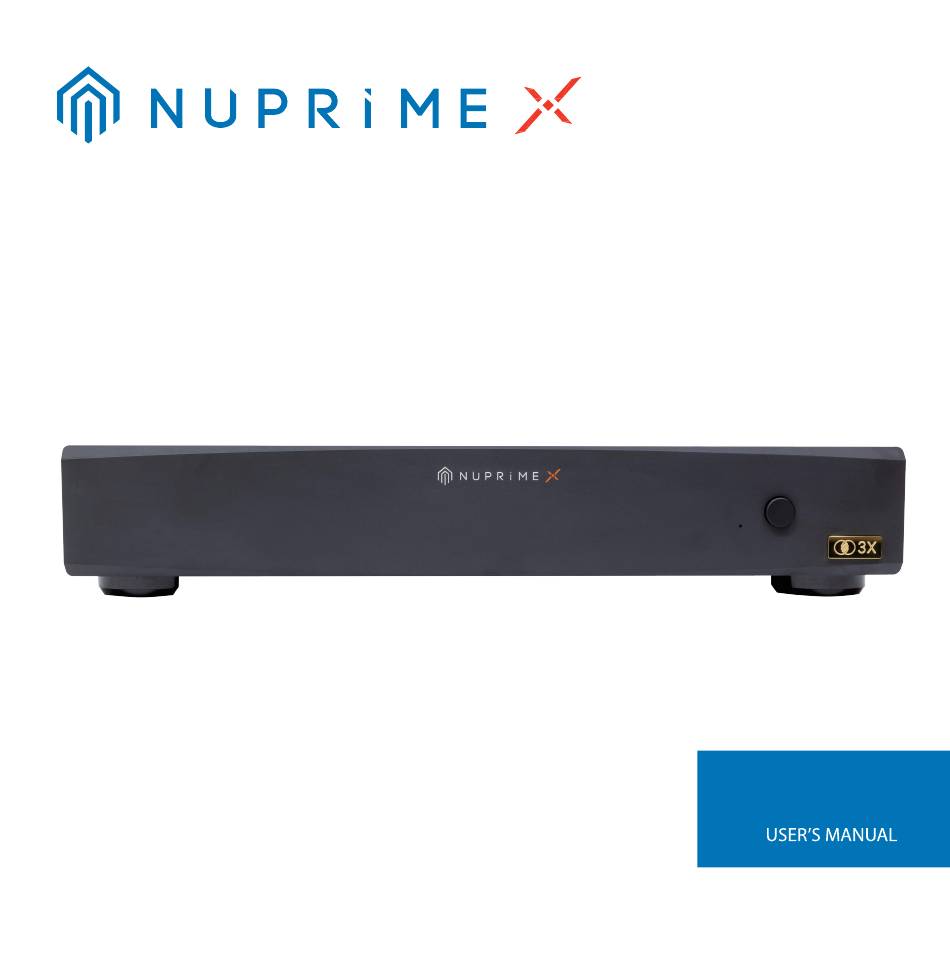

- Page 1 The Fusion Series power amplifiers seamlessly transition between the Fusion Series nuanced details of stereo music and the high-energy dynamics of blockbuster movies, eliminating the need for compromise or separate systems for audiophiles. Capable of delivering 200W at 8Ω and 400W at 4Ω, the amplifier can power speakers with an impedance...
- Page 2 FCC Notice - Declaration of Conformity Information ..............2 EU Declaration of Conformity ....................... 3 Safety Instructions ......................... 4 Fusion Series ..........................7 Features ............................8 Specifications .................................................. . 10 Fusion-3X Front Panel .............12 NuPrime’s Limited Warranty and Limitation of Liabilities www.nuprimeaudio.com...
- Page 3 FCC Notice - Declaration of Conformity Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 Hereby, NuPrime Audio, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC. The manufacturer of this product is NuPrime Audio, Inc., 1712 Pioneer Ave. Ste 1817, Cheyenne, Wyoming 82001, USA.
- Page 5 Safety Instructions There are two categories of Safety Instructions included in this manual: • Product Warnings, (i.e., what must never be done to assure avoiding those hazards that • could cause bodily injury or property damage); and • User Directions (i.e., what must always be done to assure the safe use of your device). The Safety Instructions contained in this manual have been categorized in accordance with the seriousness of the potential hazards through the use of Signal Words.
- Page 6 WARNING: Never attempt to disassemble, repair or make any modification to your device. Disassembly, modification or any attempt at repair could cause bodily injury or property damage, as well as damage to the device itself. WARNING: Your device is not a toy. Never allow children to play with your device. Misuse, rough or improper handling of your device by children could result in serious bodily injury for any of the enumerated safety warnings in this manual.
- Page 7 Keep the component away from radiators, heat registers, stoves, or any other appliance that produces heat. The unit must be connected to a power supply only of the type and voltage speci ed on the rear panel. Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent.
- Page 8 Fusion Series The revolutionary Fusion series amplifiers deliver the ultimate audio experience for discerning audiophiles who crave both the nuanced fidelity of stereo music and the explosive power and speed demanded by cinematic experiences. At the heart of this groundbreaking amplifier lies a unique integration of power supply and Class-D amplifier circuit, seamlessly blending the precision and clarity essential for stereo music playback with the...
- Page 9 Features The Fusion amplifiers work at frequencies over 700KHz. This innovation cuts down the MOSFET's temperature by 30%, conserves energy, and maintains a cool operation even at full throttle, ensuring consistent sound quality. Fusion Class-D module delivers unparalleled accuracy and minimal distortion (measured at 0.004% @ 5W). It features a dedicated power supply for each channel, complete with six 2200uF capacitors and a 15A-grade high-frequency filter, effectively reducing power noise and channel crosstalk.
- Page 10 Make sure that the AC Voltage selector switch at the rear of the unit is switched to the appropriate voltage for your country. All Fusion Series are shipped with the switch set to 230V AC in order to prevent accidental damage.
- Page 11 Fusion-3X Front Panel Power Switch Mono Rear Panel Analog RCA or XLR Speakers Preampli er or CD/DVD/BD player Input Switch Mute Switch www.nuprimeaudio.com...
- Page 12 Fusion-4X Front Panel Power Switch Rear Panel Mono Analog RCA or XLR Speakers Mute Switch Preampli er or CD/DVD/BD player Input Switch www.nuprimeaudio.com...
- Page 13 If a hardware defect exists and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, NuPrime will (1) repair the hardware defect at no charge, using new or refurbished replacement parts, (2) exchange the product with a product that is new or which has been manufactured from new or serviceable used parts and is at least functionally equivalent to the original product, or (3) refund the purchase price of the product.
- Page 14 When a refund is given, your product becomes NuPrime's property. OBTAINING WARRANTY SERVICE If you purchased the product in the U.S., deliver the product, at your expense, to any NuPrime Service Center located in the U.S. If you purchased the product outside of the U.S., deliver the product to any NuPrime Authorized Importer in the country where you purchased the product.
- Page 15 www.nuprimeaudio.com...
- Page 16 www.nuprimeaudio.com...
