Bellman & Symfon BE1520 User Manual

User manual BE1520
Learn more about how to use the
Visit bridge.
BRIDGE

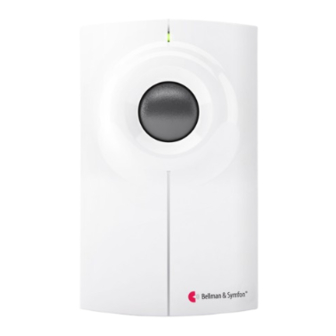

The Visit Bridge
Art. no. BE1520

Introduction

The Visit system consists of a number of radio transmitters and receivers. The transmitters detect different
events in the surrounding area and transmit a radio signal to the receivers. The receivers pick up this signal
and provide indications using light, sound and/or vibration.
The transmitter determines what type of light, sound or vibration should be displayed so that the reason for
the indication is evident. Read through the entire user manual first and then start to install the system.
This is how the Visit Bridge works
The Visit Bridge conveys signals between the Bellman Visit System and the Bellman Visit 868 System.
With a Visit 868 Bridge, you can therefore use products from the old and new system side by side.

Getting started

Unpacking, installing and testing the unit
1. Open the battery cover (7). Connect the power supply unit to the socket (6), fit one back-up battery,
either a 6LR61 alkaline or 6F22 lithium type battery, and close the battery cover.
2. Press the Test Button (2). The Visit Bridge lights up the LED (1) to indicate that the unit is
transmitting a radio signal. The Visit and Bellman Visit receivers will indicate the Door Signal.
3. Mount the Visit Bridge on the wall either using the self-adhesive Velcro tape or suspended on the
wallmount bracket (8) on the screw supplied. If the Velcro tape is used, the wall on which the
transmitter is to be positioned can be cleaned using the enclosed wet wipe. The Visit Bridge can also
be placed on a level surface, e.g. a table, but you should avoid placing it on the floor.
Function
