Bellman & Symfon Visit BE1580 Manual

Visit alarm clock receiver
Hide thumbs Also See for Visit BE1580:
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

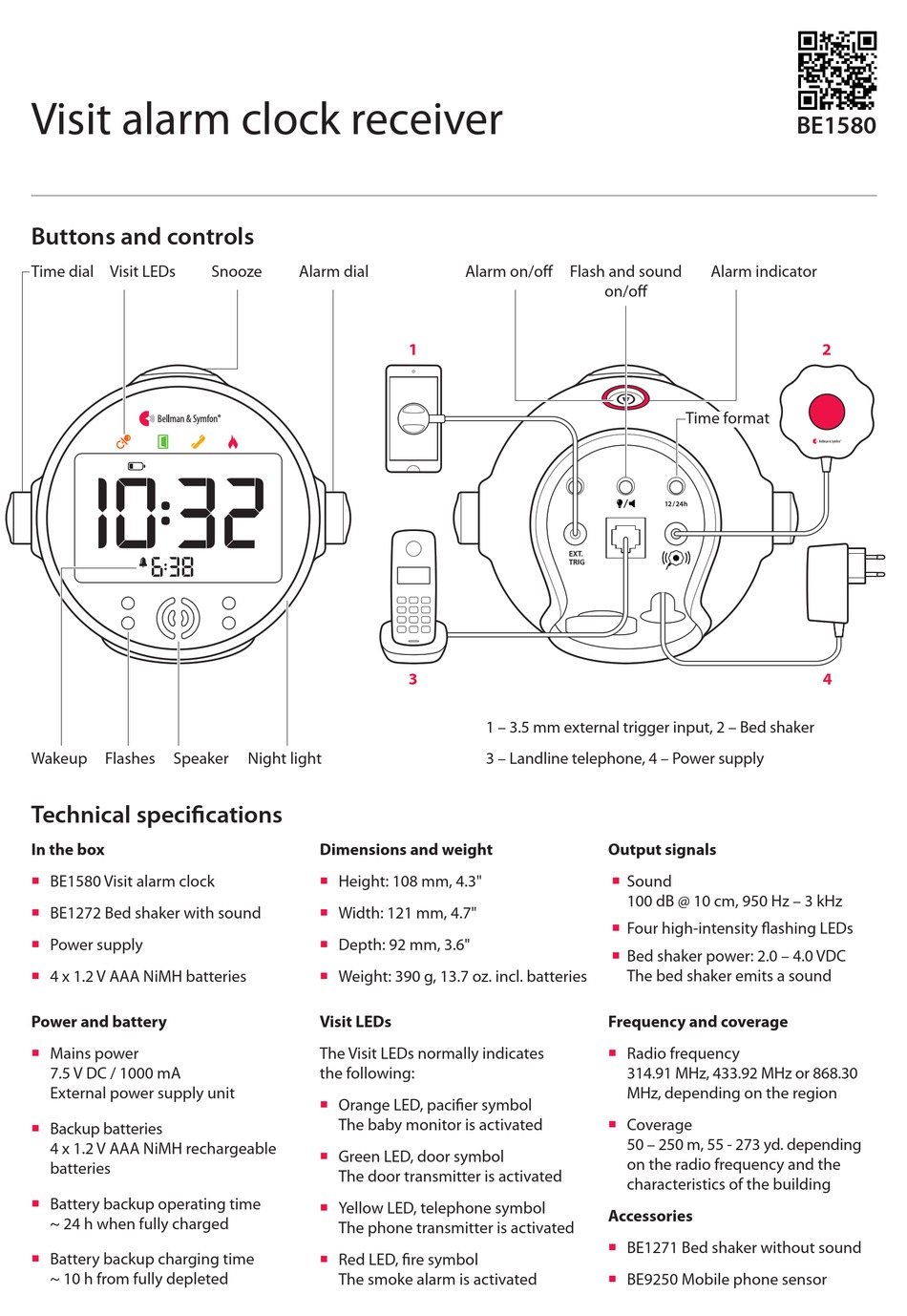

Visit alarm clock receiver

Buttons and controls

Time dial
Visit LEDs
Wakeup
Flashes
Speaker

Technical specifications

In the box
BE1580 Visit alarm clock
BE1272 Bed shaker with sound
Power supply
4 x 1.2 V AAA NiMH batteries
Power and battery
Mains power
7.5 V DC / 1000 mA
External power supply unit
Backup batteries
4 x 1.2 V AAA NiMH rechargeable
batteries
Battery backup operating time
~ 24 h when fully charged
Battery backup charging time
~ 10 h from fully depleted
Snooze
Alarm dial
Night light
Dimensions and weight
Height: 108 mm, 4.3"
Width: 121 mm, 4.7"
Depth: 92 mm, 3.6"
Weight: 390 g, 13.7 oz. incl. batteries
Visit LEDs
The Visit LEDs normally indicates
the following:
Orange LED, pacifier symbol
The baby monitor is activated
Green LED, door symbol
The door transmitter is activated
Yellow LED, telephone symbol
The phone transmitter is activated
Red LED, fire symbol
The smoke alarm is activated
Alarm on/off
Flash and sound
1
3
1 – 3.5 mm external trigger input, 2 – Bed shaker
3 – Landline telephone, 4 – Power supply
Alarm indicator
on/off
Time format
Output signals
Sound
100 dB @ 10 cm, 950 Hz – 3 kHz
Four high-intensity flashing LEDs
Bed shaker power: 2.0 – 4.0 VDC
The bed shaker emits a sound
Frequency and coverage
Radio frequency
314.91 MHz, 433.92 MHz or 868.30
MHz, depending on the region
Coverage
50 – 250 m, 55 - 273 yd. depending
on the radio frequency and the
characteristics of the building
Accessories
BE1271 Bed shaker without sound
BE9250 Mobile phone sensor
BE1580
2
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Visit BE1580 and is the answer not in the manual?

Questions and answers

Related Manuals for Bellman & Symfon Visit BE1580

Summary of Contents for Bellman & Symfon Visit BE1580

  • Page 1: Technical Specifications

    Visit alarm clock receiver BE1580 Buttons and controls Time dial Visit LEDs Snooze Alarm dial Alarm on/off Flash and sound Alarm indicator on/off Time format 1 – 3.5 mm external trigger input, 2 – Bed shaker Wakeup Flashes Speaker Night light 3 –...

  • Page 2: Getting Started

    Visit alarm clock receiver Getting started Pull the battery tab and connect the power supply to the alarm clock and the mains outlet. Connect the bed shaker, tuck it under the pillow or mattress, and place the alarm clock on the bedside table. To test the radio link you need a Visit transmitter.

  • Page 3: Setting The Time

    Visit alarm clock receiver Setting the time Setting the alarm Press the left dial and turn it to set hours. Press the right dial and turn it to set hours. To set minutes, press and turn the dial again. To set minutes, press and turn the dial again. Press once again to save your settings.

  • Page 4: Troubleshooting

    Visit alarm clock receiver Changing the radio key If your Visit system is activated for no reason, there is probably a nearby system that triggers yours. In order to avoid radio interference you need to change the radio key on all units. The radio key switches are located on the transmitters. Here is how you change the radio key: Open the transmitter cover and move any radio key switch to the up = on position to change the radio key.
