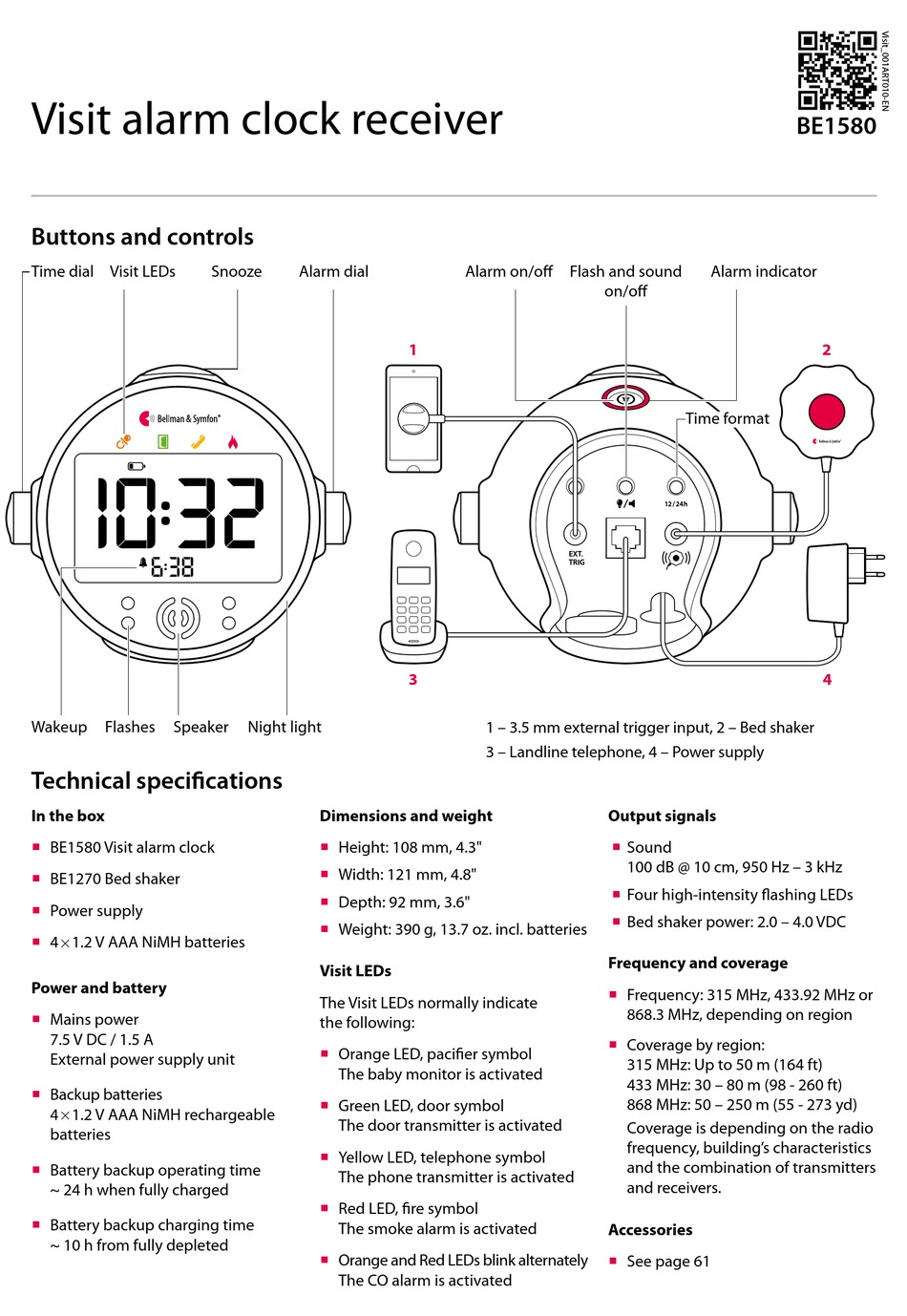

Visit alarm clock receiver
Buttons and controls
Time dial
Visit LEDs
Wakeup
Flashes
Speaker
Technical specifications
In the box
BE1580 Visit alarm clock
BE1270 Bed shaker
Power supply
4
1.2 V AAA NiMH batteries
Power and battery
Mains power
7.5 V DC / 1.5 A
External power supply unit
Backup batteries
4
1.2 V AAA NiMH rechargeable
batteries
Battery backup operating time
~ 24 h when fully charged
Battery backup charging time
~ 10 h from fully depleted
Snooze
Alarm dial
Night light
Dimensions and weight
Height: 108 mm, 4.3"
Width: 121 mm, 4.8"
Depth: 92 mm, 3.6"
Weight: 390 g, 13.7 oz. incl. batteries
Visit LEDs
The Visit LEDs normally indicate
the following:
Orange LED, pacifier symbol
The baby monitor is activated
Green LED, door symbol
The door transmitter is activated
Yellow LED, telephone symbol
The phone transmitter is activated
Red LED, fire symbol
The smoke alarm is activated
Orange and Red LEDs blink alternately
The CO alarm is activated
Alarm on/off
Flash and sound
1
3
1 – 3.5 mm external trigger input, 2 – Bed shaker
3 – Landline telephone, 4 – Power supply
Alarm indicator
on/off
Time format
Output signals
Sound
100 dB @ 10 cm, 950 Hz – 3 kHz
Four high-intensity flashing LEDs
Bed shaker power: 2.0 – 4.0 VDC
Frequency and coverage
Frequency: 315 MHz, 433.92 MHz or
868.3 MHz, depending on region
Coverage by region:
315 MHz: Up to 50 m (164 ft)
433 MHz: 30 – 80 m (98 - 260 ft)
868 MHz: 50 – 250 m (55 - 273 yd)
Coverage is depending on the radio
frequency, building's characteristics
and the combination of transmitters
and receivers.
Accessories
See page 61
BE1580
2
4
Advertisement
Table of Contents
Related Manuals for Bellman & Symfon BE1380
Summary of Contents for Bellman & Symfon BE1380
- Page 1 Visit alarm clock receiver BE1580 Buttons and controls Time dial Visit LEDs Snooze Alarm dial Alarm on/off Flash and sound Alarm indicator on/off Time format Wakeup Flashes Speaker Night light 1 – 3.5 mm external trigger input, 2 – Bed shaker 3 –...
- Page 2 Visit alarm clock receiver Getting started Pull the battery tab and connect the power supply to the alarm clock and the mains outlet. Connect the bed shaker, tuck it under the pillow or mattress, and place the alarm clock on the bedside table. To test the radio link you need a Visit transmitter.
- Page 3 Visit alarm clock receiver Setting the time Setting the alarm Press the left dial and turn it to set hours. Press the right dial and turn it to set hours. To set minutes, press and turn the dial again. To set minutes, press and turn the dial again. Press once again to save your settings.
- Page 4 Visit alarm clock receiver Changing the radio key If your Visit system is activated for no reason, there is probably a nearby system that triggers yours. In order to avoid radio interference, you need to change the radio key on all units. The radio key switches are located on the transmitters. Here is how you change the radio key: Open the transmitter cover and move any radio key switch to the up (on position) to change the radio key.
