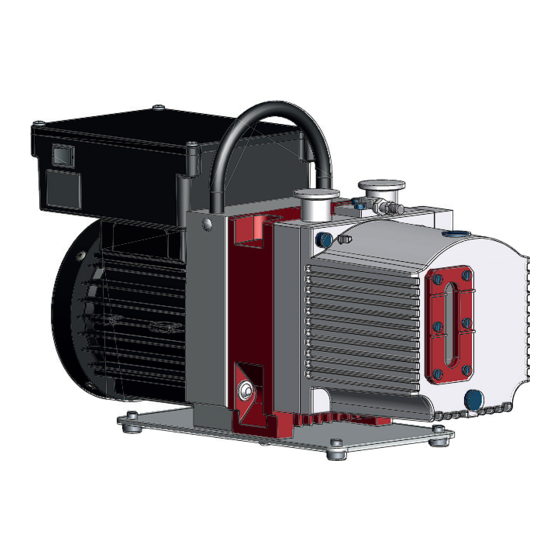

Summary of Contents for Pfeiffer DUO 3
- Page 1 OPERATING INSTRUCTIONS Translation of the Original DUO 3 ∣ DUO 3 M ∣ DUO 3 MC Rotary vane pump...
- Page 2 Dear Customer, Thank you for choosing a Pfeiffer Vacuum product. Your new rotary vane pump is designed to support you by its performance, its perfect operation and without interfering your individual application. The name Pfeiffer Vacuum stands for high-quality vacuum technology, a comprehensive and complete range of top-quality products and first-class service.
-
Page 3: Table Of Contents
Foreseeable improper use Responsibilities and warranty Owner requirements 2.10 Personnel qualification 2.10.1Ensuring personnel qualification 2.10.2Personnel qualification for maintenance and repair 2.10.3Advanced training with Pfeiffer Vacuum 2.11 Operator requirements Product description Function 3.1.1 Gas ballast 3.1.2 Vacuum safety valve 3.1.3 Operating fluid, oil... - Page 4 Recycling and disposal General disposal information Dispose of rotary vane pump Malfunctions Service solutions by Pfeiffer Vacuum Spare parts 12.1 Ordering spare part packages 12.2 Maintenance kit 1 – maintenance level 1 12.3 Radial shaft seal ring set – Maintenance level 2 12.4 Maintenance kit 2 –...
- Page 5 Conversion table: Pressure units Tbl. 12: Conversion table: Units for gas throughput Tbl. 13: Materials that make contact with the process media Tbl. 14: Technical data, Duo 3 Tbl. 15: Technical data, Duo 3 M Tbl. 16: Technical data, Duo 3 MC 5/64...
- Page 6 Fig. 15: Remove/fit rotary vane vacuum pump cap Fig. 16: Gas ballast valve Fig. 17: Gas ballast valve with inert gas connection Fig. 18: Dimensions Duo 3 Fig. 19: Dimensions Duo 3 M Fig. 20: Dimensions Duo 3 MC 6/64...
-
Page 7: About This Manual
● Maintenance and cleaning ● Storage or disposal The work described in this document is only permitted to be performed by persons with the appropriate technical qualifications (expert personnel) or who have received the relevant training from Pfeiffer Vac- uum. 1.3 Conventions 1.3.1 Instructions in the text... -
Page 8: Pictographs
This section describes all the stickers on the product along with their meanings. Rating plate (example) Rating plate of the rotary vane vacuum pump D-35614 Asslar Mod. Duo 3 Motor rating plate (not shown) PK D57x ... xxxxxxxxx P3 0.4 l TÜV Rheinland... -
Page 9: Abbreviations
About this manual Fig. 1: Position of sticker on product, using the M version as an example 1 Sticker for pre-set motor voltage Rating plate of the rotary vane vacuum pump 2 Operating fluid F4/D2, alternative to item 6: Operating fluid P3: Fill with operating fluid before commissioning Fill with operating fluid before commissioning Operating fluid F4/D2 (alternative):... -
Page 10: Safety
Safety 2 Safety 2.1 General safety information The following 4 risk levels and 1 information level are taken into account in this document. DANGER Immediately pending danger Indicates an immediately pending danger that will result in death or serious injury if not observed. ►... - Page 11 ► Install suitable touch protection if the vacuum pump is accessible to untrained persons. ► Allow the vacuum pump to cool down before carrying out any work. ► Contact Pfeiffer Vacuum for suitable touch protection in system solutions. Risks during operation...
- Page 12 ► Install suitable touch protection if the vacuum pump is accessible to untrained persons. ► Allow the vacuum pump to cool down before carrying out any work. ► Contact Pfeiffer Vacuum for suitable touch protection in system solutions. Risks during maintenance, decommissioning and malfunctions...
- Page 13 Safety WARNING Danger to life from electric shock in the event of a fault In the event of a fault, devices connected to the mains may be live. There is a danger to life from electric shock when making contact with live components. ►...
-
Page 14: Safety Precautions
Safety 2.3 Safety precautions Duty to provide information on potential dangers The product holder or user is obliged to make all operating personnel aware of dangers posed by this product. Every person who is involved in the installation, operation or maintenance of the product must read, understand and adhere to the safety-related parts of this document. -
Page 15: Proper Use
These oils oxidize heavily and thus lose their lubricating capacity. 2.8 Responsibilities and warranty Pfeiffer Vacuum shall assume no responsibilities and warranty if the operating company or a third party: ● disregards this document ● does not use the product for its intended purpose ●... -
Page 16: Personnel Qualification
Such training must ensure that individuals are capable of carrying out the required activi- ties and work steps safely and properly. 2.10.2 Personnel qualification for maintenance and repair Advanced training courses Pfeiffer Vacuum offers advanced training courses to maintenance levels 2 and 3. Adequately trained individuals are: 16/64... -
Page 17: 3Advanced Training With Pfeiffer Vacuum
─ Customer with Pfeiffer Vacuum service training ─ Pfeiffer Vacuum service technician 2.10.3 Advanced training with Pfeiffer Vacuum For optimal and trouble-free use of this product, Pfeiffer Vacuum offers a comprehensive range of courses and technical trainings. For more information, please contact Pfeiffer Vacuum technical training. -
Page 18: Product Description
Product description 3 Product description 3.1 Function The rotary vane pumps are two-stage, oil-sealed rotary positive displacement pumps for use in coarse and medium vacuum. The rotary vane vacuum pump is available in the standard version with a conven- tional seal, or as an M version with non-contact and wear-proof drive with magnetic coupling. The pump housing is hermetically sealed. -
Page 19: Operating Principle
3.3 Identifying the product ► To ensure clear identification of the product when communicating with Pfeiffer Vacuum, always keep all of the information on the rating plate to hand. ► Observe the motor-specific data on the motor rating plate attached separately. -
Page 20: Scope Of Delivery
Product description 3.5 Scope of delivery ● Rotary vane vacuum pump with motor ● Operating fluid ● Centering ring with cone sieve and O-ring for the vacuum flange ● Centering ring with nozzle and O-ring for the exhaust flange ● Locking caps for both connection flanges ●... -
Page 21: Transportation And Storage
► Do not stack the products. ► Wear protective equipment, e.g. safety shoes. Preparations for transport Pfeiffer Vacuum recommends keeping the transport packaging and original protective cov- Safe transport of the product 1. Observe the weight specified on the packaging. - Page 22 Transportation and Storage Safe storing vacuum pump 1. Fill the vacuum pump with operating fluid up to the upper edge of the sight glass. 2. Close both connection flanges and all openings on the vacuum pump. 3. Make sure that the gas ballast valve is closed. 4.
-
Page 23: Installation
– Quantity and type of the operating fluid can be found on the rating plate. 5.2 Connecting vacuum side NOTICE Property damage from contaminated gases Pumping gases that contain contamination damages the vacuum pump. ► Use suitable filters or separators from the Pfeiffer Vacuum range of accessories, to protect the vacuum pump. 23/64... -
Page 24: Connecting Exhaust Side
Installation Installation and operation of accessories Pfeiffer Vacuum offers a series of special, compatible accessories for its rotary vane pumps. ● You can find information and ordering options for approved accessories online. ● Described accessories are not included in the shipment. -
Page 25: Connecting To Mains Power Supply
► When dissipating gases, make sure that the exhaust pressure is at least 250 hPa higher than the intake pressure. Condensate separator Pfeiffer Vacuum recommends installing a condensate separator, with condensate drain at the lowest point of the exhaust line. Fig. 7:... -
Page 26: Fig. 8: Motor Circuit Diagram, Single-Phase Motor With Switch
Installation NOTICE Risk of property damage from excess voltage Incorrect or excessive mains voltage will destroy the motor. ► Always observe the motor rating plate specifications. ► Route the mains connection in accordance with locally applicable provisions. ► Always provide a suitable mains fuse to protect the motor and supply cable in the event of a fault. NOTICE Property damage from the voltage range being set incorrectly Recommissioning after longer downtimes of the vacuum pump or after changing the oil requires the... -
Page 27: Securing Vacuum Pump On Site
Installation 5.4.1 Securing vacuum pump on site Motor voltage [V] Frequency [Hz] Rated (nominal) cur- Recommended fuse, rent [A] slow-blow [A] 115 ± 10% 115 ± 10% 230 ± 10% 230 ± 10% 100 – 115 / 200 – 230 ±5% 2.6/1.1 100 –... -
Page 28: Filling Up Operating Fluid
► Do not allow tobacco products to come into contact with the operating fluid. NOTICE Risk of damage due to the use of non-approved operating fluid Product-specific performance data are not achieved. All liability and warranty claims against Pfeiffer Vacuum are also excluded. ► Only use approved operating fluids. - Page 29 – Only the operating fluid used during initial installation is permissible. – D2 is permitted as a replacement for D1. ► Contact Pfeiffer Vacuum if you want to use another type of operating fluid. Filling the operating fluid 1. Unscrew the filler screw.
-
Page 30: Operation
► Install suitable touch protection if the vacuum pump is accessible to untrained persons. ► Allow the vacuum pump to cool down before carrying out any work. ► Contact Pfeiffer Vacuum for suitable touch protection in system solutions. 30/64... -
Page 31: Operating Rotary Vane Pump With Gas Ballast
Operation NOTICE Risk of damage to the drive from increased motor current consumption At an intake pressure of approximately 300 hPa and under unfavorable operating conditions (such as for example exhaust side counterpressure), the power input exceeds the rated current. ►... -
Page 32: Gas Ballast Valve With Inert Gas Connection
► After switching off the vacuum pump, close the supply of inert gas at the gas ballast valve or by closing the on-site gas supply. If you optionally use inert gas in the process, Pfeiffer Vacuum recommends using the gas ballast valve with inert gas connection. Admission of inert gas dilutes the process gas and avoids condensation of vapors in the vacuum pump within certain limits. -
Page 33: Refilling Operating Fluid
Establishing inert gas supply 1. Select the type and quantity of the inert gas used according to the specific process. – Consult Pfeiffer Vacuum if necessary. 2. Set the inert gas pressure to max. 1500 hPa (absolute). 3. Make sure that the inert gas pressure is greater than the respective intake pressure. -
Page 34: Switching Off Vacuum Pump
► Shut off the intake line with an additional shut-off valve, after the vacuum pump is switched off during longer venting operations. Pfeiffer Vacuum rotary vane pumps have an integral vacuum safety valve on the intake side. The vac- uum safety valve automatically closes from a differential pressure of ≥250 hPa between the exhaust and intake sides, when the vacuum pump is switched off, and vents the vacuum pump. - Page 35 Operation Procedure 1. If required, switch the vacuum pump off in each pressure range. 2. Switch the mains switch off or securely disconnect the drive motor from the mains. – The vacuum safety valve closes automatically when the vacuum pump is switched off, pre- venting the backflow of gas and operating fluid into the intake line.
-
Page 36: Maintenance
► Dismantle the vacuum pump for inspection, away from the system if necessary. NOTICE Danger of property damage from improper maintenance Unprofessional work on the vacuum pump will lead to damage for which Pfeiffer Vacuum accepts no liability. ► We recommend taking advantage of our service training offering. -
Page 37: Maintenance Instructions For Magnetic Coupling
Maintenance Level 3 (revision). If the required intervals listed below are exceeded, or if mainte- nance work is carried out improperly, no warranty or liability claims are accepted on the part of Pfeiffer Vacuum. This also applies if original spare parts are not used. -
Page 38: Change The Operating Fluid
► Wear protective equipment. ► Use a suitable collection receptacle. Pfeiffer Vacuum recommends determining the precise service life of the operating fluid within the first maintenance frequency. The usable life may deviate from the reference value specified depending on thermic and chemical loads, and the accumulation of suspended particles and condensate in the oper- ating fluid. -
Page 39: Determining Degree Of Aging Of P3 Operating Fluid
Should process conditions change, you can convert to a different operating fluid type. Safety data sheets You can obtain the safety data sheets for operating fluids from Pfeiffer Vacuum on request, or from the Pfeiffer Vacuum Download Center. -
Page 40: Changing Operating Fluid
► Wear protective equipment. ► Use a suitable collection receptacle. Cleaning by changing the operating fluid Pfeiffer Vacuum recommends, in cases of heavy contamination with process residues, cleaning the inside of the vacuum pump with several operating fluid changes. Prerequisites ●... -
Page 41: Rinsing And Cleaning Rotary Vane Pump
– Tightening torque: 0.3 Nm 7.4.3 Rinsing and cleaning rotary vane pump Cleaning by changing the operating fluid Pfeiffer Vacuum recommends, in cases of heavy contamination with process residues, cleaning the inside of the vacuum pump with several operating fluid changes. 41/64... -
Page 42: Fig. 15: Remove/Fit Rotary Vane Vacuum Pump Cap
Maintenance Prerequisites ● Fresh operating fluid filled Required tools ● Allen key, WAF 5 ● Calibrated torque wrench (tightening factor ≤ 2.5) Required aids ● Collection receptacle (> 0.5 l) Changing operating fluid for cleaning 1. Operate the vacuum pump with the gas ballast open, until it is warm. 2. -
Page 43: Disassembling And Cleaning Gas Ballast Valve
Maintenance 7.5 Disassembling and cleaning gas ballast valve 7.5.1 Disassembling and cleaning gas ballast valve (standard version) The gas ballast valve is soiled if the vacuum pump takes in ambient air containing dust. Required tools ● Allen key, WAF 2 ● Snap ring pliers, J0 ●... -
Page 44: Dismantling And Cleaning Gas Ballast Valve With Inert Gas Connec
Maintenance 10. Determine the curve of the valve flap and place the valve flap in the screw cap with the curved side facing downwards. 11. Screw the screw cap and the valve housing hand tight. 12. Install the complete valve with o-ring in the vacuum pump. 13. -
Page 45: Changing The Operating Fluid Type
Maintenance 5. Remove the valve flap. 6. Dismantle the circlip using the circlip pliers. 7. Screw the spindle out of the valve housing. – Be careful with the O-rings. 8. Clean all parts. – Clean especially the bores in the valve housing. 9. -
Page 46: Decommissioning
9. Pack the vacuum pump together with a drying agent in a plastic bag, and seal the vacuum pump airtight if it is to be stored in rooms with damp or aggressive atmospheres. 10. For longer storage periods (> 2 years), Pfeiffer Vacuum recommends changing the operating fluid again prior to recommissioning. -
Page 47: Recycling And Disposal
– Fluoroelastomers (FKM) – Potentially contaminated components that come into contact with media 9.2 Dispose of rotary vane pump Pfeiffer Vacuum rotary vane pumps contain materials that you must recycle. 1. Fully drain the lubricant. 2. Dismantle the motor. 3. Decontaminate the components that come into contact with process gases. -
Page 48: Malfunctions
► Dismantle the vacuum pump for inspection, away from the system if necessary. NOTICE Danger of property damage from improper maintenance Unprofessional work on the vacuum pump will lead to damage for which Pfeiffer Vacuum accepts no liability. ► We recommend taking advantage of our service training offering. -
Page 49: Tbl. 7: Troubleshooting For Rotary Vane Pumps
● Operating fluid level too ● Top up the operating fluid. ● Leak in system ● Locate and eliminate the leak. ● Vacuum pump is dam- ● Contact Pfeiffer Vacuum Serv- aged ice. Pumping speed of vacuum ● The intake line is not suit- ●... -
Page 50: Service Solutions By Pfeiffer Vacuum
We are always focused on perfecting our core competence – servicing of vacuum components. Once you have purchased a product from Pfeiffer Vacuum, our service is far from over. This is often exactly where service begins. Obviously, in proven Pfeiffer Vacuum quality. - Page 51 ERKLÄRUNG KONTAMINIERUNG 7. Now send your product to your local Service Center. 8. You will receive an acknowledgment/quotation, from Pfeiffer Vac- uum. sales and delivery conditions repair and maintenance conditions for vacuum devices and com- ponents apply to all service orders.
-
Page 52: Spare Parts
Spare parts 12 Spare parts 12.1 Ordering spare part packages Ordering spare parts ► Have the part number to hand, along with other details from the rating plate as required. ► Install original spare parts only. Spare part package Pump version Order number Maintenance kit 1 –... -
Page 53: Set Of Vanes
Spare parts ● Set of seals ● Wear parts of the pumping system (including vane and springs) ● Wear parts of the vacuum safety valve ● Wear parts of the gas ballast valve 12.6 Set of vanes The set of vanes contains: ●... -
Page 54: Accessories
Accessories 13 Accessories View the range of accessories for rotary vane pumps on our website. 13.1 Accessory information Condensate separator Protects the pump from liquids from inlet line or backflow from exhaust line Oil mist filter Prevents emission of oil mist Oil return Transports separated operating fluid back from OME to rotary vane pump Dust separator Protects the pump against particles from the processes... -
Page 55: Tbl. 9: Accessories
Accessories Description Order no. Standard | M version MC version Gas ballast valve with solenoid valve, 24 V DC PK 194 343 -U PK 194 343 -U Blank flange, gas ballast valve PK 007 002 -T PK 007 002 -T Tbl. -
Page 56: Technical Data And Dimensions
Technical data and dimensions 14 Technical data and dimensions 14.1 General Basis for the technical data of Pfeiffer Vacuum rotary vane pumps: ● Specifications according to PNEUROP committee PN5 ● ISO 21360-1: 2016: “Vacuum technology - Standard methods for measuring vacuum-pump per- formance - Part 1: General description”... -
Page 57: Technical Data
(RSSR) Containment shell Synthetic Synthetic Tbl. 13: Materials that make contact with the process media 14.3 Technical data Type designation Duo 3 Duo 3 Duo 3 Duo 3 Duo 3 Part number PK D570 010 A0 PK D570 010 A0... - Page 58 10.5 kg 10.5 kg 10.5 kg Certification – – – – – Tbl. 14: Technical data, Duo 3 Type designation Duo 3 M Duo 3 Duo 3 Duo 3 Duo 3 Part number PK D571 010 A0 PK D571 010 A0...
- Page 59 11.5 kg 11.5 kg Certification – – – – – Tbl. 15: Technical data, Duo 3 M Type designation Duo 3 MC Part number PK D573 A10 C0 A Connection flange (in) DN 16 ISO-KF Connection flange (out) DN 16 ISO-KF Pumping speed at 50 Hz 2.5 m³/h...
-
Page 60: Dimensions
Operating fluid amount 0.4 l Weight 12.7 kg Certification CE, cTUVus certified according to UL / CSA 61010-1 Tbl. 16: Technical data, Duo 3 MC 14.4 Dimensions 14.4.1 Standard version 2x DN 16 ISO-KF 122.7 32.5 85.2 Fig. 18: Dimensions Duo 3... -
Page 61: Version
Technical data and dimensions 14.4.2 M version 31.7 DN 16 ISO-KF (2x) 122.7 33.5 86.2 Fig. 19: Dimensions Duo 3 M Dimensions in mm 14.4.3 MC version DN 16 ISO-KF (2x) 31.7 122.7 86.2 143.2 Fig. 20: Dimensions Duo 3 MC Dimensions in mm... -
Page 62: Ec Declaration Of Conformity
DIN EN ISO 2151:2009 ISO 21360-2:2020 DIN EN IEC 63000:2019 The authorized representative for the compilation of technical documents is Dr. Adrian Wirth, Pfeiffer Vacuum GmbH, Berliner Straße 43, 35614 Asslar, Germany. Signature: Pfeiffer Vacuum GmbH Berliner Straße 43 35614 Asslar Germany (Daniel Sälzer) -
Page 63: Declaration Of Conformity
EN ISO 2151:2:2008 ISO 21360-2:2020 EN IEC 63000:2018 The manufacturer's authorized representative in the United Kingdom and the authorized agent for compiling the technical documentation is Pfeiffer Vacuum Ltd, 16 Plover Close, In- terchange Park, MK169PS Newport Pagnell. Signature: Pfeiffer Vacuum GmbH Berliner Straße 43...
