Liberty Pumps Pro680 Series Installation Manual
Duplex sewage/grinder systems
Hide thumbs
Also See for Pro680 Series:
- Installation manual (13 pages) ,
- Installation manual (8 pages) ,
- Installation manual (32 pages)
Advertisement
Quick Links
Installation Manual
Duplex Sewage/Grinder Systems
Models

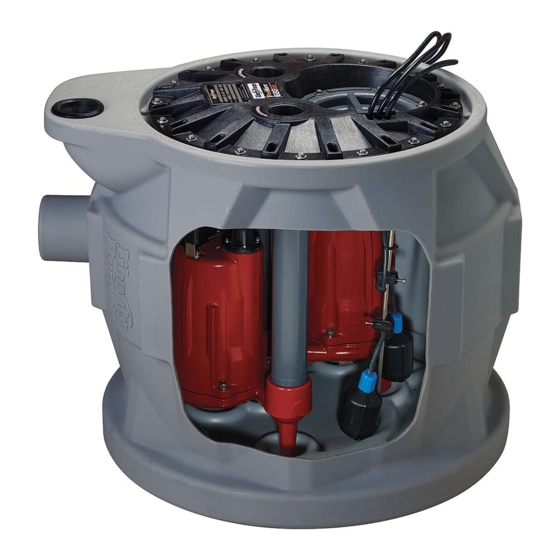

Pro680-Series Sewage System
ProVore®680-Series Grinder System
Vertical Discharge
28"D x 24"H
46 Gallon System
Outdoor Installation ONLY with ARC18 Access Riser
Installed in Conjunction with X8-D Extension
IMPORTANT: All Liberty Pumps systems are supplied with their own separate
Installation/Operation/Maintenance manuals. Ensure receipt of these
manuals, and that they are read and understood prior to installation. For
questions, call Liberty Pumps customer service at 1-800-543-2550.
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 1-800-543-2550
fax: 1-585-494-1839
www.LibertyPumps.com
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 1-800-543-2550.
Retain dated sales receipt for warranty.
Copyright © Liberty Pumps, Inc. 2023 All rights reserved.
1100-Series Sewage System
ProVore®1100-Series Grinder System
Vertical Discharge
30"D x 36"H
110 Gallon System
Indoor Installation Only
Installer: Manual must remain with owner or
system operator/maintainer.
System:
Model(s):
Serial(s):
Mfg Date:
Install Date:
8337000L
Record information:
Advertisement
Related Manuals for Liberty Pumps Pro680 Series
Summary of Contents for Liberty Pumps Pro680 Series
- Page 1 Indoor Installation Only Installed in Conjunction with X8-D Extension Installer: Manual must remain with owner or IMPORTANT: All Liberty Pumps systems are supplied with their own separate system operator/maintainer. Installation/Operation/Maintenance manuals. Ensure receipt of these manuals, and that they are read and understood prior to installation. For Record information: questions, call Liberty Pumps customer service at 1-800-543-2550.
- Page 2 Some products may have internal capacitors that could cause shock. Avoid contact with plug ends after removing from energy source. 2 | EN Copyright © Liberty Pumps, Inc. 2023 All rights reserved. 8337000L...
- Page 3 Their unique cutter system grinds difficult wastes transmit illness or disease upon contact with skin and other and then pumps it through a 1-1/2” or 2” discharge line. tissues. 8337000L Copyright © Liberty Pumps, Inc. 2023 All rights reserved. 3 | EN...
- Page 4 The ProVore 680-Series system is supplied with a 2” discharge outlet. Do not increase this pipe size above 2” as adequate flow rates may not be achieved for proper operation. Discharge sizes may be reduced to 1-1/2” or 1-1/4”. Consult Liberty Pumps for 9.25” proper pipe and system sizing.
- Page 5 Do not use sand or native soil as backfill. Make the inlet connection as required for particular basin. Figure 2. Typical Indoor Installation (Pro680 shown) 8337000L Copyright © Liberty Pumps, Inc. 2023 All rights reserved. 5 | EN...
- Page 6 Field adjusting floats may cause improper activation or turn-off of the pump and optional alarm. Rod Position Alarm Float Pump Control Float 3.5” 3” 6 | EN Copyright © Liberty Pumps, Inc. 2023 All rights reserved. 8337000L...
- Page 7 If the top of the basin is below grade, basin extension X8-D is connected to a controller that available from Liberty Pumps to increase the height by 8”. Access monitors the operation of the Riser ARC18 is also available to increase the maximum burial pumps.
- Page 8 Operation Liberty Pumps, Inc. shall not be liable for any loss, damage, or expenses resulting from installation or use of its products, or for indirect, incidental, and consequential damages, including costs of Refer to the Startup and Operation sections provided in the removal, reinstallation or transportation.
