Installation Manual
Simplex Sewage/Grinder Systems
Models

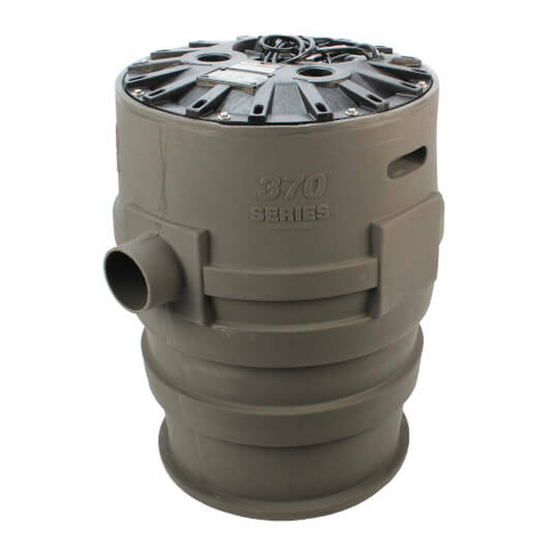

Pro370-Series
Sewage System
Vertical Discharge
21"D x 30"H
41 Gallon System
Indoor and Outdoor*
Installation
* with optional Access Riser
IMPORTANT: All Liberty Pumps products are supplied with their own
separate Installation/Operation/Maintenance manuals. Ensure receipt of
these manuals, and that they are read and understood prior to installation.
For questions, call Liberty Pumps customer service at 1-800-543-2550.
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 1-800-543-2550
fax: 1-585-494-1839
www.LibertyPumps.com
Pro380-Series
Sewage System
ProVore®380-Series
Grinder System
Vertical Discharge
24"D x 24"H
41 Gallon System
Indoor and Outdoor*
Installation
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 1-800-543-2550.
Retain dated sales receipt for warranty.
Copyright © Liberty Pumps, Inc. 2023 All rights reserved.
Pro380-SD-Series
Sewage System
ProVore®380-SD-
Series Grinder System
Side Discharge
24"D x 24"H
41 Gallon System
Indoor and Outdoor
Installation
Installer: Manual must remain with owner or
system operator/maintainer.
Record information from system nameplate:
System:
Model(s):
Serial(s):
Mfg Date:
Install Date:
7225000K
700-Series
Sewage System
ProVore®700-Series
Grinder System
Vertical Discharge
24"D x 36"H
70 Gallon System
Indoor Installation Only
