Liberty Pumps Pro680 Series Installation Manual

Liberty Pumps Pro680 Series Installation Manual

Duplex sewage/grinder systems
Hide thumbs Also See for Pro680 Series:

Advertisement

Quick Links

Duplex Sewage/Grinder Systems
Models

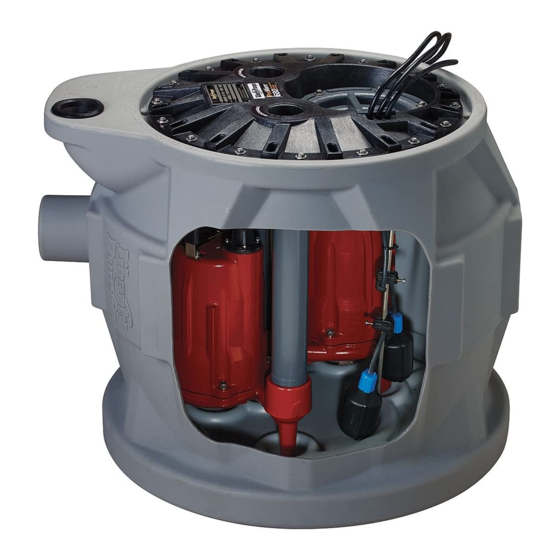

Pro680-Series Sewage System
ProVore®680-Series Grinder System
Vertical Discharge
28"D x 24"H
46 Gallon System
Indoor Installation Only
IMPORTANT: All Liberty Pumps products are supplied with their own
separate Installation/Operation/Maintenance manuals. Ensure receipt of
these manuals, and that they are read and understood prior to installation.
For questions, call Liberty Pumps customer service at 800-543-2550.
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 800-543-2550
fax: 585-494-1839
www.LibertyPumps.com
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 800-543-2550.
Retain dated sales receipt for warranty.
Copyright © Liberty Pumps, Inc. 2020 All rights reserved.
1100-Series Sewage System
ProVore®1100-Series Grinder System
Vertical Discharge
30"D x 36"H
110 Gallon System
Indoor Installation Only
Installer: Manual must remain with owner or
system operator/maintainer.
Prior to installation, record information
from pump nameplate for future reference:
System:
Model(s):
Serial(s):
Mfg Date:
Install Date:
8337000H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro680 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Liberty Pumps Pro680 Series

  • Page 1 Indoor Installation Only Indoor Installation Only Installer: Manual must remain with owner or IMPORTANT: All Liberty Pumps products are supplied with their own system operator/maintainer. separate Installation/Operation/Maintenance manuals. Ensure receipt of these manuals, and that they are read and understood prior to installation.
  • Page 2 Failure to do so could result in serious injury  Some products may have internal capacitors that could cause or death. shock. Avoid contact with plug ends after removing from energy source. 2 | EN Copyright © Liberty Pumps, Inc. 2020 All rights reserved. 8337000H...
  • Page 3 Sump and sewage pumps often handle materials that can transmit illness or disease upon contact with skin and other tissues. 8337000H Copyright © Liberty Pumps, Inc. 2020 All rights reserved. 3 | EN...
  • Page 4 4” inlet hub rates may not be achieved for proper operation. Discharge sizes with 4” seal may be reduced to 1-1/2” or 1-1/4”. Consult Liberty Pumps for proper pipe and system sizing. Pro-Series systems come with an integral control system with alarm and QuickTree®...
  • Page 5  680-Series systems are not suitable for outdoor applications. own standpipe. The vent size must be in accordance with applicable codes, but not less than the discharge size. 8337000H Copyright © Liberty Pumps, Inc. 2020 All rights reserved. 5 | EN...
  • Page 6 Pump Control Float to test functionality. The controller will also identify a non-functioning component. For complete operation, refer to the 3-1/2” user manual for the controller. 3” 6 | EN Copyright © Liberty Pumps, Inc. 2020 All rights reserved. 8337000H...
  • Page 7 Maintenance and Troubleshooting If the top of the basin is below grade, Basin Extension X8-D is available from Liberty Pumps to increase the height by 8”. The maximum burial depth is 16” with respect to the top of the basin.
  • Page 8 Liberty Pumps, Inc. shall not be liable for any loss, damage, or expenses resulting from installation or use of its products, or for indirect, incidental, and consequential damages, including costs of removal, reinstallation or transportation.
