Installation Manual
®
ProVore
PRG-Series
Models
PRG101-Series
115 Volts
PRG102-Series
230 Volts
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 800-543-2550
fax: 585-494-1839
www.LibertyPumps.com

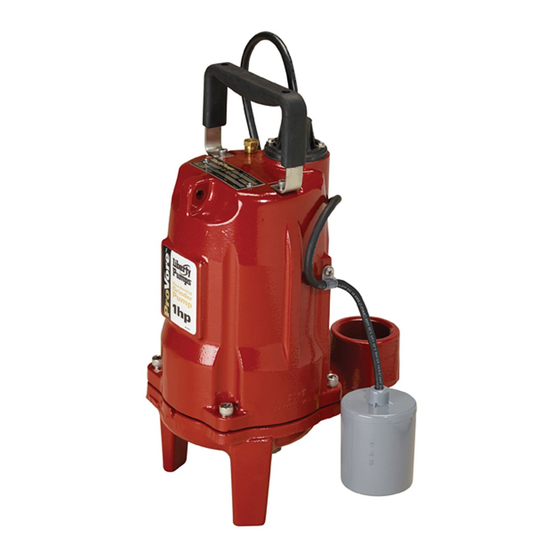

1 HP Residential Grinder Pumps
Installer: Manual must
remain with owner/operator.
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 800-543-2550.
Retain dated sales receipt for warranty.
Copyright © Liberty Pumps, Inc. 2020 All rights reserved.
Prior to installation, record information
from pump nameplate for future reference:
Model:
Serial:
Mfg Date:
Install Date:
2399000D
