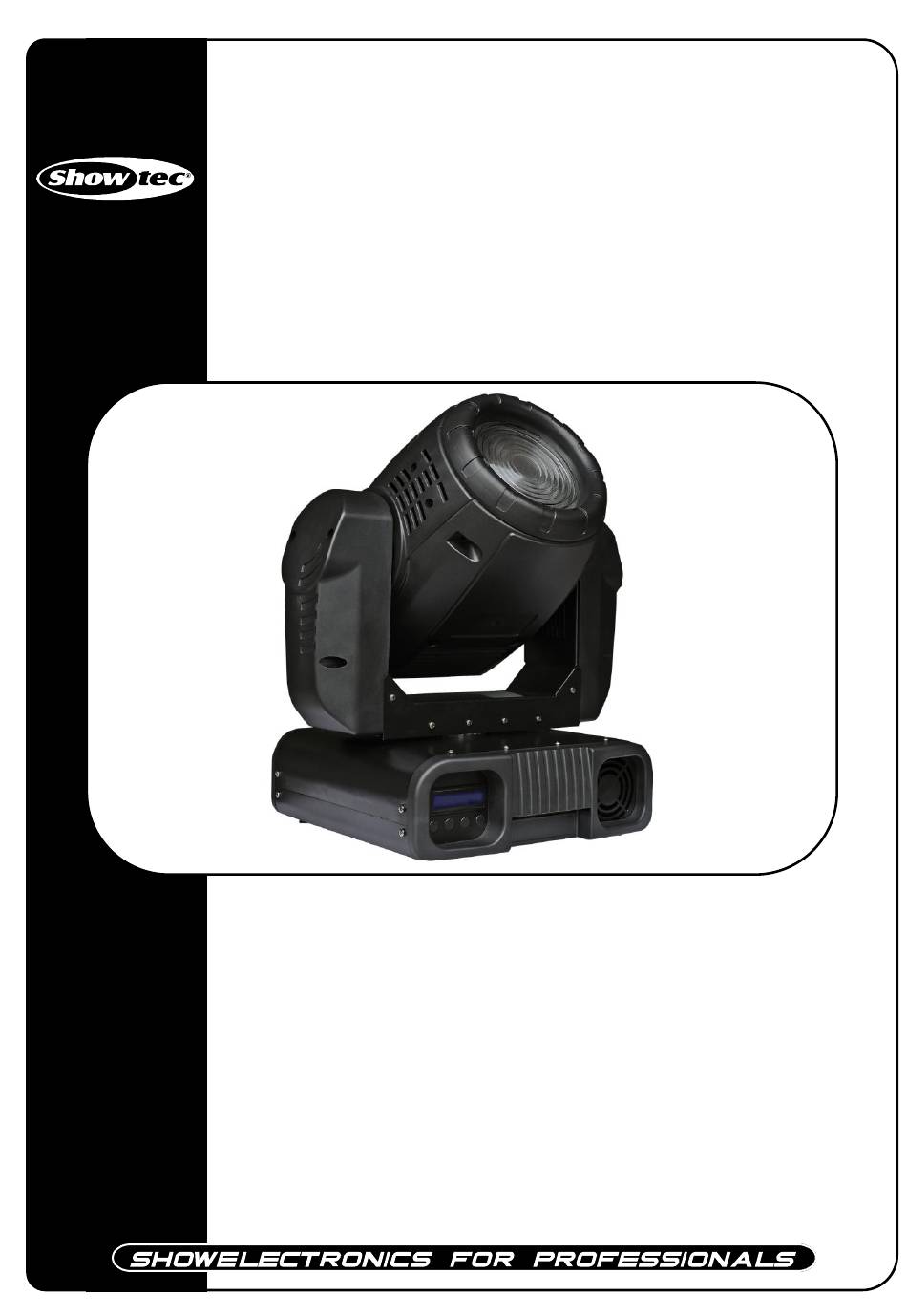

- Page 1 Phantom 250 CMY Wash ORDERCODE 40172 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Phantom brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Phantom Product Guide ™ Warning.................…...……………..…………………………….………… Safety-instructions……………………………………………………………………………………………………… Operating Determinations.…………………………………………………………………………………………… Rigging.…………………………………………………………………………………………………………………… Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….………… Features and Overview ………………………………...….……………….………….……….……….…………… Backside…………………………………………………...…...….……………….…………………...….…………… Installation................…...……………………………………………………. Installing the Lamp ............…………………………………………………….…….. Lamp Adjustment.…............………………………………………….………..……… Set Up and Operation..............……..…………………………………………… Control Modes…………………………………………………………………………………………………….……. One Phantom (Built-in Programs)…..…………………………….……………….…………..…..………….. One Phantom (Sound Control)…………………………………………..…………………….……..………. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Phantom 250 CMY Wash with IEC powercable 1,5m • User manual WARNING... - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Repairs, servicing and electric connection must be carried out by a qualified technician. WARRANTY: Till one year after date of purchase. CAUTION ! EYEDAMAGES !. Avoid looking directly into the light source. (meant especially for epileptics) ! OPERATING DETERMINATIONS This device is not designed for permanent operation. - Page 7 Mounting a clamp to the underside of the Phantom moving head Eye for safety-cable Clamp Improper installation can cause serious damage to people and property ! Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable...
-
Page 8: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 9: Description
Description of the device Features The Showtec Phantom is a moving-head with high output and great effects. • CMY colormix system • Pre programmed CMY macro effects • DMX-control via standard DMX-controller • User selectable Basic (9CH) or Advanced (13CH) operating modes •... -
Page 10: Backside
Backside Fig. 2 IEC power connector + Fuse 5A 250V 4) Built-in Microphone Blackout Footswitch DMX signal connector (IN) DMX signal connector (OUT) -
Page 11: Installation
Installation Installing the Lamp The Showtec Phantom uses the MSD 250 (ordercode 80920P / 80920O / 80933O / 82603 / 80935) reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 12: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Control Modes There are 4 modes: •... -
Page 13: Multiple Phantoms (Dmx Control)
Multiple Phantoms (DMX Control) 1. Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. Always use a safety cable. 3. Use a 3-p XLR cable to connect the Phantoms and other devices. 4. -
Page 14: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 15: Control Panel
Control Panel When the indicator light is on, means the Phantom is working Fig. 7 A. LCD Display D. Down Button B. [ENTER] Button E. Up Button C. [MODE] Button Control Mode The fixtures are individually addressed 001-512 on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. -
Page 16: Menu Overview
Menu Overview... -
Page 17: User Modes
User Modes DMX Mode: select DMX address 001-512 Auto Mode Master Mode: master mode sound control Master Mode: easy controller mode Slave Mode Navigating through the menu Use the Up-Down buttons to scroll through the menu; Press the ENTER button to select a desired menu function and press the MODE-ESC button to return to a previous menu. -
Page 18: Dmx Channels
DMX Protocol 13 Channels ( Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 - Vertical movement (Tilt) Push the slider, up in order to move head vertically (TILT). - Page 19 Channel 12 – Lamp ON OFF & Reset No function 10-19 Moving Blackout 20-99 No function 100-109 Reset 110-129 No function 130-145 Auto Program 1 146-161 Auto Program 2 162-177 Auto Program 3 178-193 Auto Program 4 194-209 Sound control 1 210-225 Sound control 2 226-241...
-
Page 20: Channels (Basic)
DMX Protocol 9 Channels ( Channel 1 - Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 - Vertical movement (Tilt) Push the slider, up in order to move head vertically (TILT). -
Page 21: Channels (Advanced)
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Phantom requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 22: Replacing The Fuse
Replacing a Fuse Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the fuse burns out, the product will not function whatsoever. If this happens, follow the directions below to do 1. Unplug the unit from electric power source. 2. - Page 23 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. Fixtures reset The controller is not connected. ·...
-
Page 24: Product Specifications
Signal output 3-pin XLR female Lamp lamp models*: Allowed Showtec NSD 250/2 (2000 hr) (ordercode 82603) Philips MSD 250 (3000 hr; 6700K) ordercode 80920P Osram HSD 250 (2000 hr; 6000K) ordercode 80926O Osram HSD 250/78 (1000 hr; 7800K) (ordercode 80933O)
